STEERING
4252490-Rev A 7-15
7
13. Remove ball joint (16) and jam nut (17) from steering
cylinder (4).
14. Inspect ball joint. Replace as needed.
Installation Notes
• Install steering cylinder by reversing the order of
removal.
• Lubricate grease fitting with grease that meets or
exceeds NLGI Grade 2 LB specifications.
• Check hydraulic oil level. Add oil as needed.
• Start the machine and check cylinder operation.
Check for hydraulic leaks. Repair as necessary.

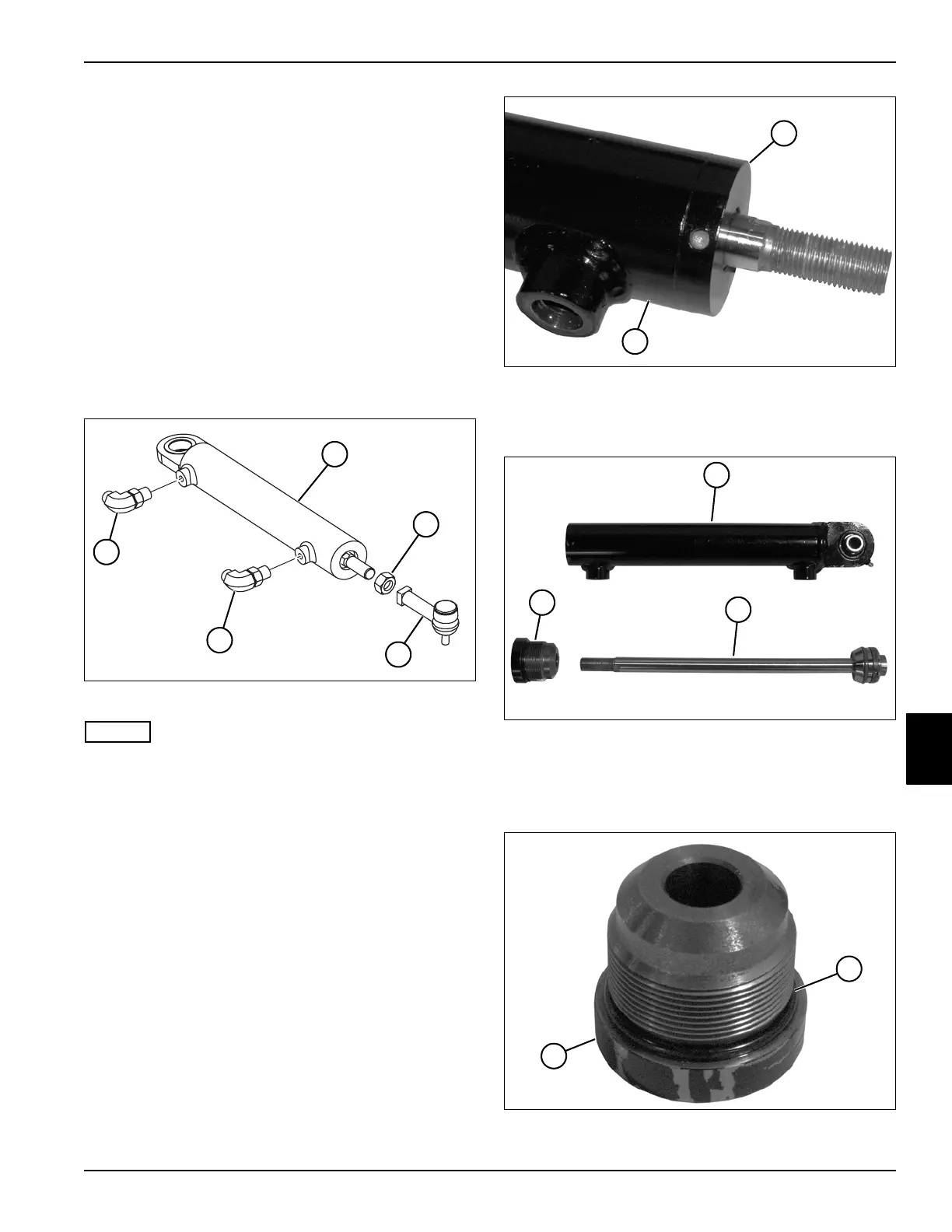

Disassembly, Inspection, and Assembly
See Figures 7-32 through 7-37.
Figure 7-32
NOTES
• Record the location and orientation of fittings before
removing to ensure correct installation.
• Record the number of turns required to remove the
ball joint to ensure correct installation.
1. Remove, inspect, and replace fittings (4 and 5) from
steering cylinder (1) as necessary.
2. Remove ball joint (3) and nut (2) from rod.
Figure 7-33
3. Use a spanner wrench to remove rod guide (6) from
barrel (7).
Figure 7-34
4. Remove rod guide (6) and rod (8) from barrel (7) as
an assembly.
5. Remove rod guide (6) from rod (8).
Figure 7-35
TN3706
1
2
4
3
5
TN3818
6
7
TN3820
7
8
6
TN3822
6
9
To Next Page
