8-30 4252490-Rev A
CUTTING UNITS
8

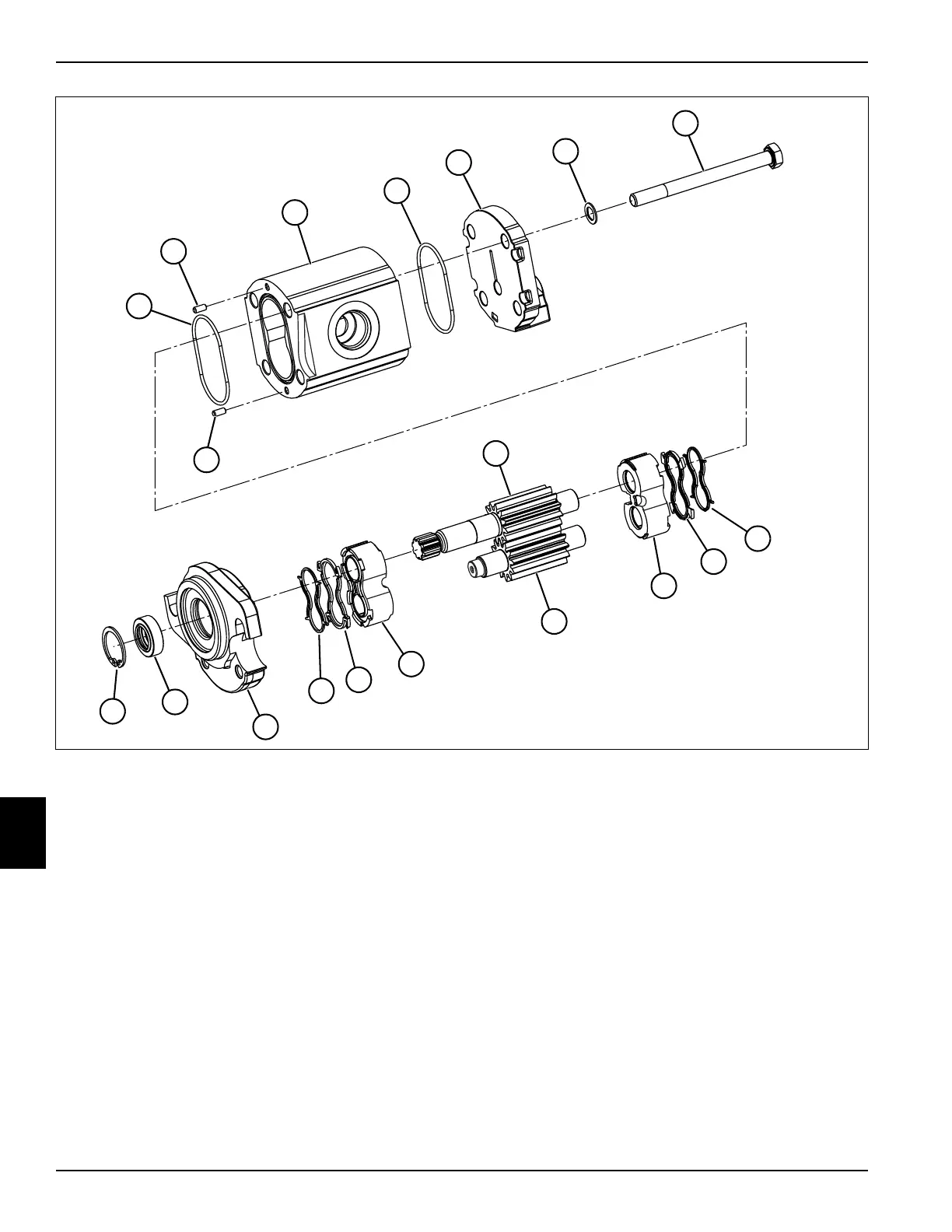

Figure 8-30
Disassembly Notes
• Do not disassemble reel motor for repair unless test
procedures indicate internal leakage.
• Never pry components apart. Use a soft-faced
hammer, and gently tap body and drive shaft to
separate reel motor body.
5 O-Ring (2) 10 Retaining Screw (4) 15 Driven Gear 20 Shaft Seal
6 Dowel Pin (2) 11 Drive Shaft 16 Thrust Plate 21 Snap Ring
7 Pump Housing 12 Anti-Extrusion Ring 17 Upper Seal
8 Rear Cover 13 Seal 18 Anti-Extrusion Ring
9 Washer (4) 14 Thrust Plate 19 Front Cover
TN3760
6
5
6
7
5
8
9
14
12
10
13
15
11
16
17
18
19
20
21
