Installation Notes
• Install the reel motor by reversing the order of
removal.
• Coat the reel motor shaft (4) and coupler (3) with
grease that meets or exceeds NLGI Grade 2 LB
specifications before installing reel motor (8).
• Tighten nuts (8) to 18 lb-ft (24 N·m).
• Make sure new O-rings are in place before installing
hoses on fittings.
• Replace hydraulic oil charge filter. (See “Hydraulic
Oil Charge Filter Assembly” on page 6-59.)
• Refill hydraulic tank. (Refer to “Parts and
Maintenance Manual” for correct oil specifications.)
• Start engine. Check hydraulic system for leaks.
Repair as necessary.
• Check hydraulic oil level and add if necessary.
Disassembly, Inspection, and Assembly
See Figures 8-29 through 8-31.

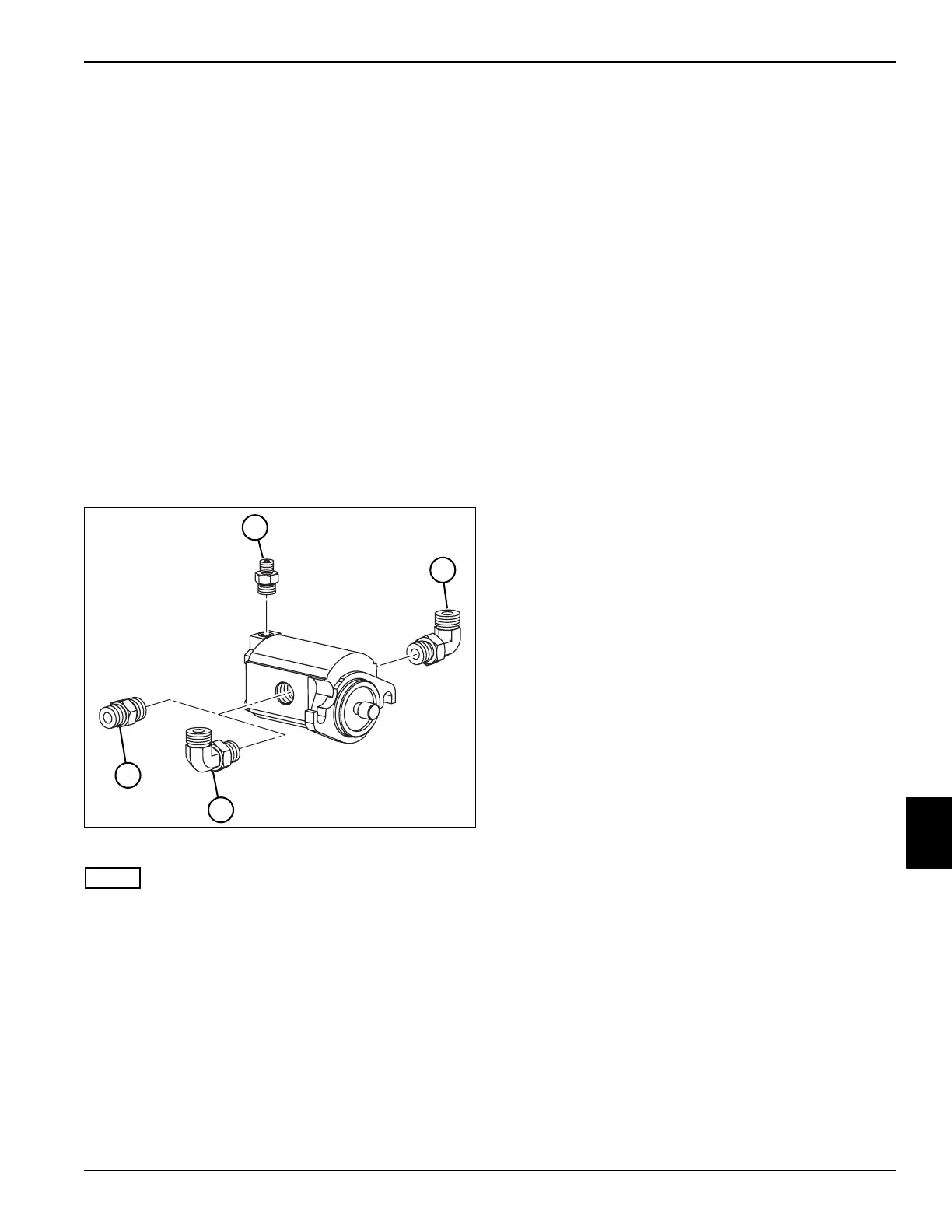

Figure 8-29
NOTE
Record the location and orientation of fittings before
removing to ensure correct installation.
1. Remove, inspect, and replace fitting (1) from case
drain port.
2. Remove, inspect, and replace fitting (2) from inlet
port.
3. For center cutting unit, remove, inspect, and replace
fitting (3) from outlet port. For front cutting units,
remove, inspect, and replace fitting (4) from outlet
port.
TN3812
1
2
4
3
