ACCESSORIES AND MISCELLANEOUS REPAIR
4252490-Rev A 9-21
9

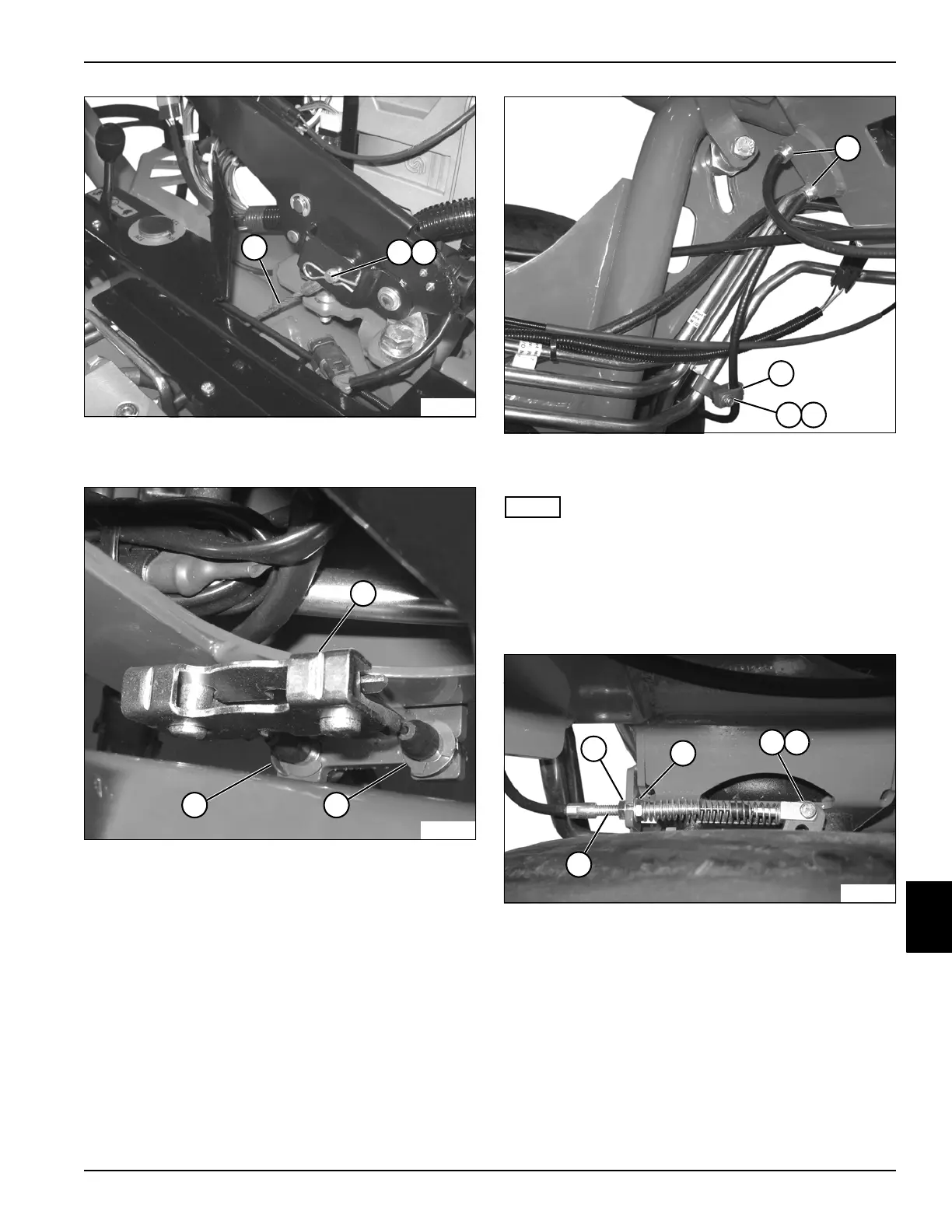

Figure 9-45
5. Remove pin (2), clip (3), and cable (1).
Figure 9-46
6. Remove two clips (5) and cable equalizer (4).
Figure 9-47
7. Remove nut (8), flat washer (9), and clamp (7).
NOTE
• Note cable routing to ensure correct installation.
• Note placement of cable ties to ensure correct
installation.
8. Disconnect two cables (6) from machine frame.
9. Remove all cable ties from cables (6).
Figure 9-48
10. Remove clip (11) and pin (12).
11. Loosen two lock nuts (10).
12. Remove cable (13).
13. Repeat steps 10 through 12 for left park brake cable.
Installation Notes
• Install park brake cables by reversing the order of
removal.
• Adjust park brake. (See “Park Brake Adjustment” on
page 9-6.)
TN3730
32
1
5 5
4
TN3875
6
7
98
TN3877
10
10
13
1211
TN3866
To Next Page
