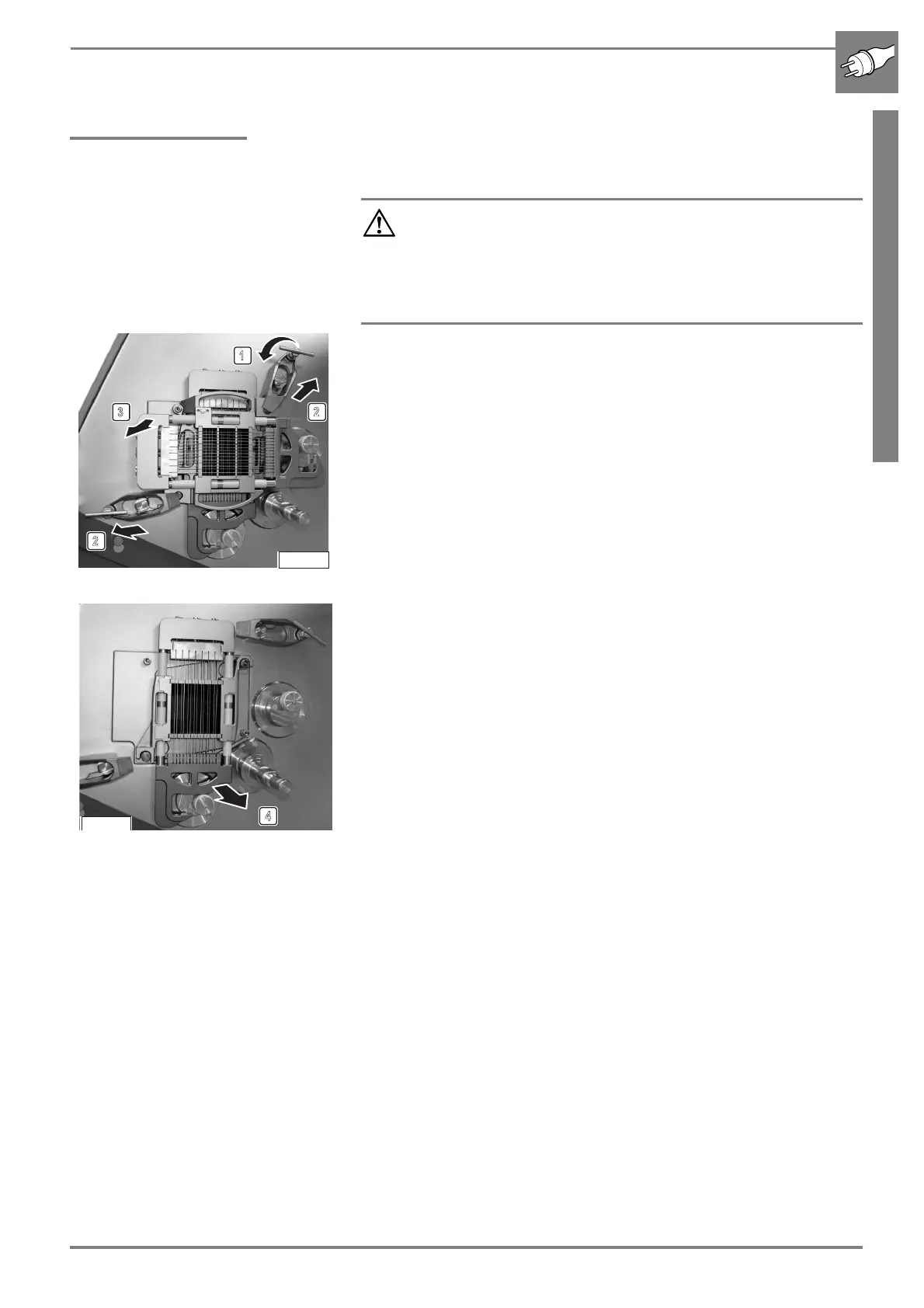

4.5 Dismantling the cutting unit
The cut-off knife must be removed before you dismantle the cutting unit.
b Loosen the T-handle on the clamping strap at the top right and bottom
left.
b Push the clamping straps back so that they release the grid.
b Remove the upper and lower grids from the retaining pins one after the
other and store them in a secure location.
Attention, there is a high risk of cutting yourself on the
knife!
Always wear the specified protective equipment when carrying
out any work in the open cutting chamber and when handling
the knife (☞ „Protective equipment“ on page 4).
Only store the dismantled knives at secured places.
