Changing grid side walls
64 11/2020 243343V03_EN

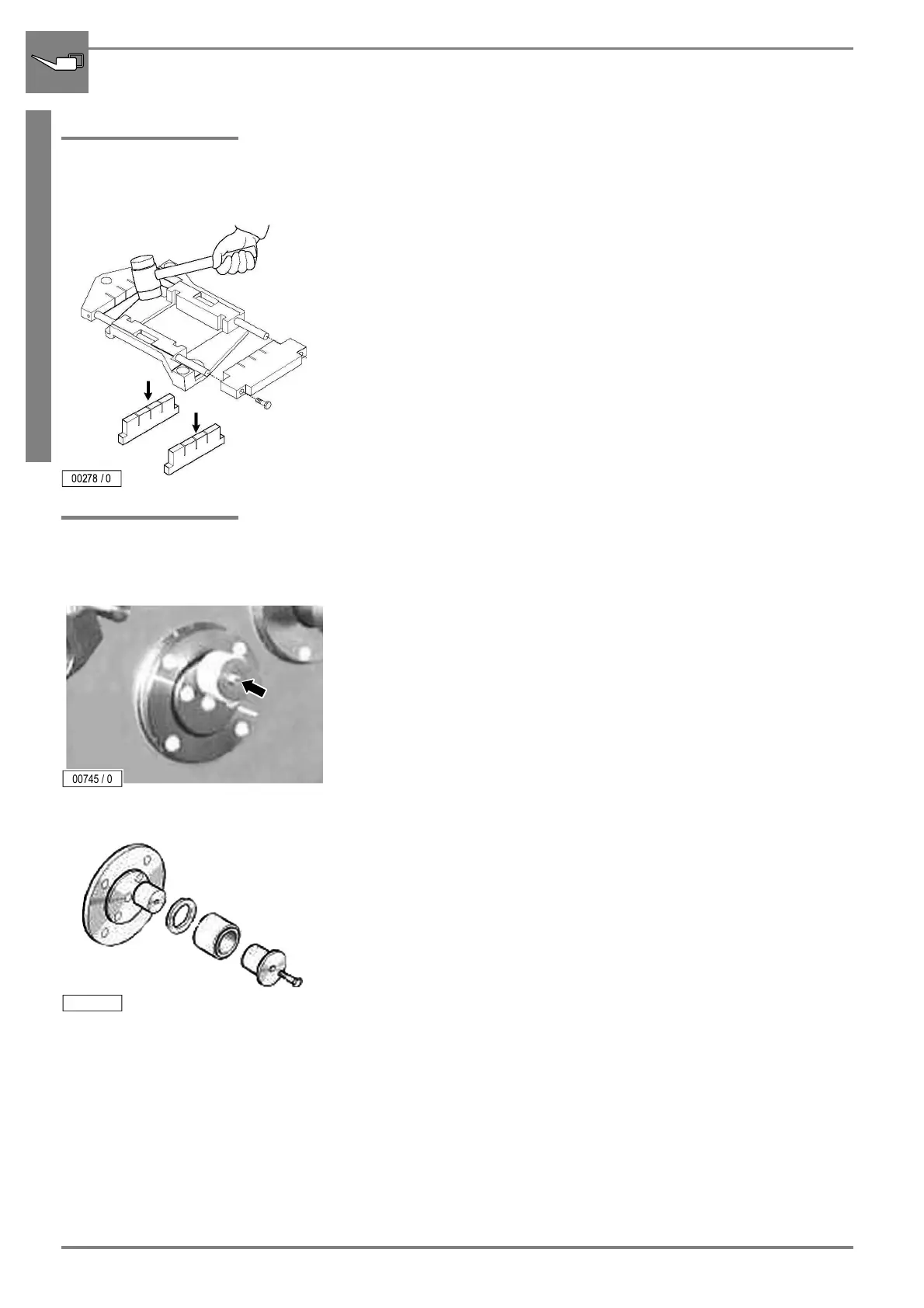

6.5 Changing grid side walls
b Remove the cutting unit (☞ „Dismantling the cutting unit“ on page 37).
b Tap the side walls out of the grid frame with a rubber hammer.
b Insert the new side walls in the slots of the grid frame.
b Tap on the side walls using a rubber hammer.
This causes the side walls to lock in.
b Install the cutting unit (☞ „Installing the cutting unit“ on page 43).
6.6 Changing the rollers of the grid drive
b Remove the cutting unit (☞ „Dismantling the cutting unit“ on page 37).
b Unscrew the screw.
b Remove the washer, bushing and roller.
b Attach the washer, bushing and new roller.
b Tighten the screw.
b Install the cutting unit
(☞ „Installing the cutting unit“ on page 43).
