Transport and installation
Installing discharge conveyor
11/2020 243343V03_EN 77

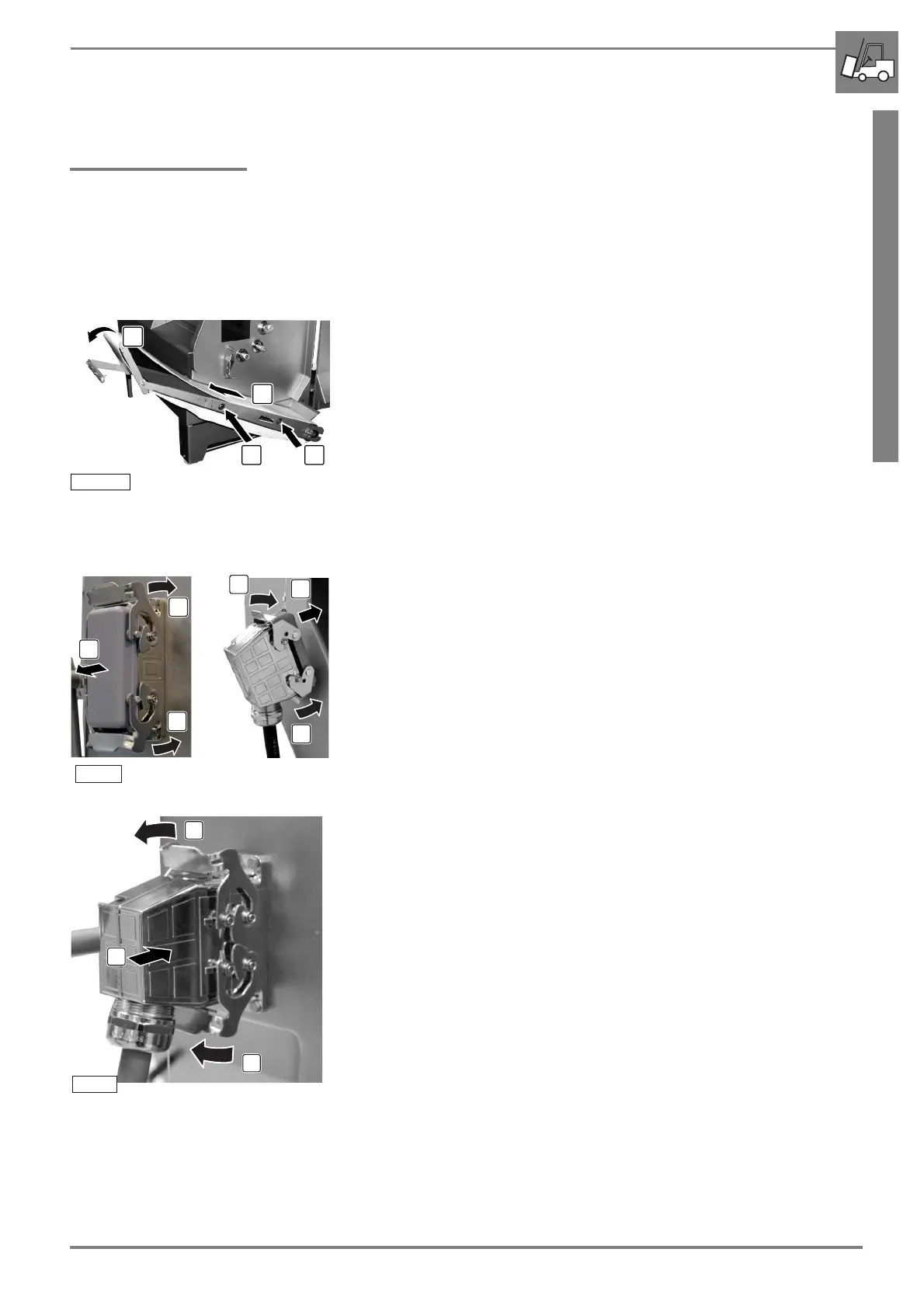

8.4 Installing discharge conveyor
b Disconnect the main power supply and secure it against unintended
switching on.
b Open the knife box door (☞ „Opening/closing the knife box door“ on
page 35).
b Push the discharge conveyor up to the stop on both of the supporting
rods.
b Attach the transport belt.
The transport belt has an arrow on the inside that shows the running
direction of the belt. Attach the transport belt so that the arrow moves
in the running direction.
b Turn the roller bearing down so that the discharge conveyor is straight
and the transport belt is tensioned.
b Attach the protective cover on the discharge conveyor.
b Close the knife box door (☞ „Opening/closing the knife box door“ on
page 35).
b Remove the covers on plug and socket; for this, first unlock the clamps
and then remove the cover.
b Plug the plug connector of the discharge conveyor drive into the lower
socket on the rear of the machine.
b Lock the connector by folding down both clamps.
b Restore the main power supply.
