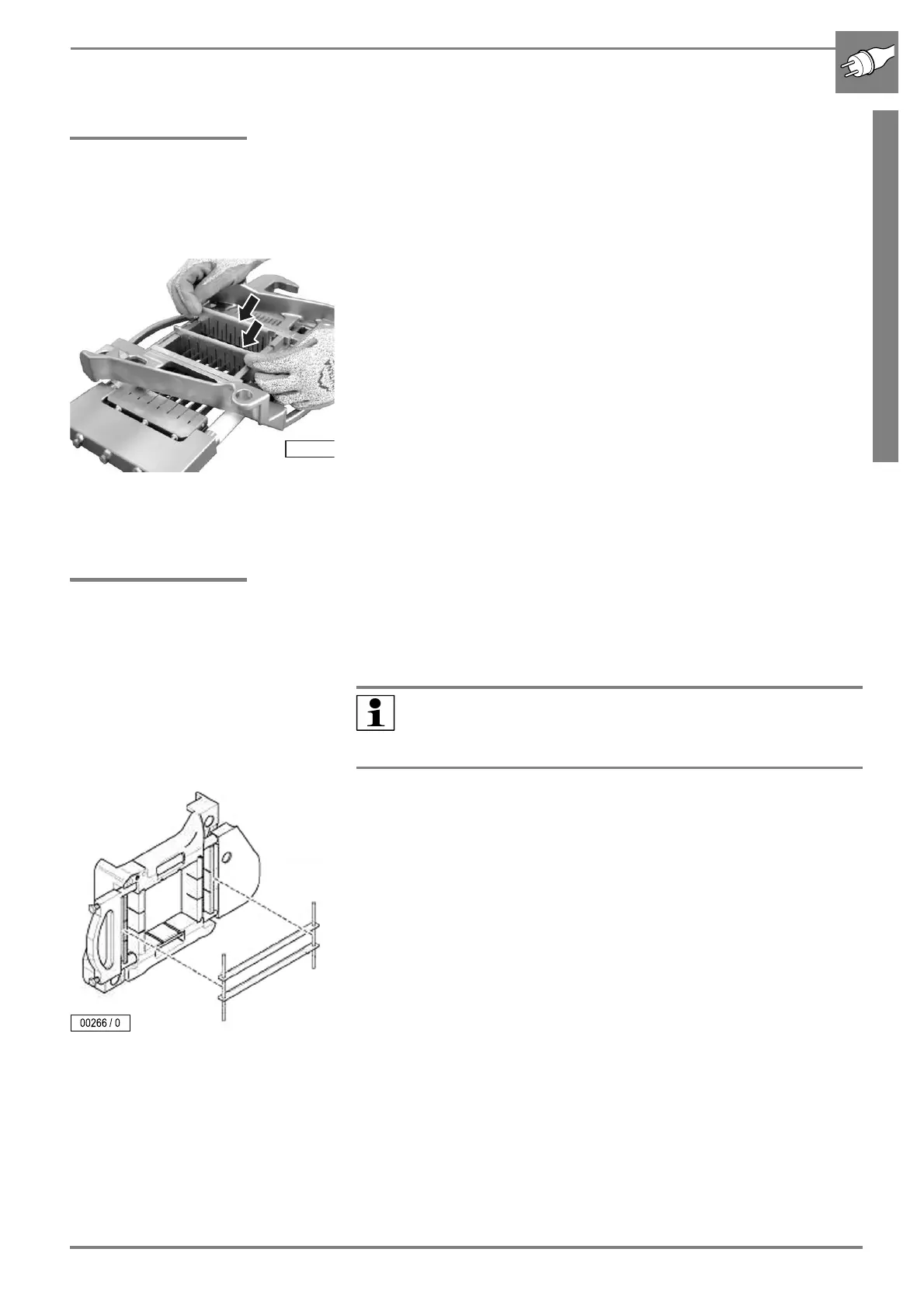

4.9 Installing the product stabiliser
The product stabilisers are inserted into the grooves of the upper grid.
b Place the product stabilisers into the grooves of the upper grid.
4.10 Installing the grid blades
Standard grid
b Place the grid blades on the blade pins.
b Place the grid blades in the slots of the frame. In doing so, you must
insert the blade pins into the grooves of the cross bar.
b Tighten both tension bolts alternately and evenly.
Note:
Pay attention to the direction of the blade edge during installa-
tion.
