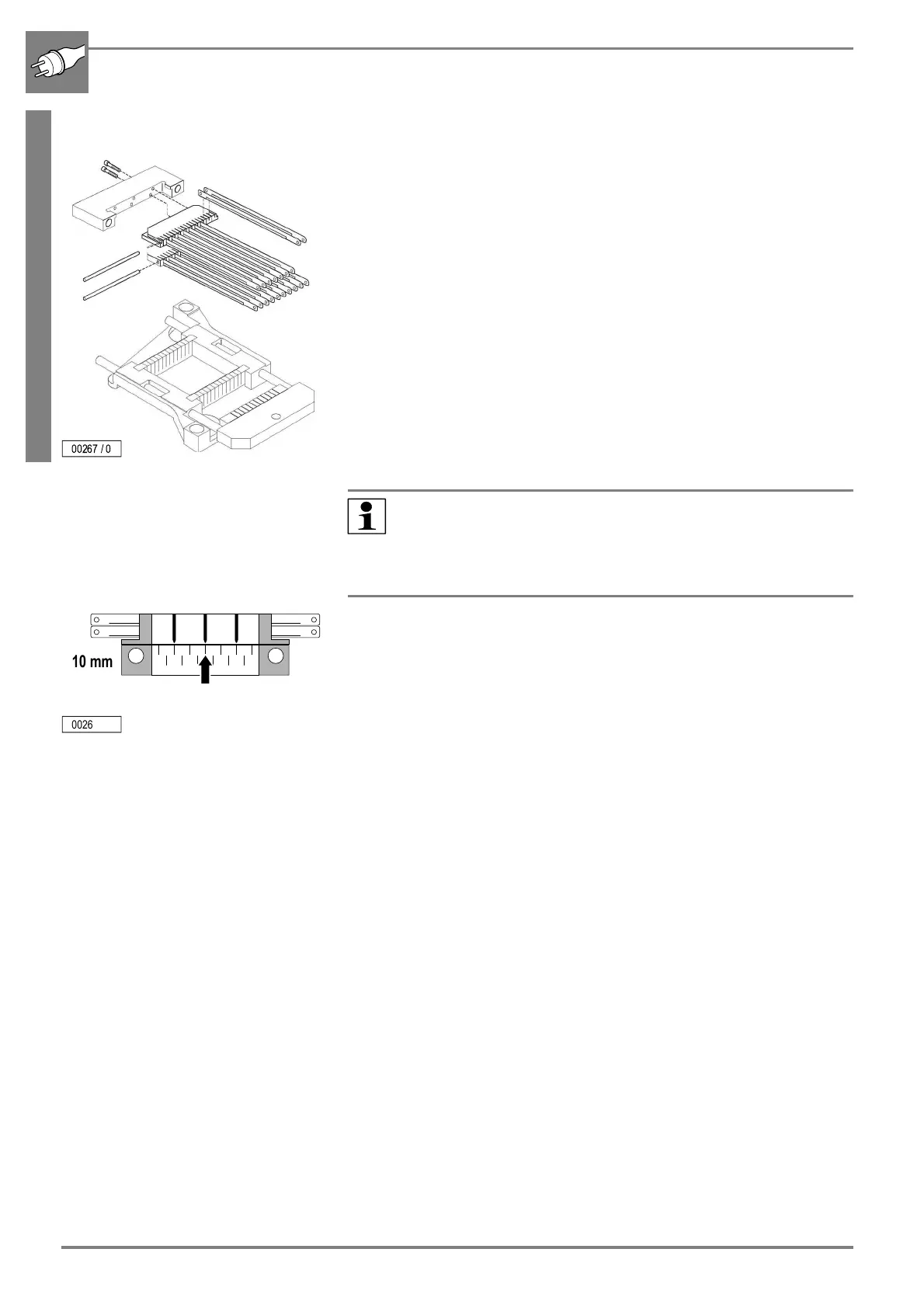

Installing the grid blades
42 11/2020 243343V03_EN
Grid with offset grid blades
b Place the grid blades in the slots of the carrier bar.
b Fasten the blades to the carrier bar using the blade pins.
b Attach the carrier bar to the sliding bars.
b Insert the lower and upper grid blades into the respective clamping
blocks.
b Fasten the grid blades with the blade pins.
b Push the cross bar onto the sliding bars and attach it with the screws.
b Clamp the lower grid blades.
b Clamp the upper grid blades.
Note:
It is important that you place the grid blades into the grid frame
in the correct configuration (see following graphic).
Each product stabiliser (arrow) must be opposite a "higher-
standing" grid blade in the lower grid.
