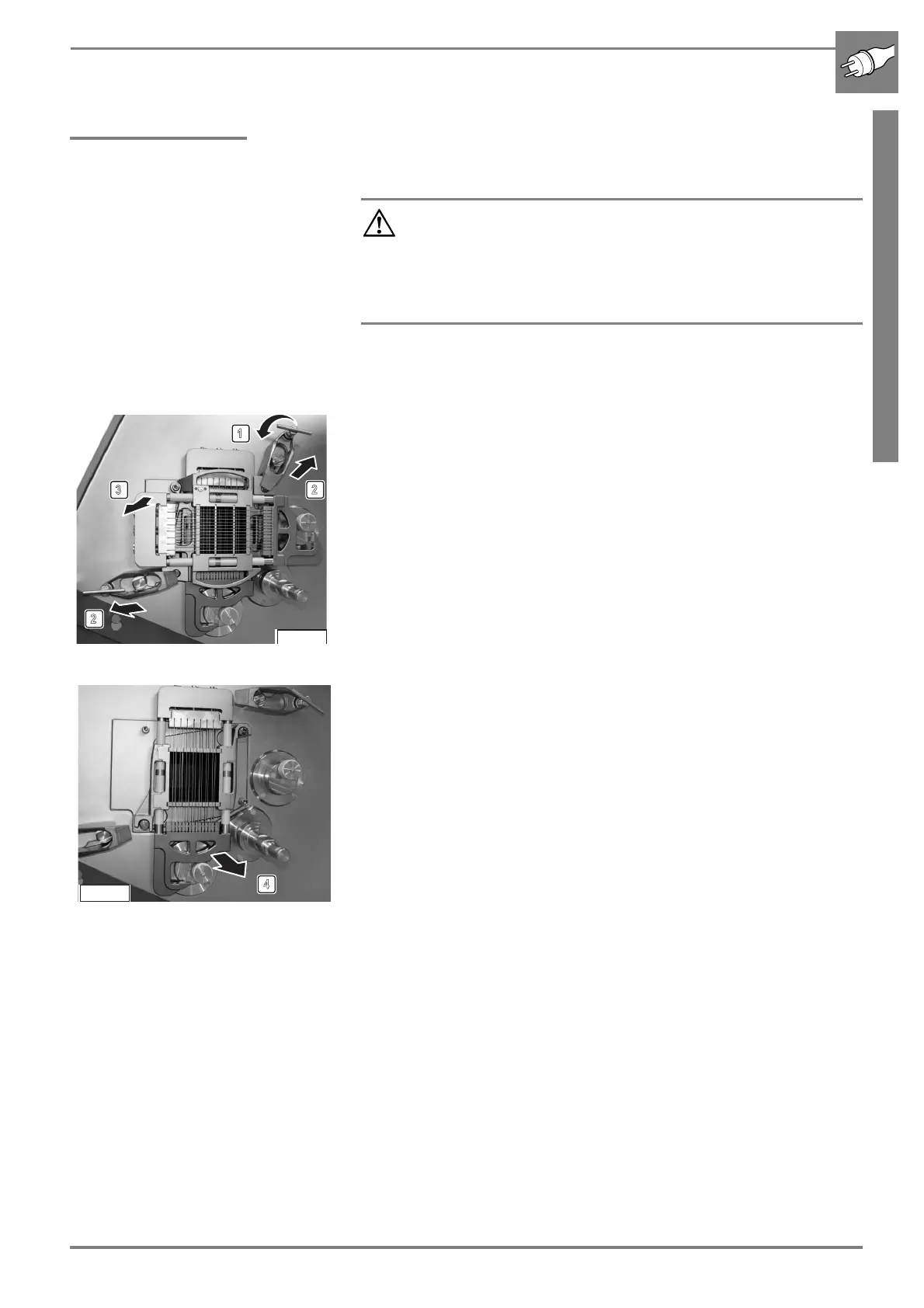

4.11 Installing the cutting unit
☞ „The following applies for the dismantling and assembly descriptions be-
low:“ on page 34
b Place the lower grid on the retaining pins (arrows).
b Place the upper grid above the lower grid on the retaining pins.
b Push the clamping straps over the grid so that it is held in place.
b Tighten the T-handle on the clamping strap at the top right and bottom
left.
Attention, there is a high risk of cutting yourself on the
knife!
Always wear the specified protective equipment when carrying
out any work in the open cutting chamber and when handling
the knife (☞ „Protective equipment“ on page 4).
Only store the dismantled knives at secured places.
