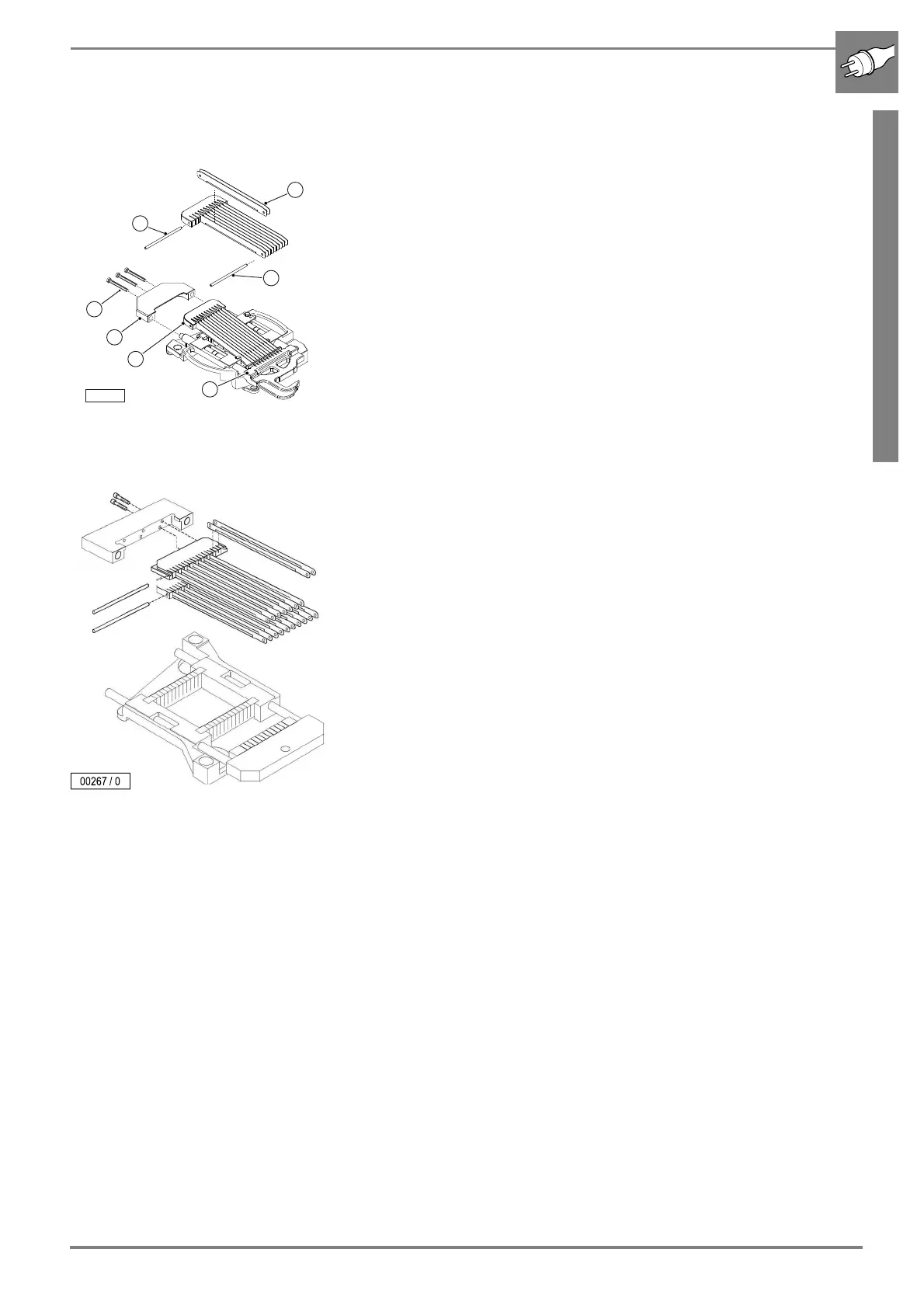

Dismantling the grid blades
11/2020 243343V03_EN 39
Standard grid
b Loosen the two tension screws and remove the screws from the cross
bar.
b Remove the blade pins with the grid blades from the cross bar.
b Remove the grid blades from the blade pins and put them in a safe
place.
Grid with offset grid blades
b Loosen the screws.
b Pull the cross bar off the sliding bars.
b Use a punch to push the blade pins out of the clamping blocks.
b Pull the carrier bar off the sliding bars.
b Remove the carrier bar with the grid blades from the grid frame.
b Press the blade pins out of the carrier bar.
b Remove the grid blades and store them in a safe place.
