Adjustment of the grating disc
11/2020 243343V03_EN 49
The cutting gap is greater than 0.4 mm:

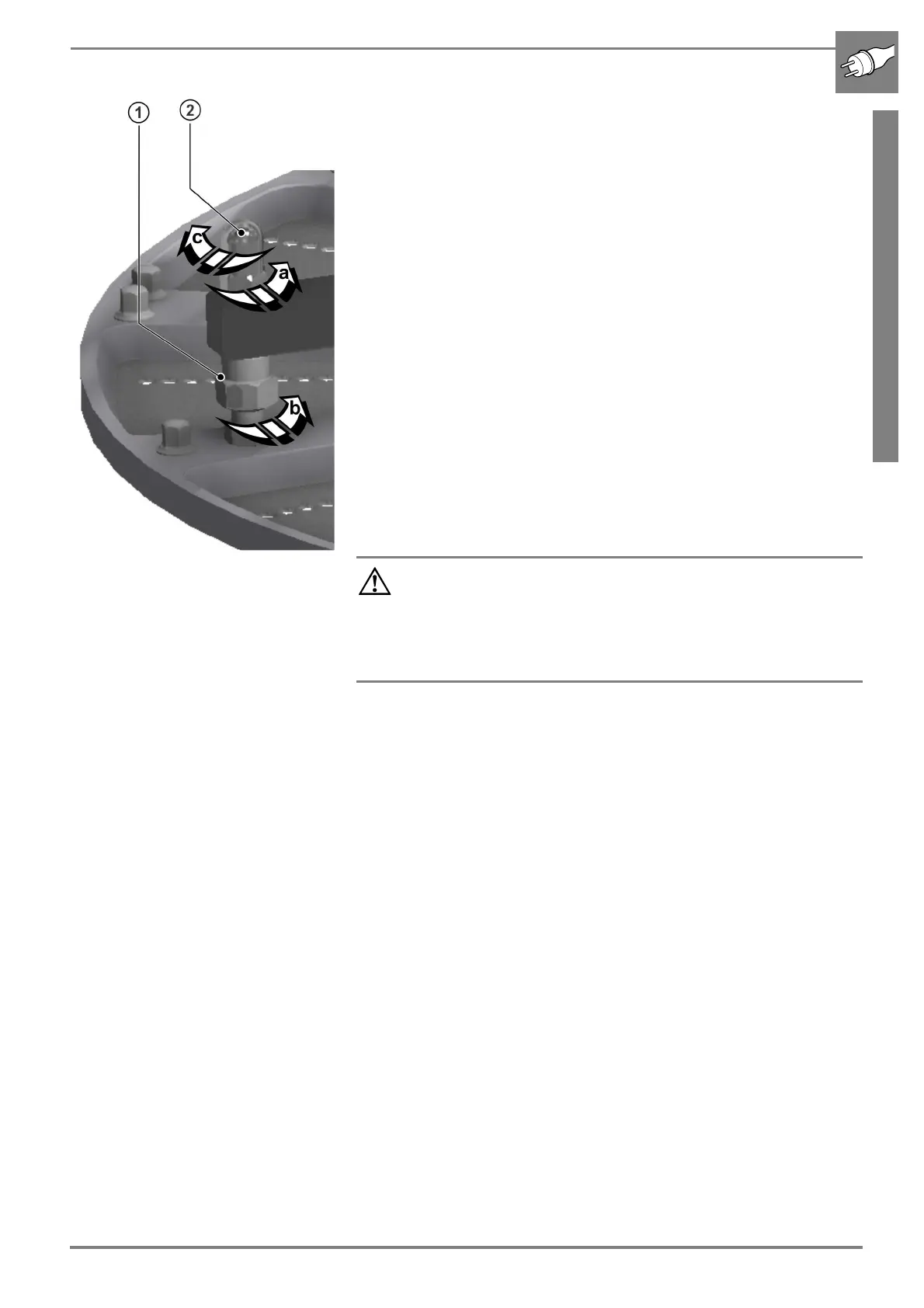

b At this position of the grating disc, loosen the hexagon nut (2) anticlock-
wise (a).
b Turn the hexagon nut (1) anticlockwise (b).
b Check the setting with a feeler gauge.
b If the dimension of the cutting gap is in the adjustment range, tighten
the hexagon nut (2) clockwise (c).
Note:
Machine damage can occur due to incorrect adjustment and/or
not correctly fastened components.
h Check whether all screw connections are tightened.
h After completion of the work, perform a check for correctly
adjusted cutting gap (+0.1 - +0.4 mm).
