Tensioning the belt of the discharge conveyor
70 11/2020 243343V03_EN

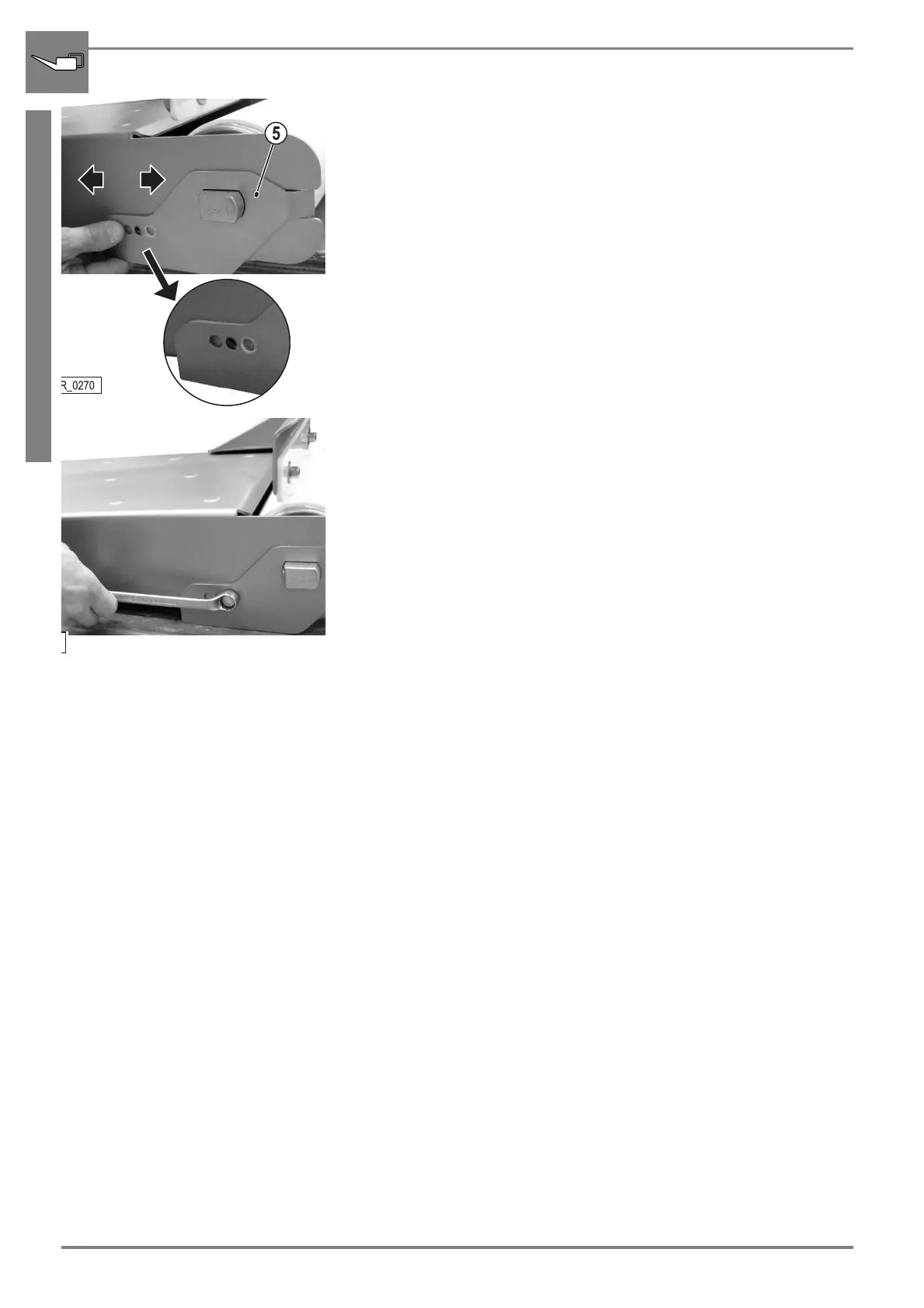

b Slide the motor holder 5 to one of three possible positions on both sides
of the discharge conveyor.
IMPORTANT: Ensure that both motor holders are in the same position.
b Insert bolts and spring washers on both sides of the discharge convey-
or.
b Tighten bolts using a ring spanner.
b Pull on transport belt (☞ „Installation:“ on page 68).
b Install discharge conveyor (☞ „Installing discharge conveyor“ on page
77).
