TBPN-L1-FDIO1-2IOL- Safe I/O
 Fieldbus bits
Word Bit
15
Bit
14
Bit
13
Bit
12
Bit
11
Bit
10
Bit 
9
Bit 
8
Bit 
7
Bit 
6
Bit 
5
Bit 
4
Bit 
3
Bit
2
Bit 
1
Bit 
0
n +
3
FBI
1-7
FBI
1-6
FBI
1-5
FBI
1-4
FBI
1-3
FBI
1-2
FBI
1-1
FBI
1-0
FBI
0-7
FBI
0-6
FBI
0-5
FBI
0-4
reserved
Name
FBI 0-4 to FBI 1-7 Inputs in TBIP-L…-FDIO1-2IOL which can be addressed by the unsafe part of the
safety controller.
These bits have to be configured by the user in Turck Safety Configurator.

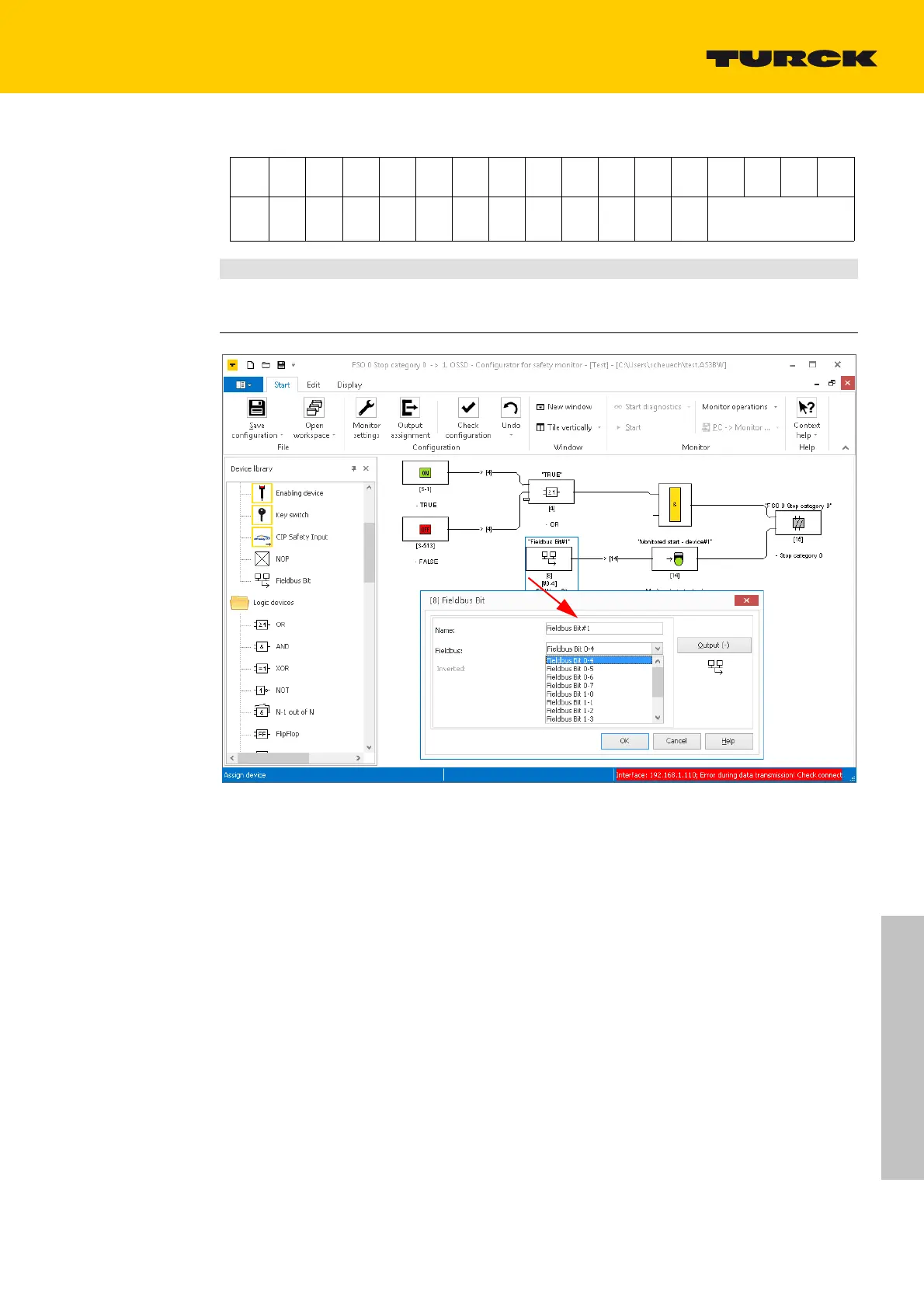

Fig. 68: Input assignment in Turck Safety Configurator
