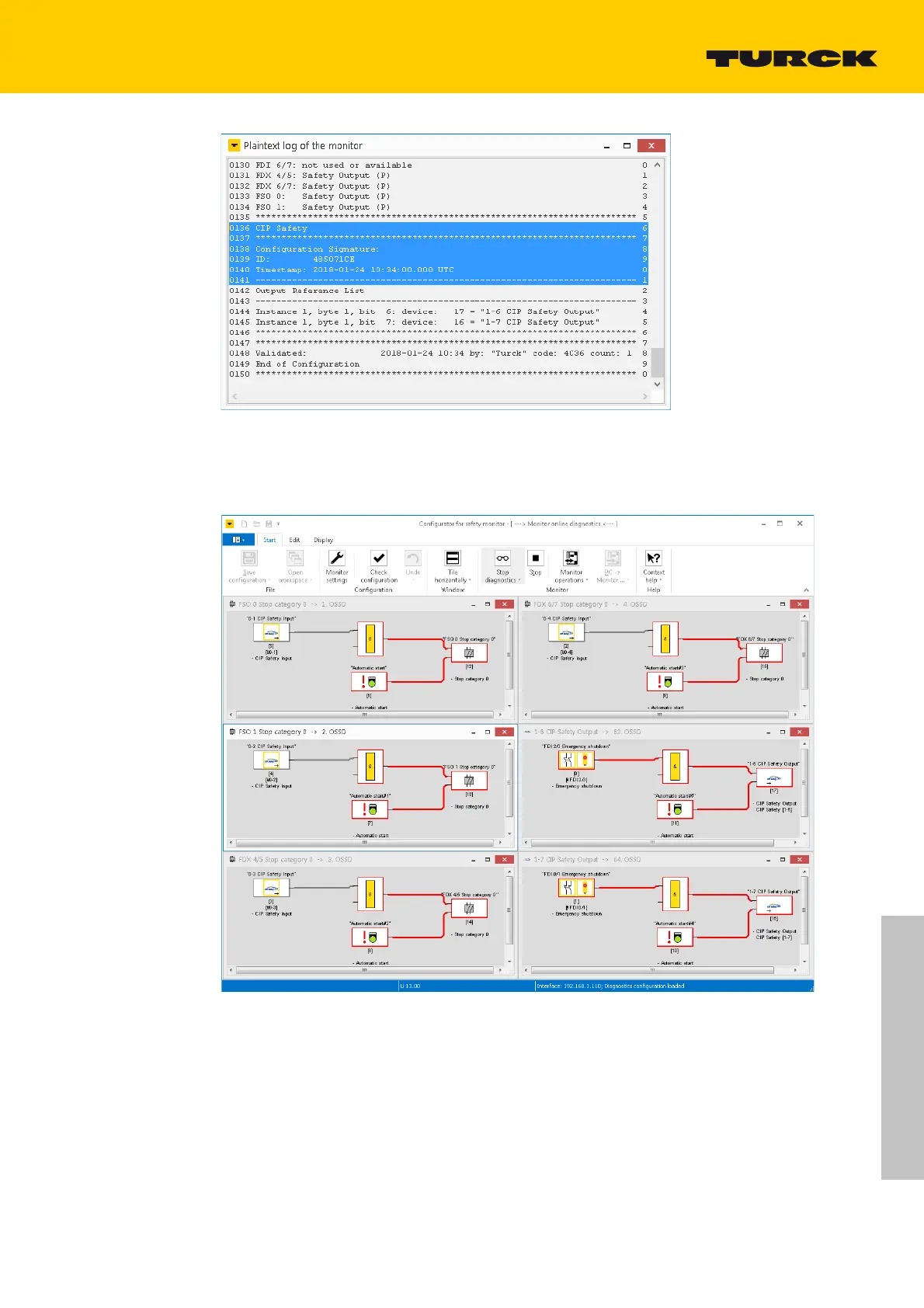

Fig. 27: CIP Safety Configuration Signature
53
2018/02
TBPN-L1-FDIO1-2IOL- Safe I/O
Loading the Diagnostics Configuration
If the diagnostics are activated, the TSC shows the state of the safety I/Os.
Fig. 28: Released configuration, diagnostics configuration loaded
