TBPN-L1-FDIO1-2IOL- Safe I/O
Possible output configurations:
 PP-switching
 PM-switching
C4
C5
C6
C7
C0
C1
C2
C3
X2X1
P2P1
FE
IP A
ddress

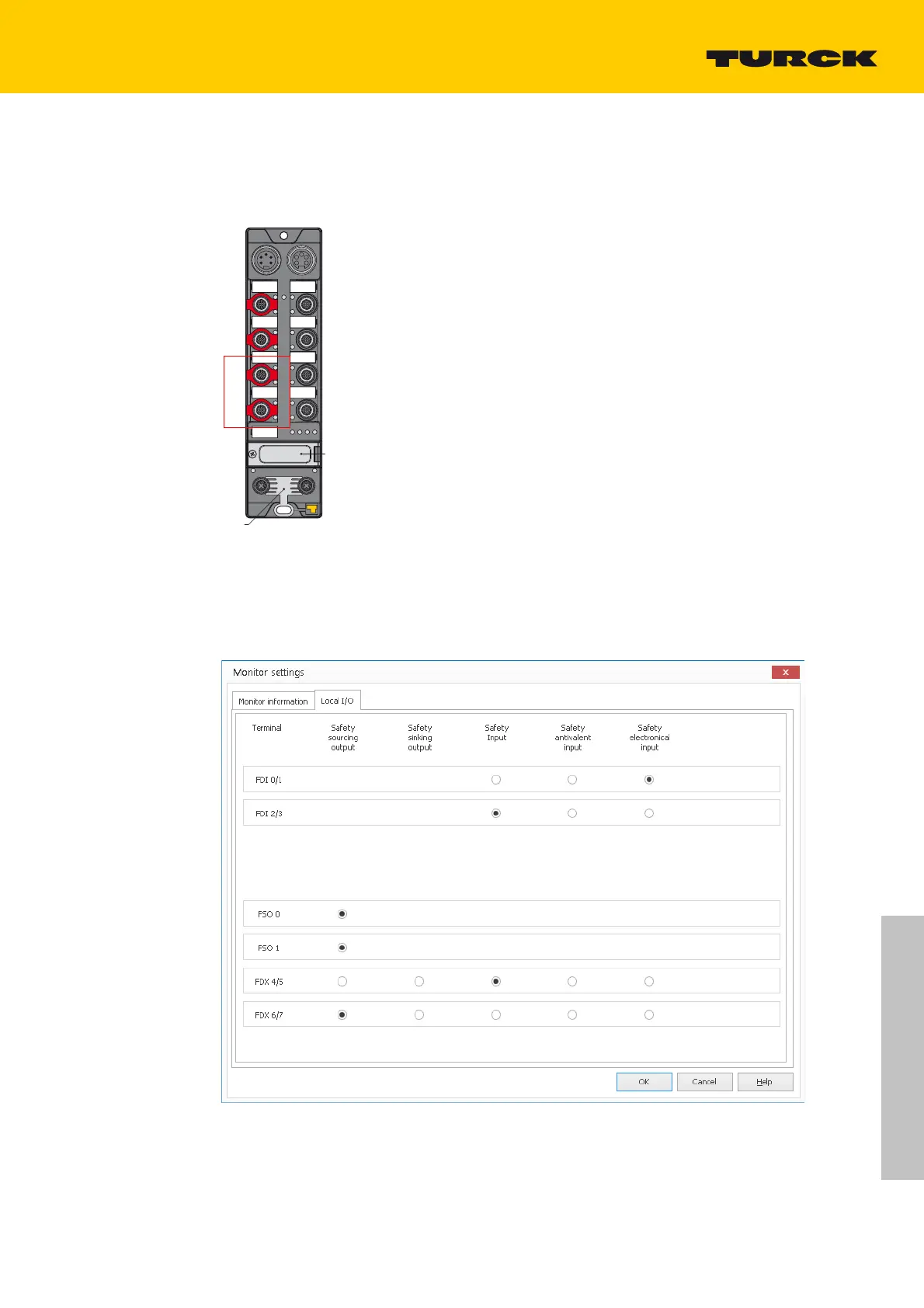

Fig. 30: Output configurations
Setting-up an Own configuration
 Adapt the standard configuration of the safety channels in the Turck Safety Configurator under
"Monitor settings  Local I/O".
Fig. 31: Customized configuration of the local I/O
 Close the dialog box with "OK".
