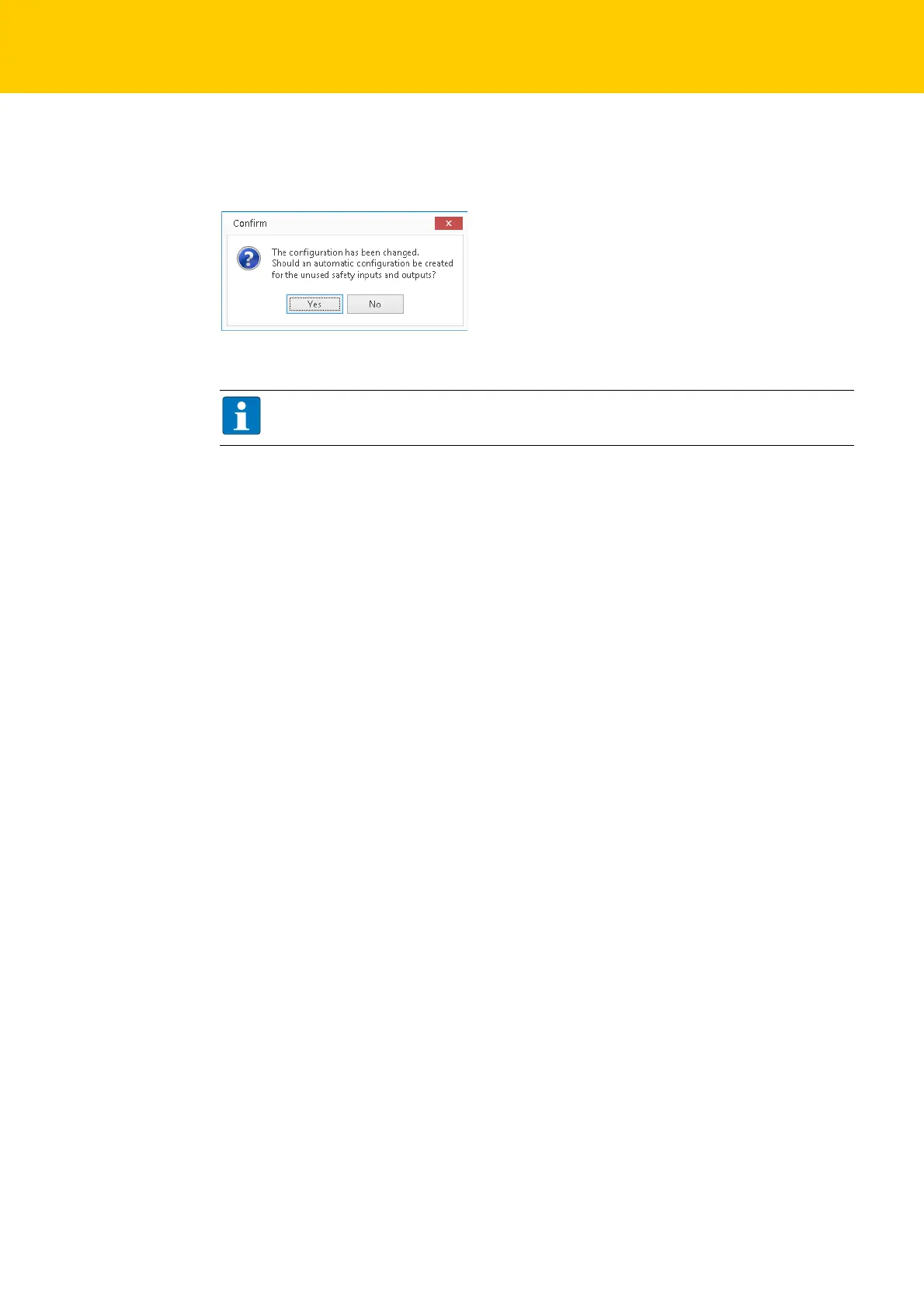

The configuration change is done.
The software generates the new release circuits (OSSDs) if
the following dialog box is closed with
"yes".
Again, the CIP Safety in- and output bits are automatically assigned.
HINWEIS
Release circuits (OSSDs) which are no longer used, have to be deleted.
New configuration (assignment of release circuits):
Inputs
FDX4/5 62. OSSD (new
release circuit for the input)
FDI0/1 64
. OSSD
FDI2/3 63
. OSSD
Outputs
FDX6/7 4. OSSD
FDX4/5 3
. OSSD (no longer necessary, will be deleted,
see Dele
ting OSSDs (page 57)
FSO0 2. OSSD
FSO1 1. OSSD
