Configuring with Turck Safety Configurator and Rockwell Studio 5000
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
66
Release of the safety function via a release bit in the F-CPU
The release of the safety function is done using a release bit in the F-CPU. Therefore, an output bit
of the F-CPU is assigned to the output function in the 3. OSSD.
Select the element "CIP Safety input" in the Devic
e library and place it at the third input of the
function.

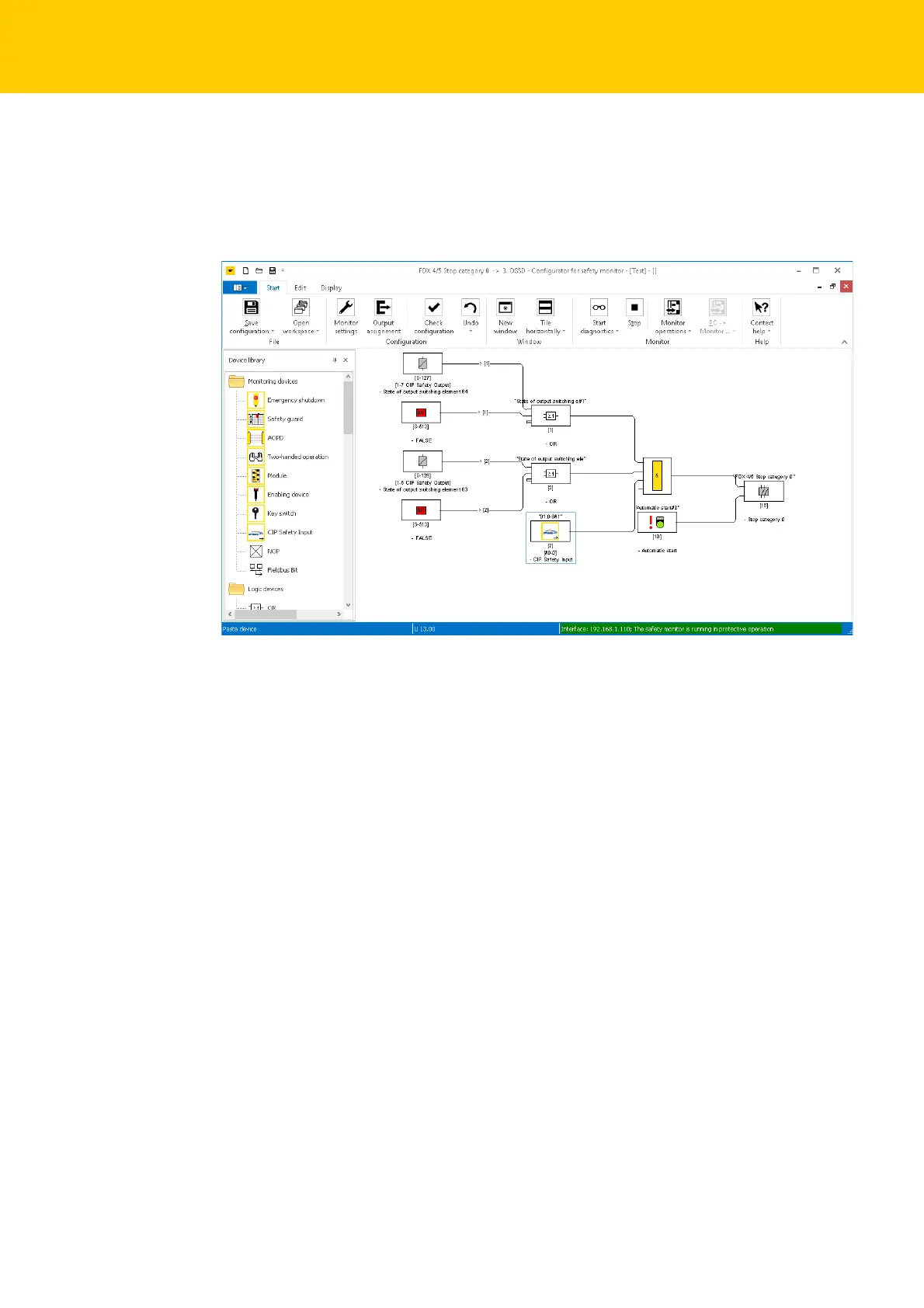

Fig. 41: 3. OSSD with release bit from F-CPU
After an error, the safety function will only restart if the emergency shutdown as well as the light
gr
id are error free and the release bit in the F-CPU is set.
