TBPN-L1-FDIO1-2IOL- Safe I/O
Switch-off FDX6/7 at C3 (4. OSSD), if output FDX4/5 is switched.
Output FDX6/7 has to switch off if output FDX4/5 (3. OSSD) switches off.
 Delete "CIP Safety input" in OSSD 4.
 Select the block "State of output
switching element" from the Device library and place it at the
function input.
 In the dialog box "State of output switching element
x" select OSSD 3.

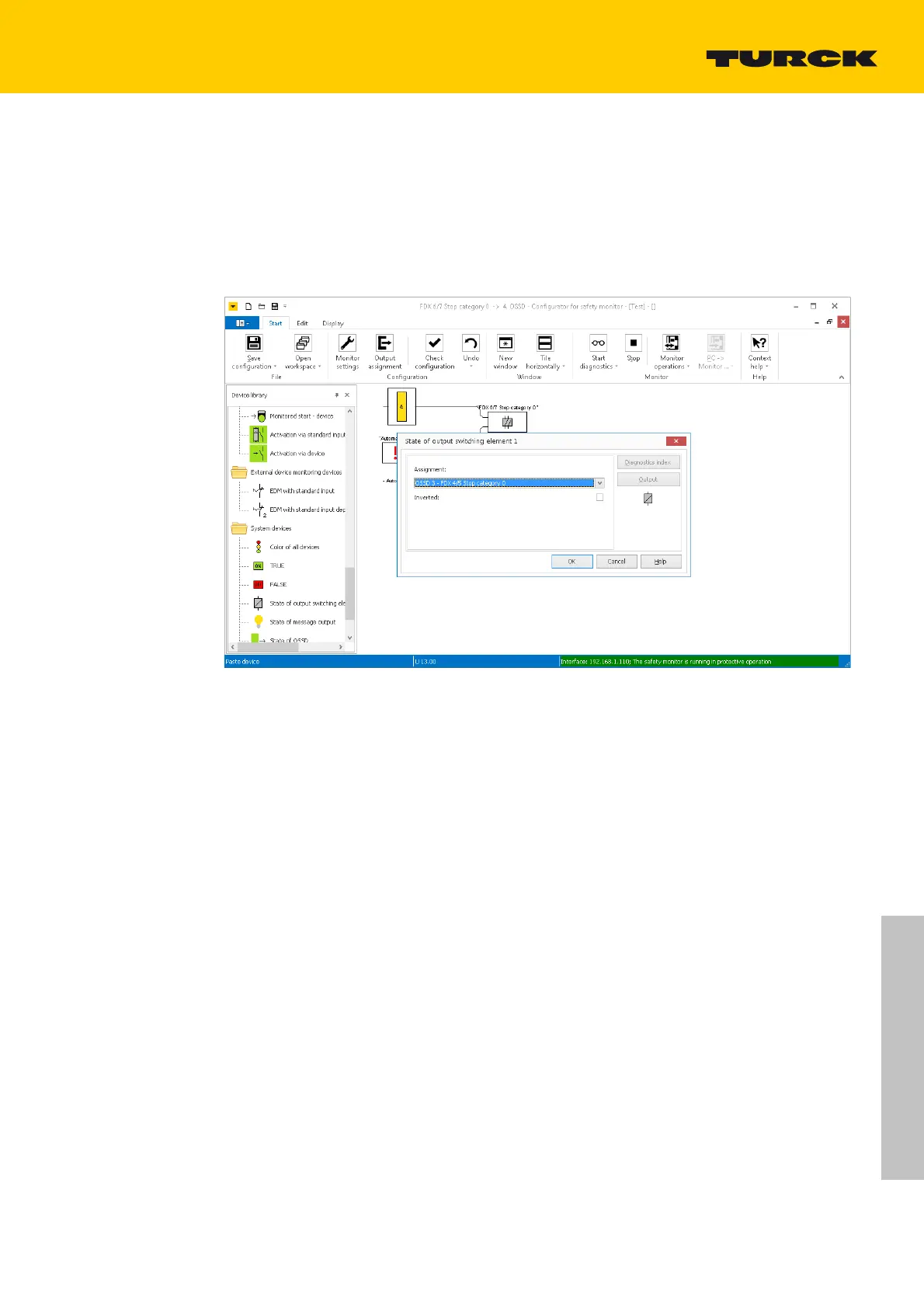

Fig. 40: State of output switching element OSSD 3 in OSSD 4
 The state of 3. OSSD controls the output
FDX6/7 in 4. OSSD.
