Unify OpenStage 15 Administration Manual

Startup
A31003-S2030-M100-11-76A9, 01/2015
22 OpenStage SIP V3R3 for OpenScape Voice, Administration Manual
inbetriebnahme.fm

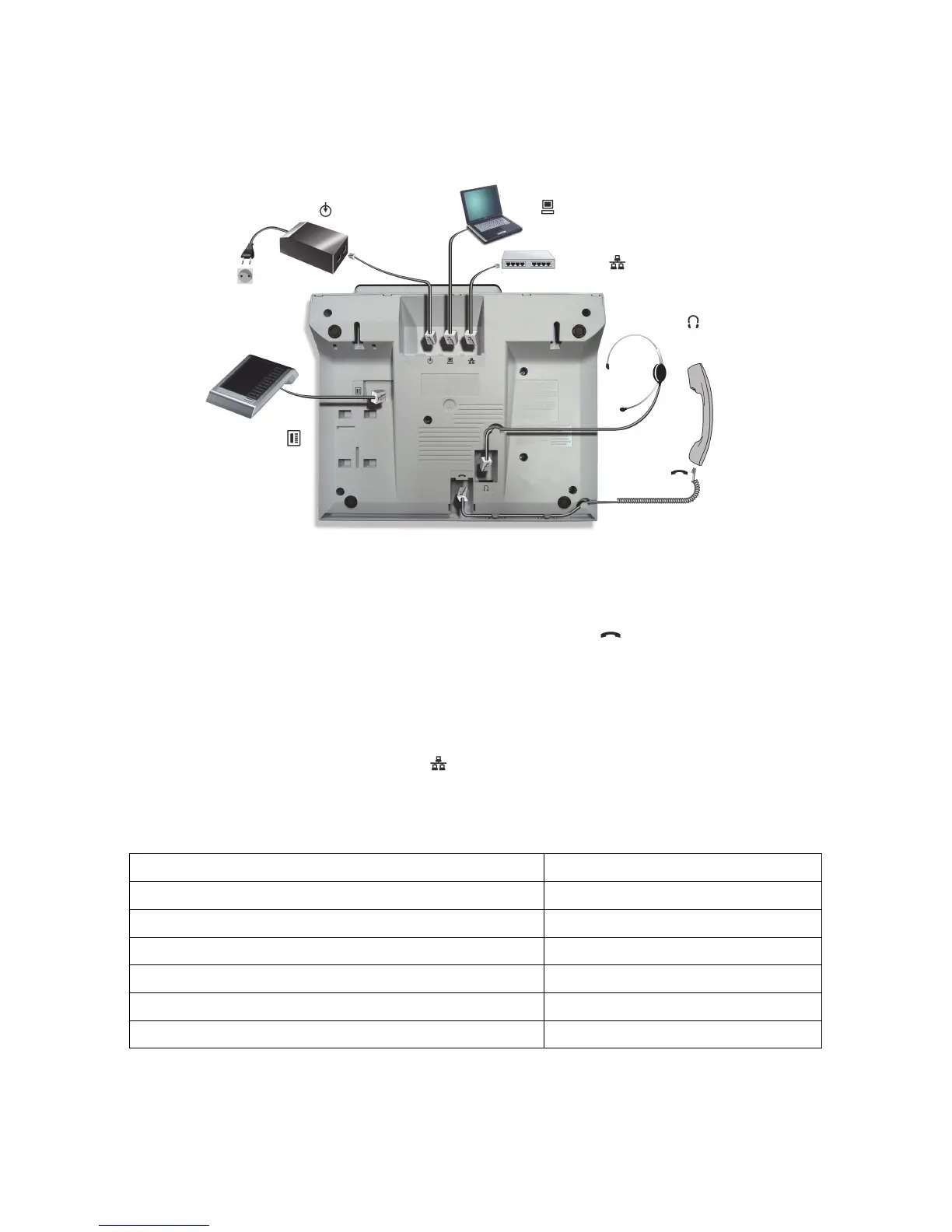

Assembling and Installing the Phone
OpenStage 40 (OpenStage 15 and 20 similar, except
1
)
2.2.3 Assembly
Insert the plug on the long end of the handset cable into the jack on the base of the tele-
phone and press the cable into the groove provided for it. Next, insert the plug on the short end
of the handset cable into the jack on the handset.
2.2.4 Connecting the Phone
1. Plug the LAN cable into the connector at the bottom of the telephone and connect the
cable to the LAN resp. switch. If PoE (Power over Ethernet) is to be used, the PSE (Power
Sourcing Equipment) must meet the IEEE 802.3af specification.
For details about the required power supply, see the following table:
Model Power Consumption/Supply
OpenStage 15
1
Power Class 1
OpenStage 15 G
1
Power Class 2
OpenStage 20 E Power Class 1
OpenStage 20 Power Class 1
OpenStage 20 G Power Class 2
OpenStage 40
2
, OpenStage 40 US
2
Power Class 2
PC
Switch
Headset
[1]
Handset
Power supply
Key Module
[1]
[1] OpenStage 40 andd
