• External Shunt
This column displays the value, in milliohms, of the external shunt resistor or the equivalent shunt
value of an auxiliary current transformer device. The system uses these stored resistance values to
convert sensed voltages to their equivalent line
currents (R = E / I).
• Export
The checkboxes in this column are used to select the channels to be exported to Continuous
Recorder data. Checking the box in the header of this column will select all the analog input
channels.
• Button
This button returns the display to the New Station Details page.
• Button
This button advances the display to the Manage Line Groups page.

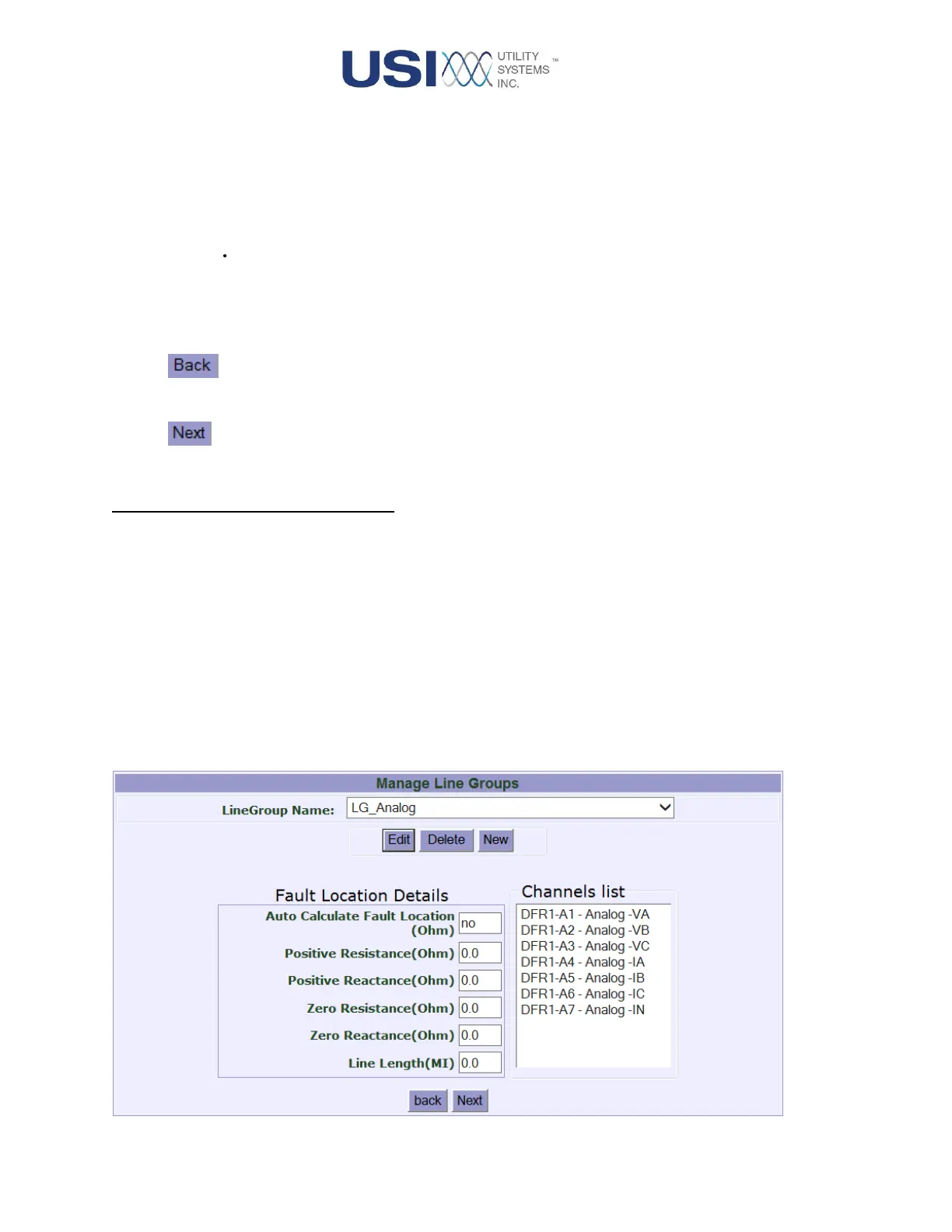

3.1.3 Line Groups Configuration
This page is used to categorize analog channels into groups (e.g. transmission lines, transformer taps,
etc.). The wizard tool automatically initiates these groups using the following parameters as previously
entered in the Analog Channels Configuration:
• Inputs contained within each individual chassis
• Descriptions
• Input Types (Volts or Amperes)
• Input Phase (A, B, C, or N)
