usi M9000 - Figure 1-15 Front Panel Led Board -Front View; Front Panel LED Board

25
1.1.6 Front Panel LED Board
The LED board is mounted to the front panel of the M9000 module and is used to indicate its
status. A 6-pin ribbon cable attaches the J1 connector to the CPU board (J14).

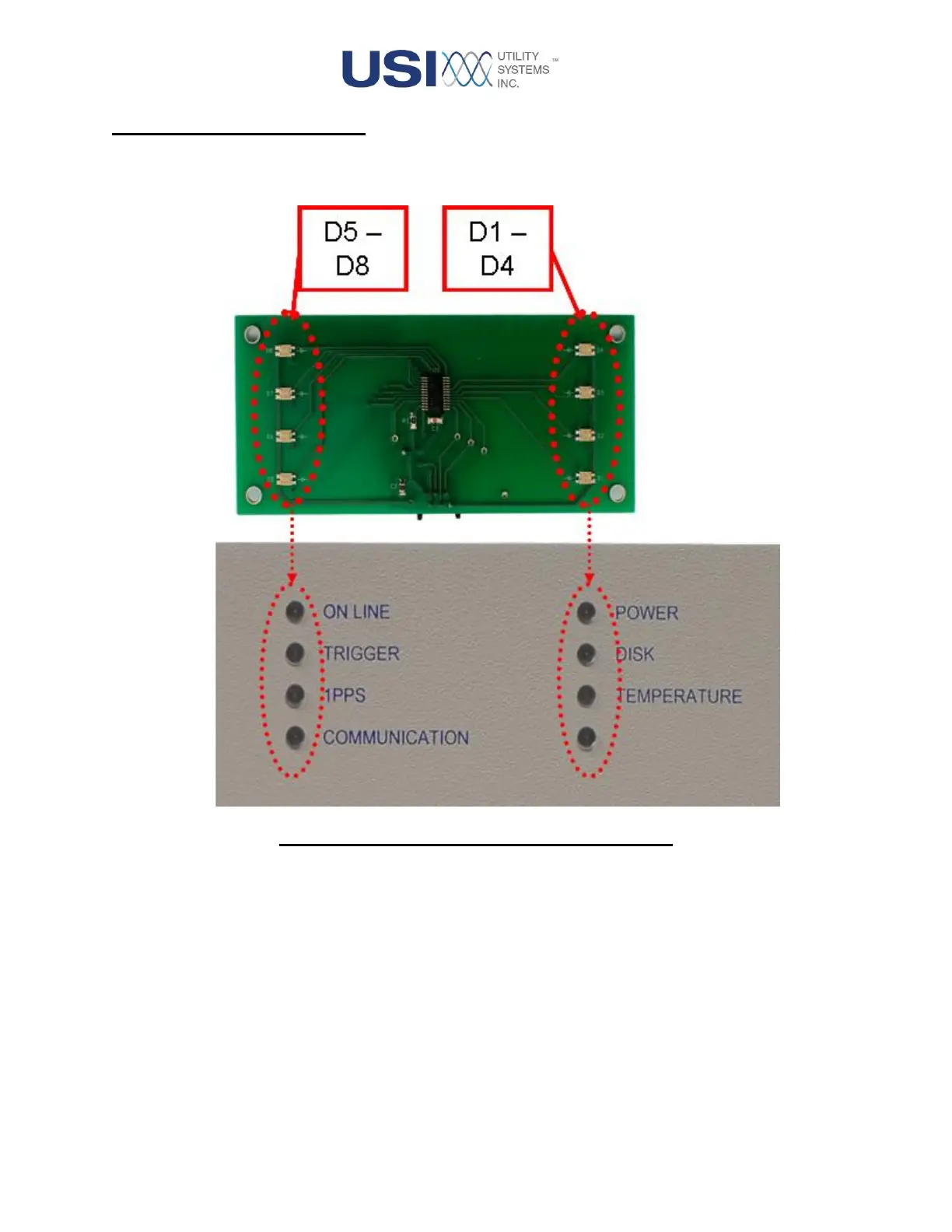

Figure 1-15 Front Panel LED Board –Front View
