usi M9000 - Figure 3-1 New Station Detailsw; Indow

To Next Page

To Previous Page

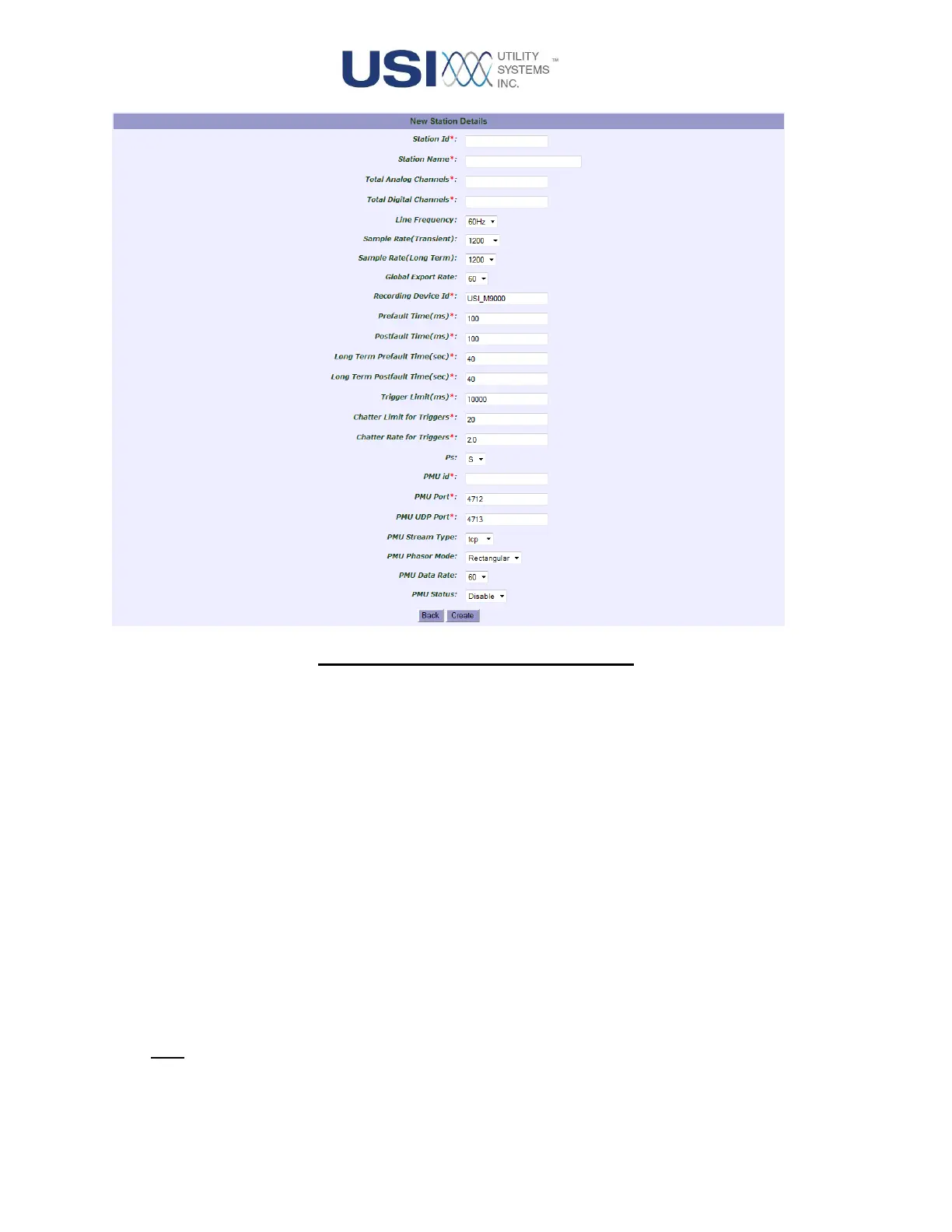

Figure 3-1 New Station Details Window

• Station ID*

This value is a unique DME system remote identification number. Typically, the first DME system is

Station ID# 1; the second is #2, etc. However, this entry is restricted to a number previously

unassigned and from one to four digits in length.

• Station Name*

This field is used to enter the alpha-numeric station name. The name is limited to 64 characters.

• Total Analog Channels*

This field is used to enter the number of analog input channels for the new system. Analog

channels are available in multiples of eight.

• Total Digital Channels*

This field is used to enter the number of digital input channels for the new system. Digital channels

are available in multiples of 32.

Note: The Model 9000 DME system has a distributed architecture. Analog and Digital channel

counts entered above are the summation of all physical locations.
