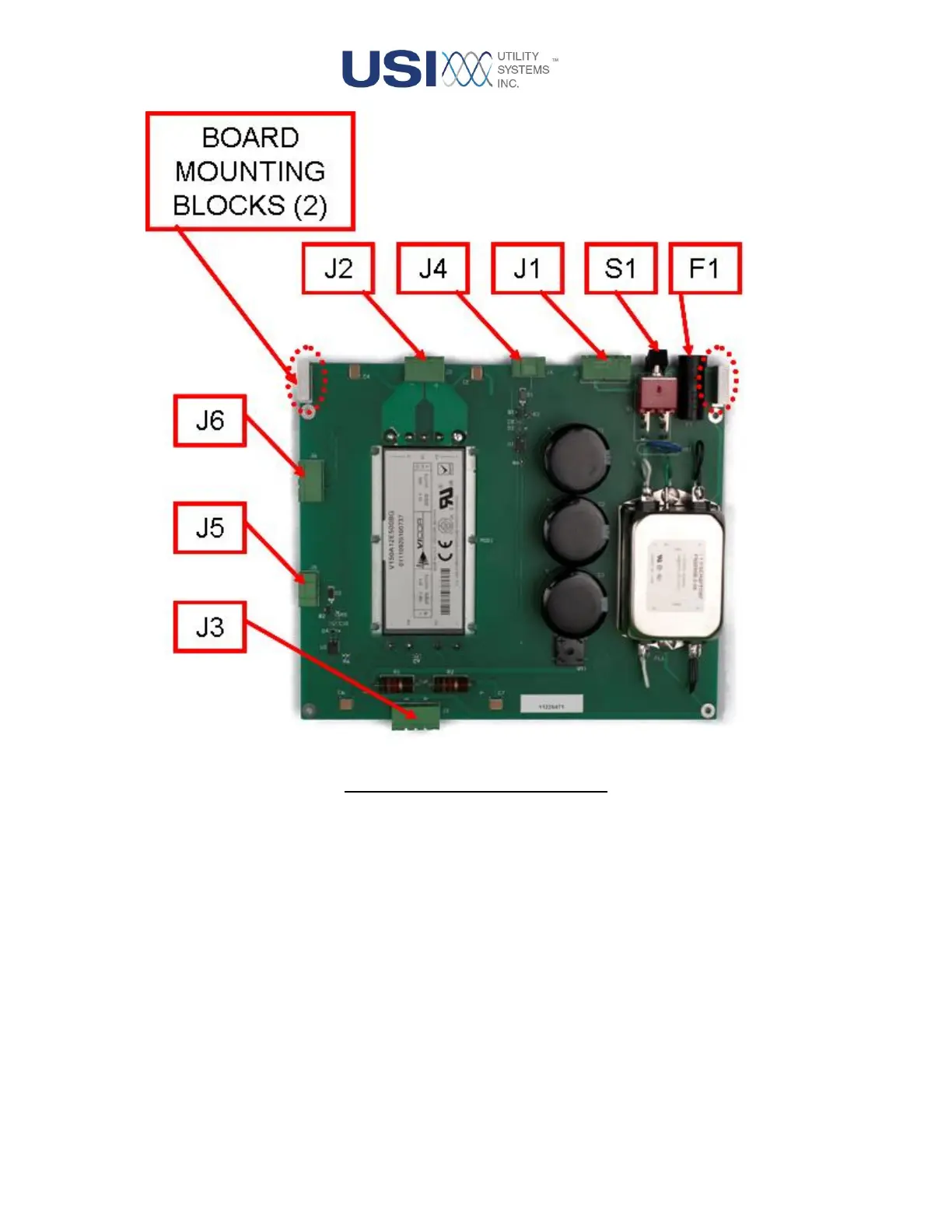

Figure 1-18 Power Supply Board
• F1
This 8-ampere slow-blow fuse protects the board from excessive input current.
• S1
This switch is used to control input power to the board.
• J1
This is the power supply input connection to the board.
• J2
This is the power supply output connection used to supply power to the Station-Master computer.
