o Normal:
This column displays the state as “N” (Normal) or “A” (Abnormal) for the state
shown in the Now column. The normal state is defined by the Normal State setting
in the configuration file (Section 3.1.5).
o Sync:
This column displays “S” (synced) or “U” (un-synced) to indicate whether the DME
system is synchronized with an IRIG-B satellite.
o Description:
This column displays the description of the event input. When the state of the
event input is Normal, the Normal Descriptor as entered in the Configuration file
(Section 3.1.5) is displayed.
2.3.3 DDR Analog Data Screen
This screen tab displays a table of DDR Analog data received from the selected DME system.

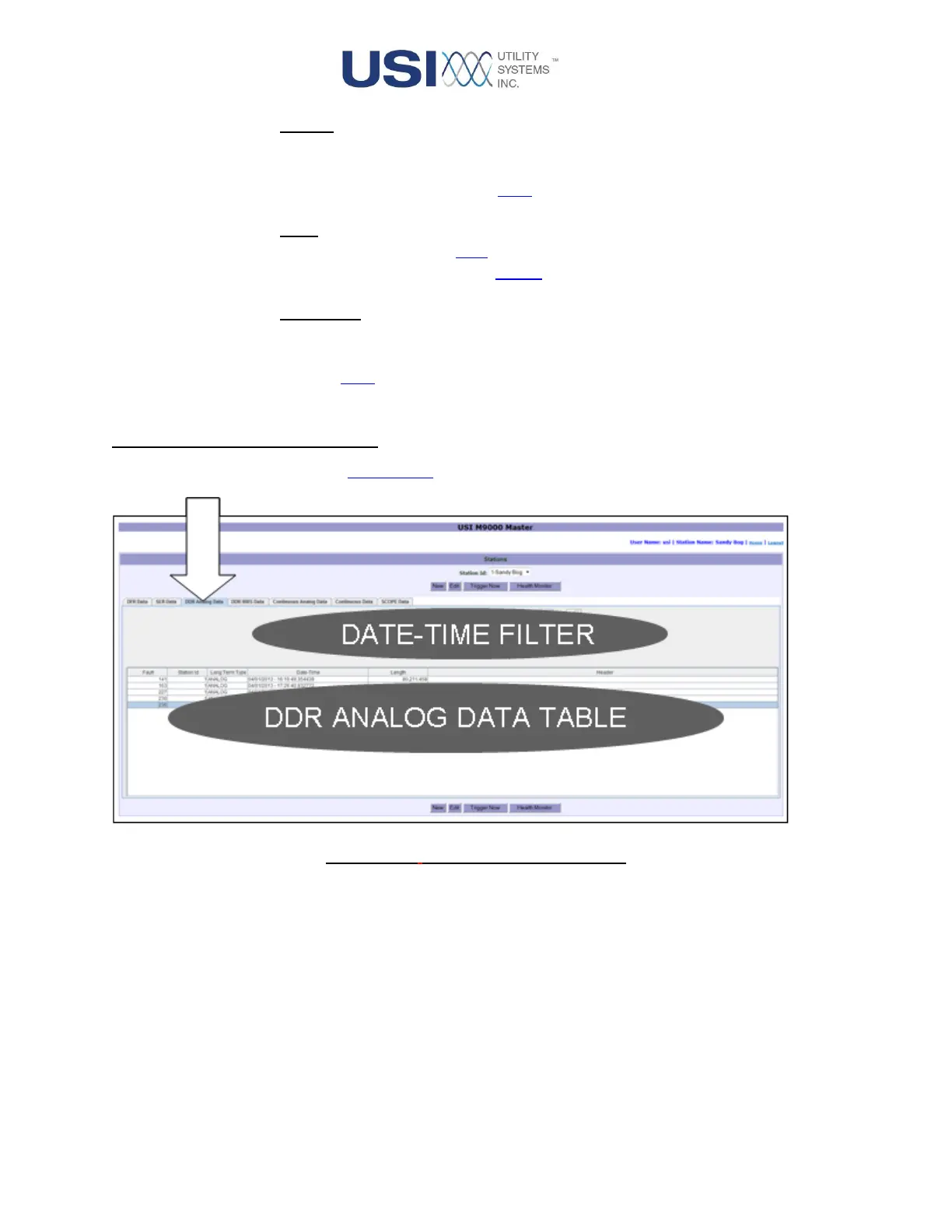

Figure 2-18 DDR Analog Data Screen
• Date-Time Filter
This panel is used to select the records to be displayed in the Data table.
