usi M9000 - Figure 3-2 Line Frequency Drop - down; Figure 3-3 Transient Sample Rated; Enu

80
• Line Frequency
This drop-down menu is used to select the fundamental frequency of the power system. This
selection will affect the choices for sample rates, export rate, and PMU data rate.

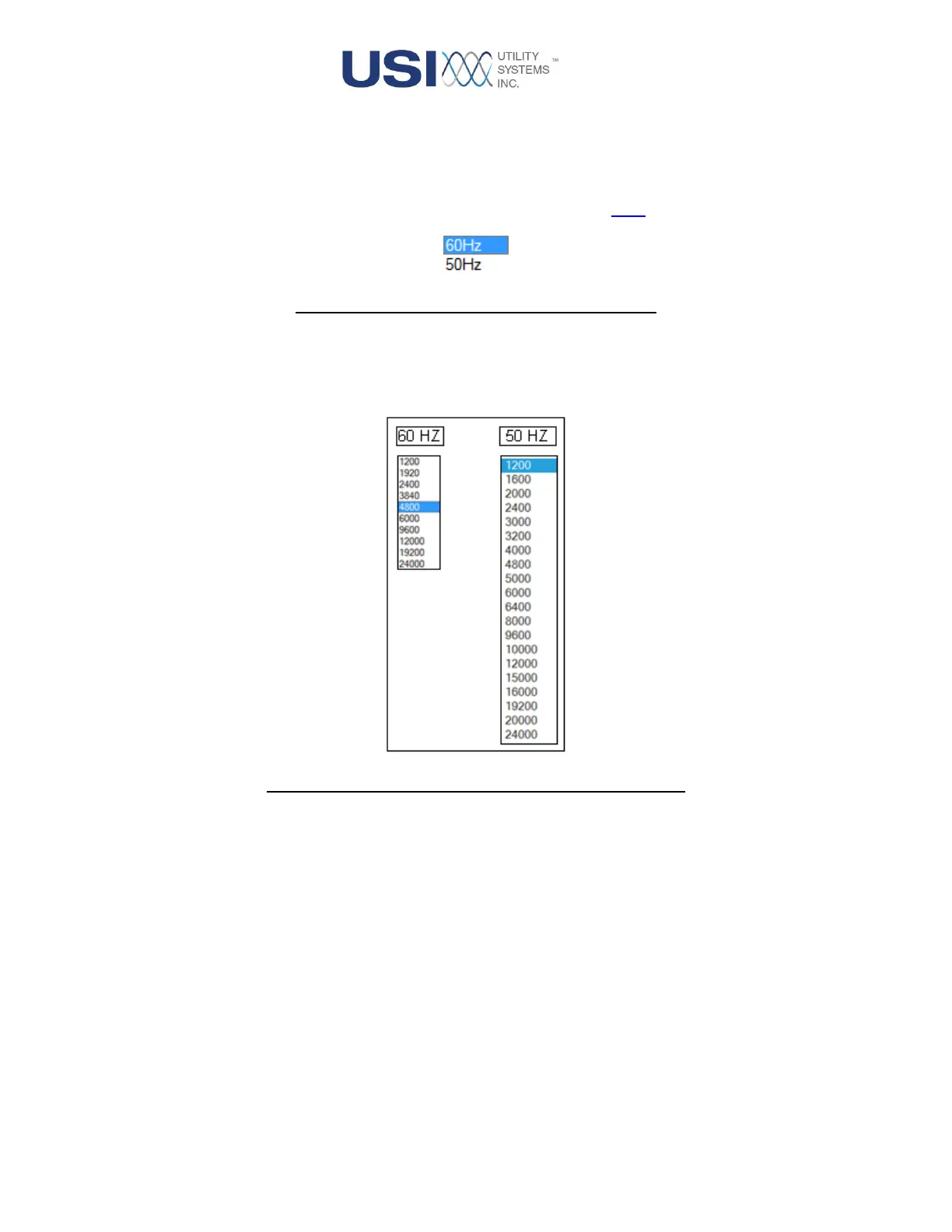

Figure 3-2 Line Frequency Drop-down Menu
• Sample Rate (Transient)
This drop-down menu is used to select the sample rate of the analog to digital converters. The list
displayed is determined by the Line Frequency selection.
Figure 3-3 Transient Sample Rate Drop-down Menu
• Sample Rate (Long Term)
This drop-down menu is used to select the sample rate for the stored Long Term recordings. This
selection also determines the export rate for continuous recorded analog data (see Section 3.1.2).
The list displayed is determined by the Line Frequency selection.
