68

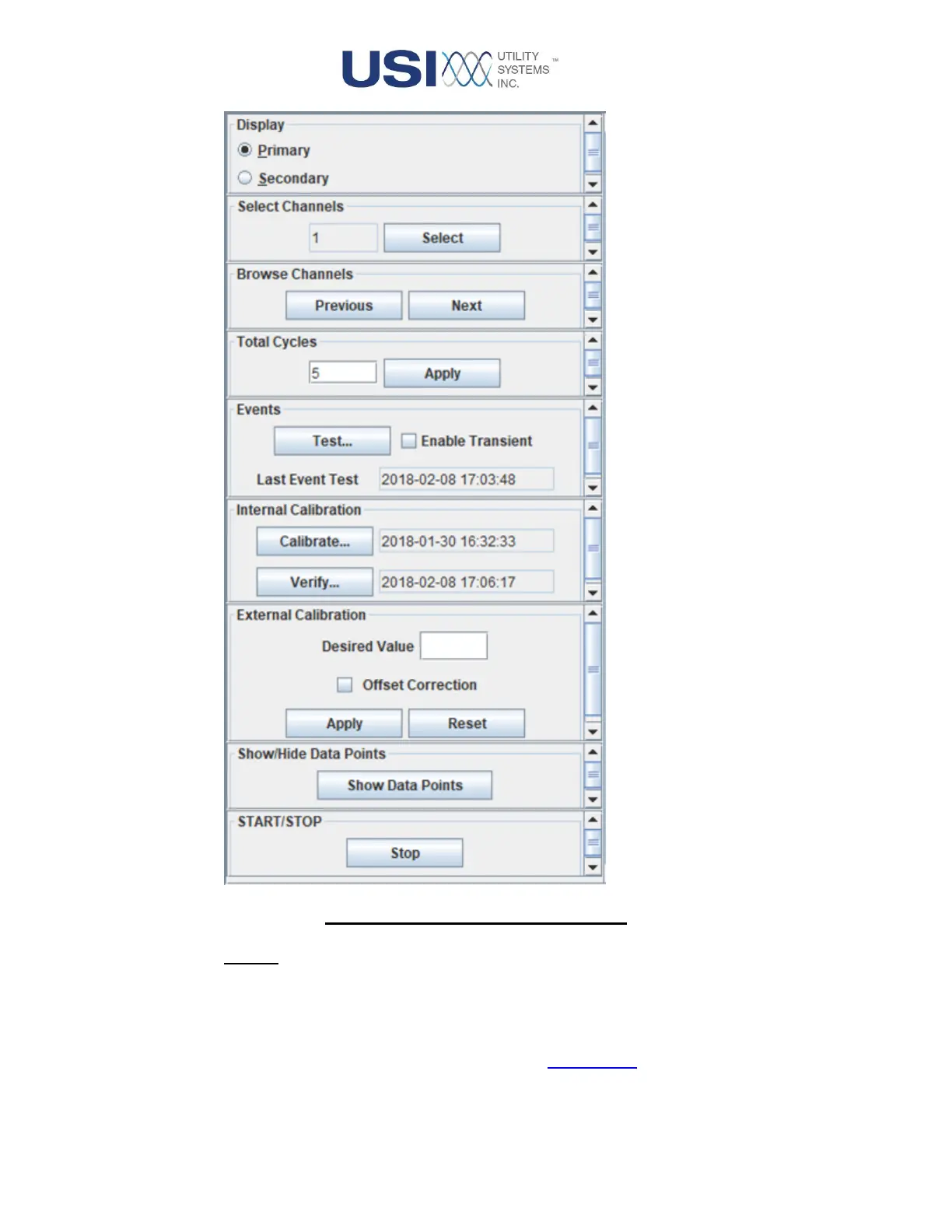

Figure 2-37 Scope Data Control Panel
o Display:
These radio buttons determine the value displayed in the RMS meter window.
▪ Primary
With this selection the value measured is multiplied by the CT/PT ratio saved in
the analog channels configuration (see Section 3.1.2).
