VEMAG HP12E - 2. Description

HP10E / HP12E / HP15E / HP20E - Dairy design 2. Description
2-1© VEMAG 2013
2. Description
2.1 Overview HP10E / HP12E / HP15E / HP20E
1 Hopper
2 Vacuum pot
3 Vacuum display
4 Vacuum control valve
5 Control panel
6 Adjustable feet
7 Step
8 Knee lever
9 Locking nut
10
Hopper release mechanism
11 Cover

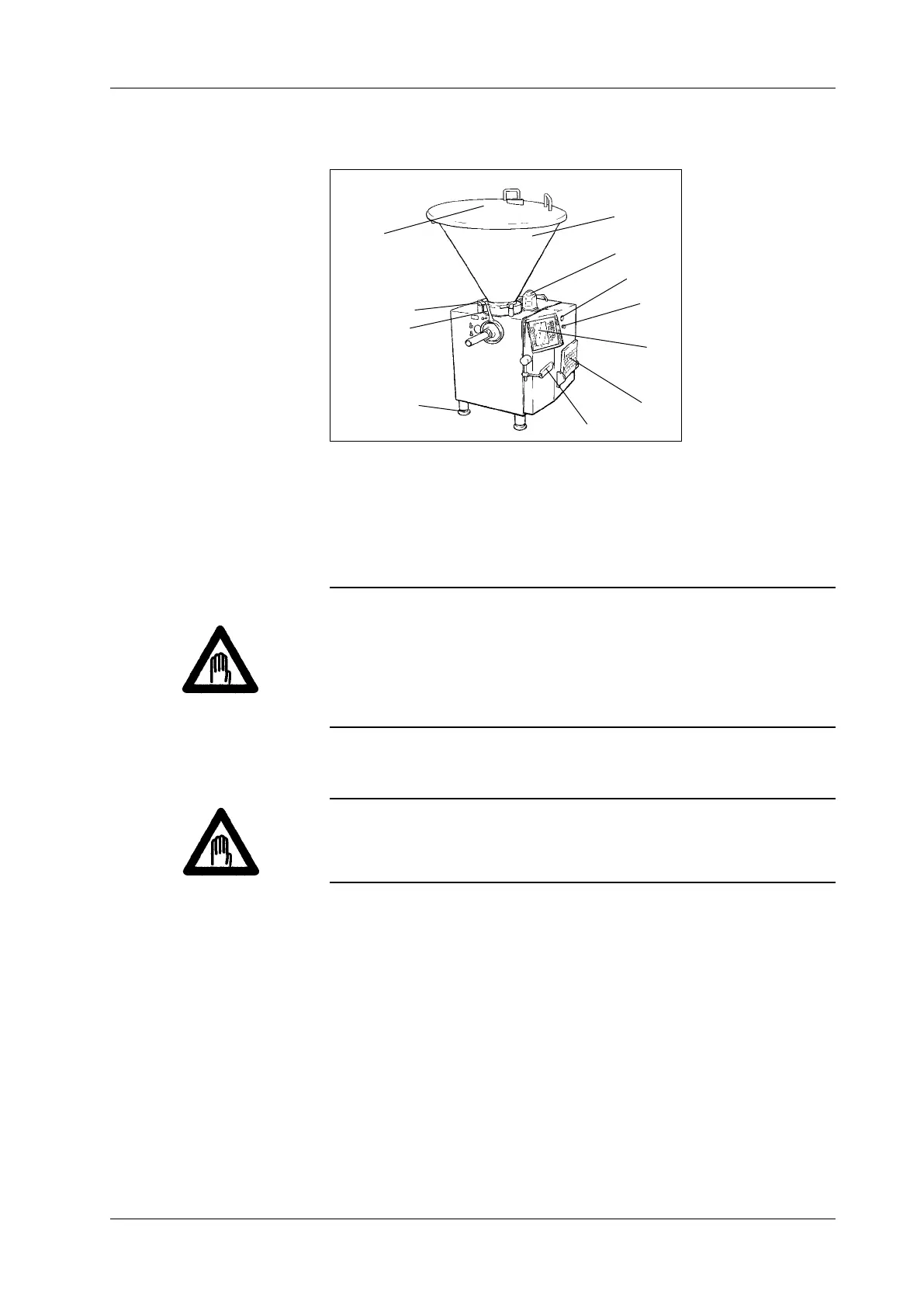

Fig. 2-1
Machine with lling horn
holder
1
2
4
3
5
7
8
6
9
10
11
2.2 Brief description
2.2.1 Hopper
The ller is equipped with a hopper for pouring in product for lling. The
hopper is tted with a safety device which switches off the machine when
the hopper is open.
Danger!
To prevent injury, switch off the machine before doing any work on the
hopper. Then switch off the main switch to disconnect the machine from
the mains. Do not climb onto the machine to check the hopper/hopper
contents or for cleaning and maintenance purposes, use only the step
provided. Under no circumstances use a ladder or other aid to get at the
hopper of the machine.
The hopper is tted with cushioning as a partial counterweight to prevent
the hopper falling shut under its own weight.
Danger!
Proceed especially carefully when opening and closing the hopper to
prevent injury (risk of crushing). Grasp the hopper only at the ange to tip
it over carefully. Open the cover only after the hopper has been opened.
