VEMAG HP12E - 8.5.2 Sliding ring (wear)

HP10E / HP12E / HP15E / HP20E - Dairy design8. Maintenance
8-10 © VEMAG 2013
8.5.2 Sliding ring (wear)
The feed unit seals must be lubricated daily every time they are cleaned.
Use only high-performance grease which is safe for food use.

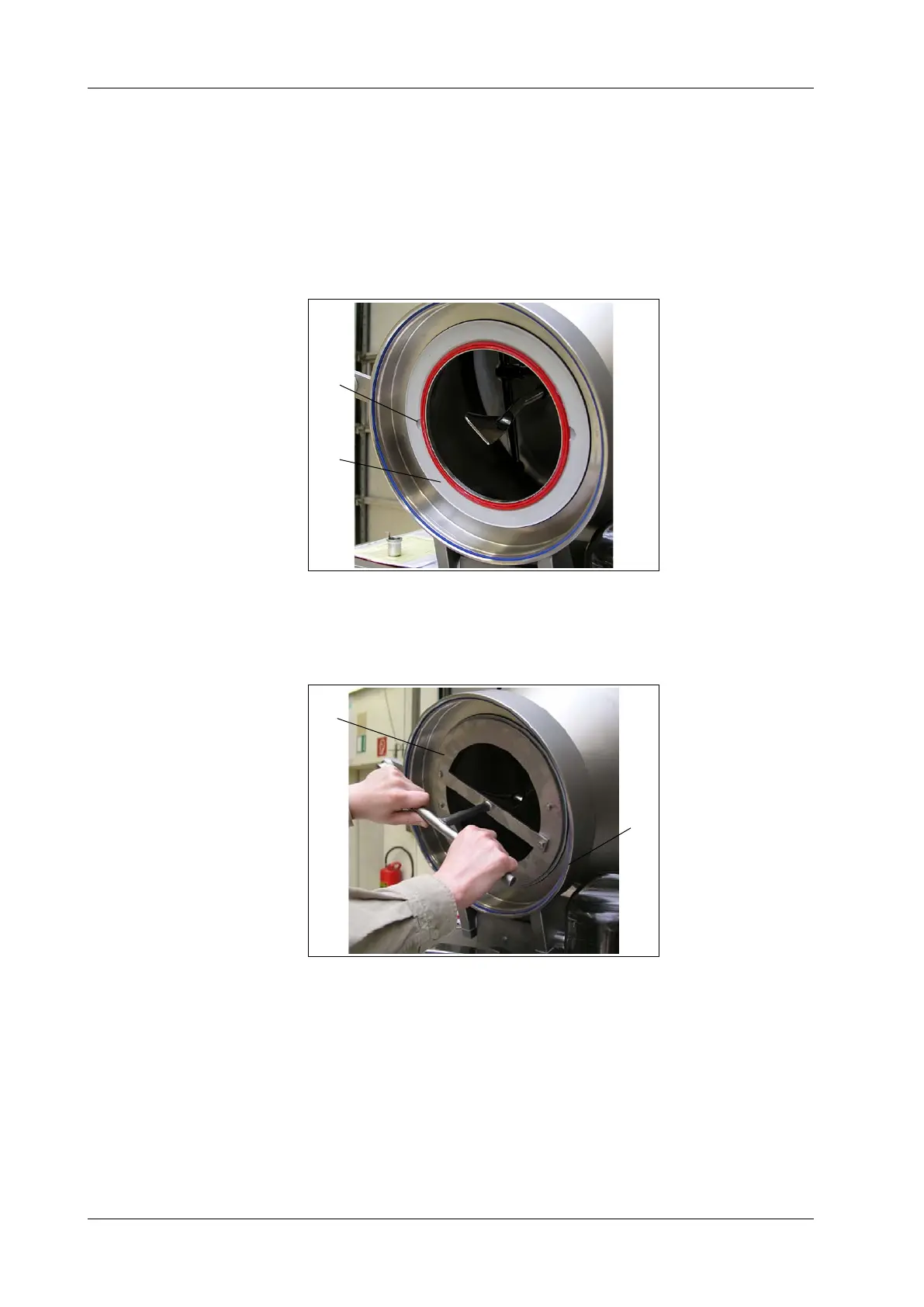

• Check the sliding ring (1) in the ange for wear and replace it, if ne-
cessary.
• The pins of the mounting tool must t into the bores (2) of the sliding
ring.
1 Ring
2 Bore
Fig. 8-9
Sliding ring
2
1
• Set the mounting tool (1) with the pins into the bores of the sliding ring
(2) and turn it counter-clockwise in order to unlock the ring.
1 Mounting tool
2 Sliding ring
Fig. 8-10
Sliding ring
2
1
