HP10E / HP12E / HP15E / HP20E - Dairy design2. Description
2-4 © VEMAG 2013

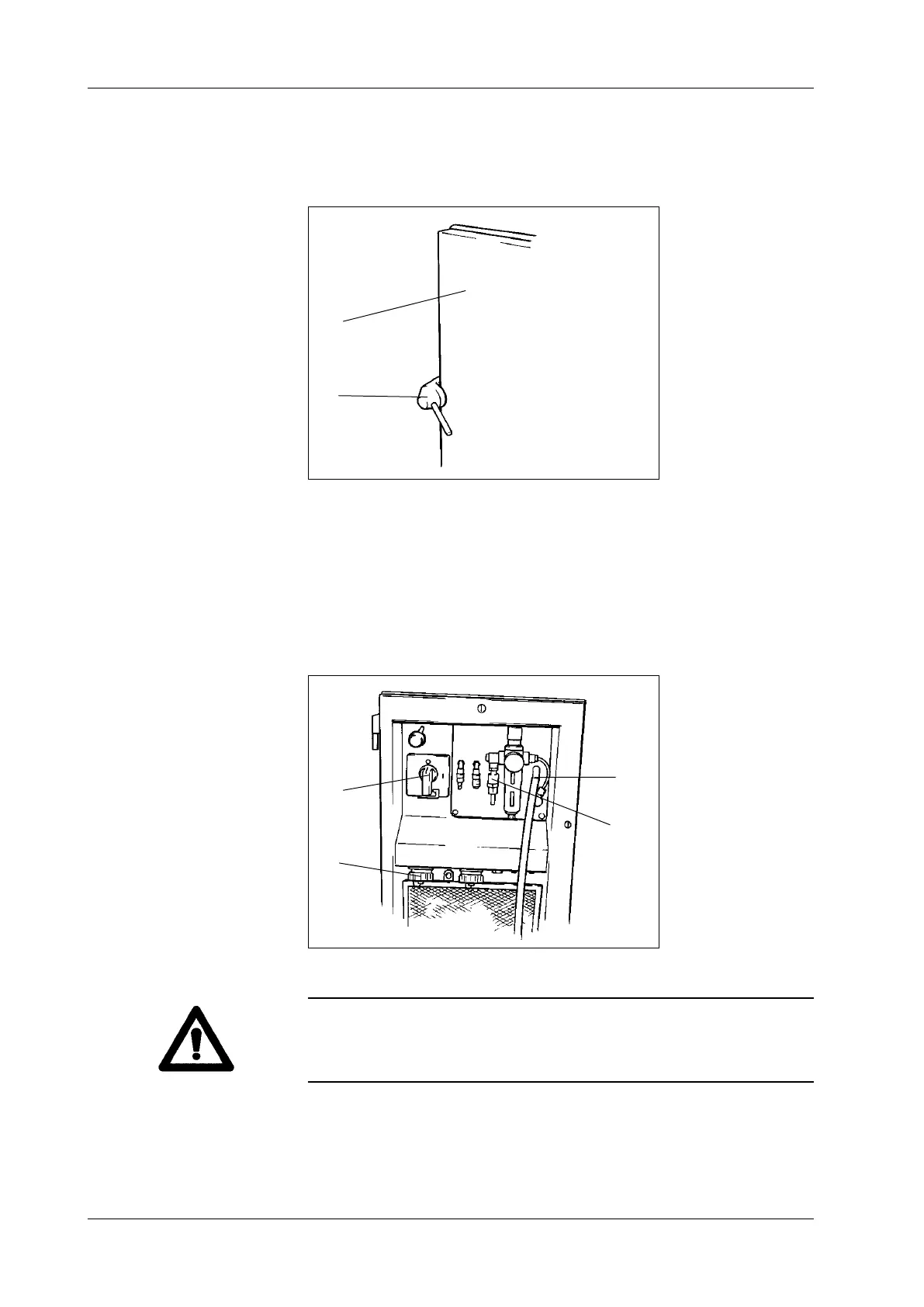

2.2.5 Controls
The controls on the rear of the machine are protected by a cover (1)
which is latched with the aid of a toggle (2).
1 Cover
2 Toggle
Fig. 2-5
Controls
1
2
Behind the cover is main switch (1) which is used to switch the power
supply to the machine on and off.
Attachments and additional devices (optional) can be connected to the
power supply of the machine via equipment socket (2). Instead of blind
covers, further sockets can be provided for supplementary equipment like
coextrusion systems (optional), for example.
1 Main switch
2 Equipment socket
3 Compressed air con-
nection for automatic
separation valve
(optional)
4 Pressure monitoring
for separation grinder
982 or separation
attachment 801
(optional)
Fig. 2-6
Controls
1
2
4
3
Warning!
Always seal off unused sockets with the appropriate protective cap to
prevent moisture and dirt penetrating. Corrosion on the contacts can lead
to switching faults.
