HP10E / HP12E / HP15E / HP20E - Dairy design 3. Installation and commissioning
3-3© VEMAG 2013
3.2 Setting up the machine
The machine must stand rmly on all four feet at all times and be as level
as possible. There may only be a slight inclination (max. 2°) in the direc-
tion of the outlet side to encourage water to drain off after cleaning. The
feet (1) can be adjusted using universal spanner (2). If necessary, the
adjustable feet must be used to compensate for any unevenness in the
oor until the machine is absolutely level.
The outlet height of the machine is 1,000 mm as standard. It can be
increased by up to 80 mm with the aid of the adjustable feet.
• Unscrew feet: height of outlet is increased
• Screw in feet: height of outlet is decreased
1 Adjustable foot
2 Universal spanner

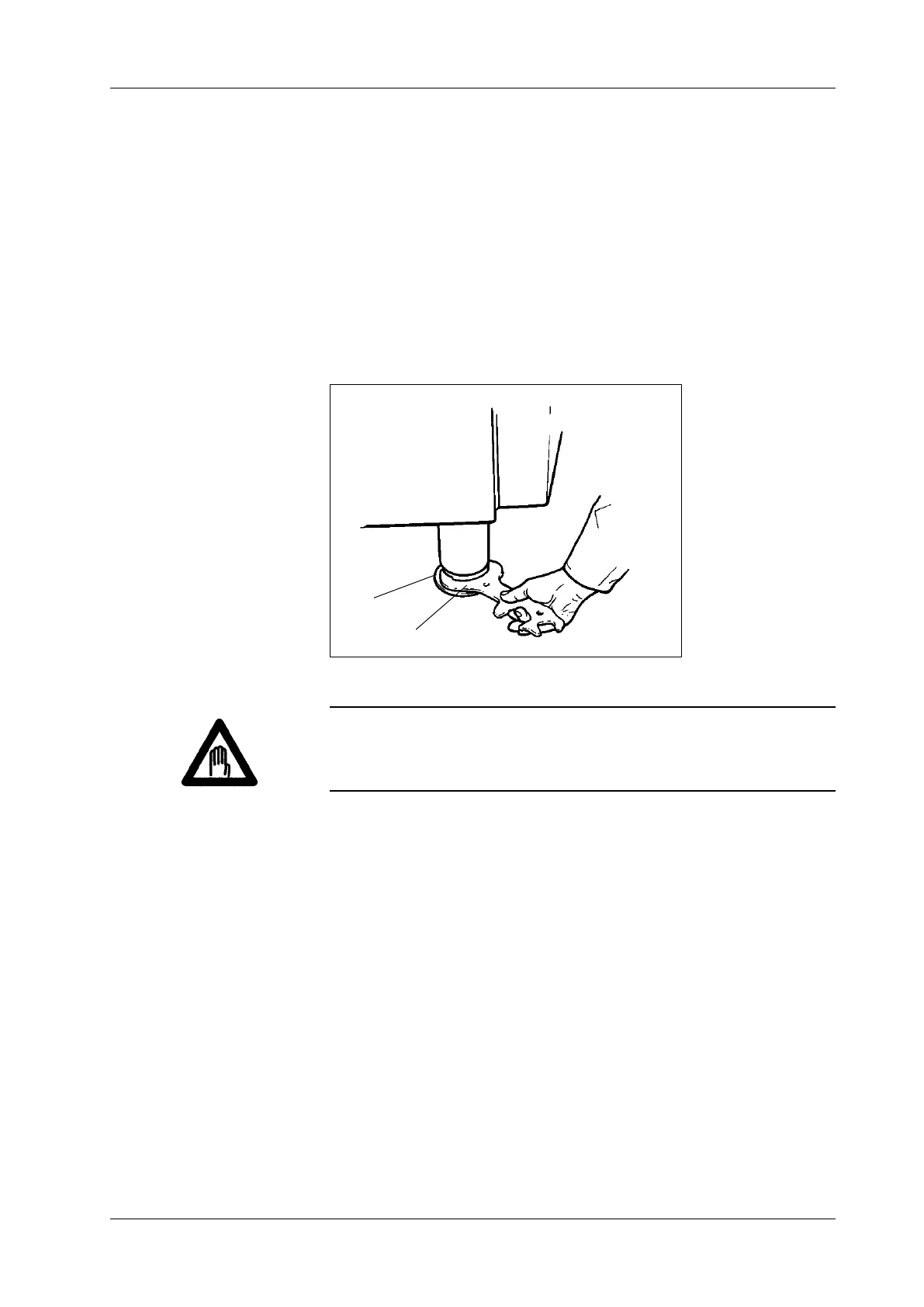

Fig. 3-4
Setting up the machine
1
2
Danger!
There is a risk of injury from the machine overturning if the feet are un-
screwed too far.
Do not unscrew the machine‘s feet by more than 80 mm.
