4. Setting up
4.1 General information
• To set up the machine, select a double screw housing, the double
screws to suit the product to be processed and the required accesso-
ries.
Danger!
To prevent injury, switch off the machine before setting up. Then switch
off the main switch to disconnect the machine from the mains.
4.2 Fitting the double screw housing
Danger!
There is a risk of crushing when tting and removing the double screw
housing and the double screws. To prevent injury, proceed extremely
carefully when tting and dismantling these parts.
• Inspect the double screw housing for residual product prior to as-
sembly.
• Push double screw housing (1) right into the feed cylinder of the ma-
chine. Inlet bore (2) for product and vacuum should face upwards.

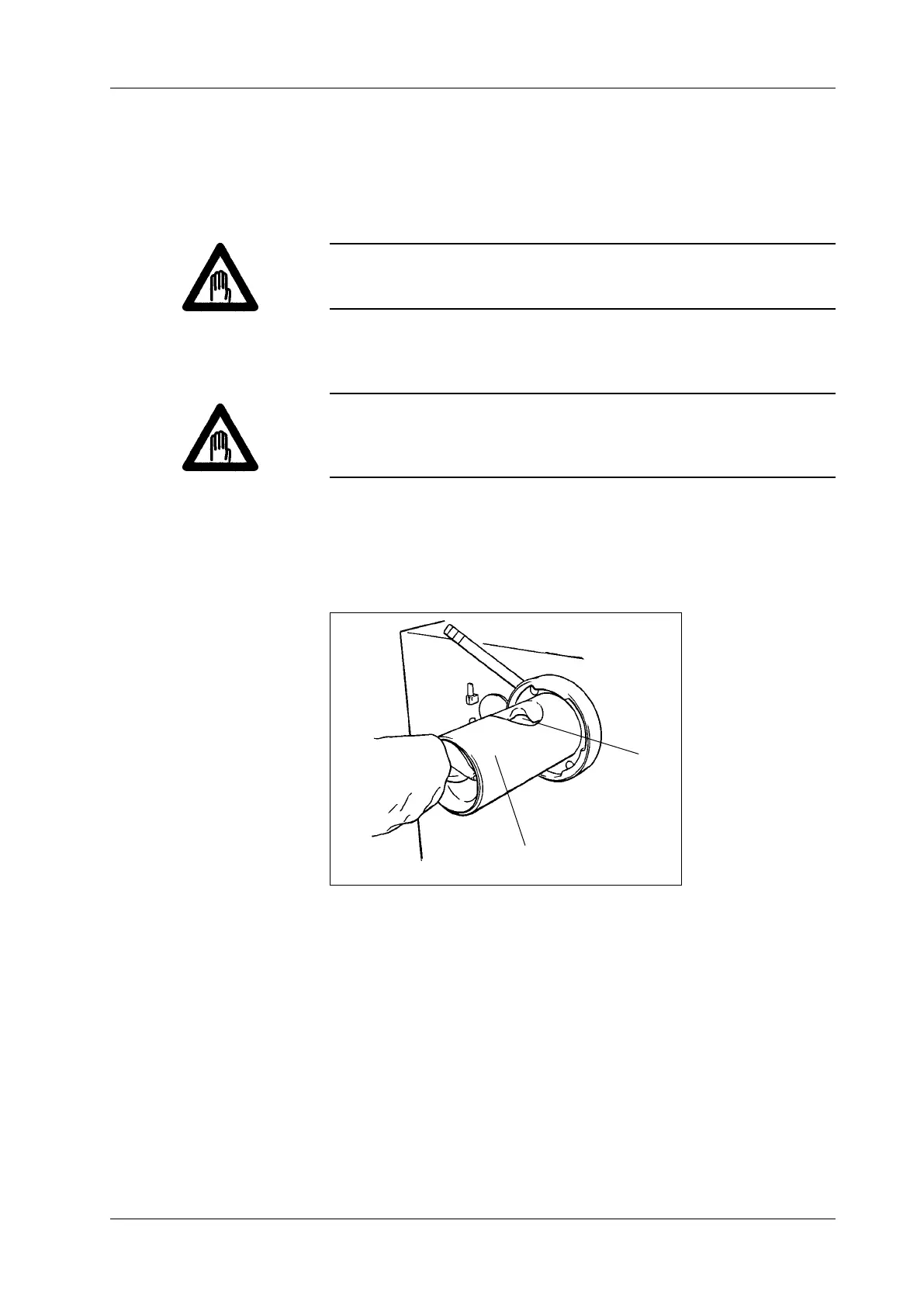

1 Double screw housing
2 Inlet bore
Fig. 4-1
Installing double screw
housing
1
2
