4.7 Adjusting the knee lever
The knee lever can be adjusted in terms of height (H), angle (W) and
projection (A) to suit the height and location of the operator.
• Undo the hexagonal nut (1) using the universal spanner (2).
• Adjust the knee lever to the desired height (H) and angle (W).
• Tighten up the hexagonal nut again.
• Move the knee lever plate (3) along the lever shaft until the desired
projection (A) is reached. The plate can be taken off the lever shaft
altogether if required.
A
H
W
1 Hexagonal nut
2 Universal spanner
3 Knee lever plate

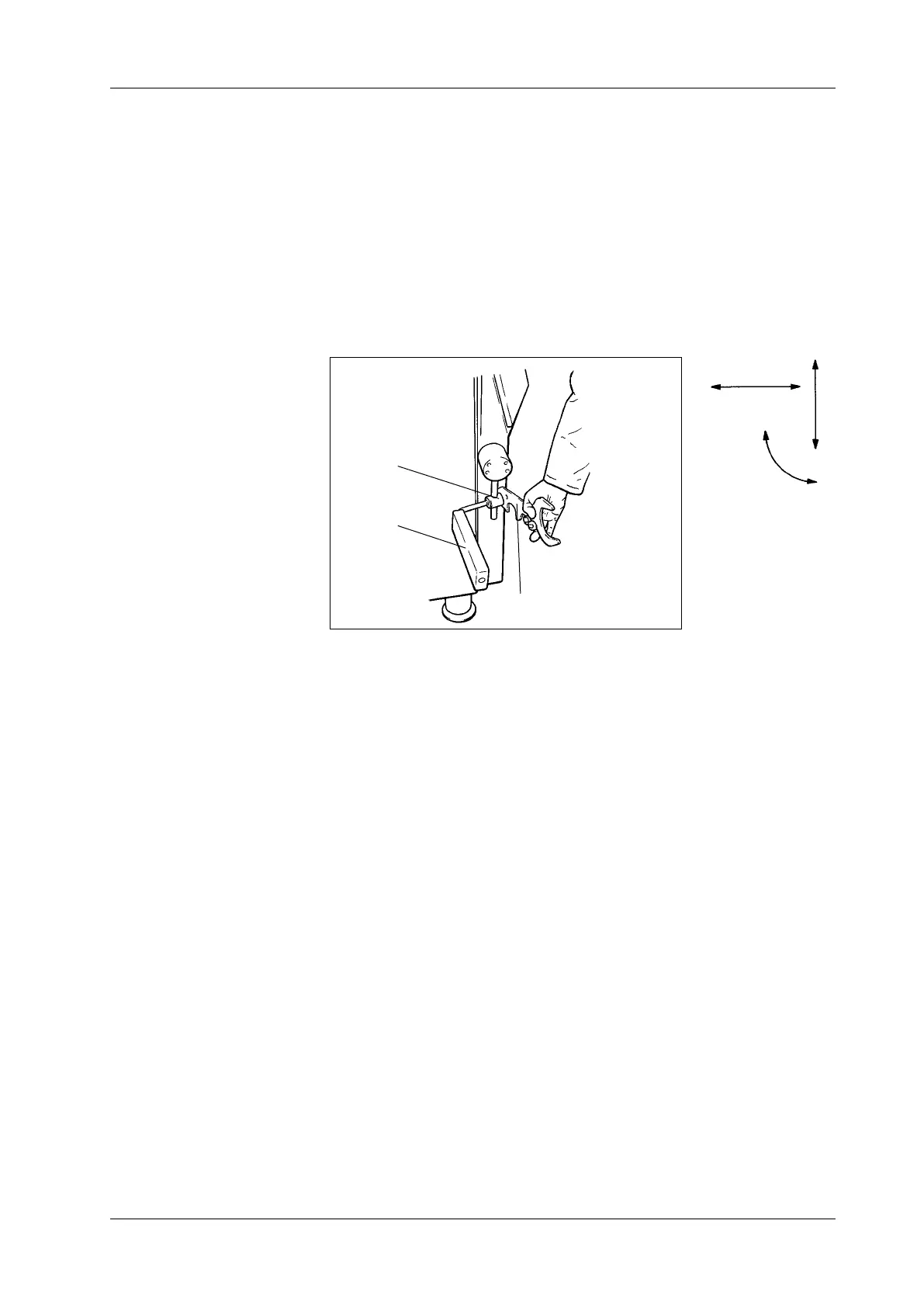

Fig. 4-7
Adjusting the knee lever
1
2
3
