Videojet DataFlex 6530 Illustrated Parts Breakdown - Rev AA 9-3
Illustrated Parts List

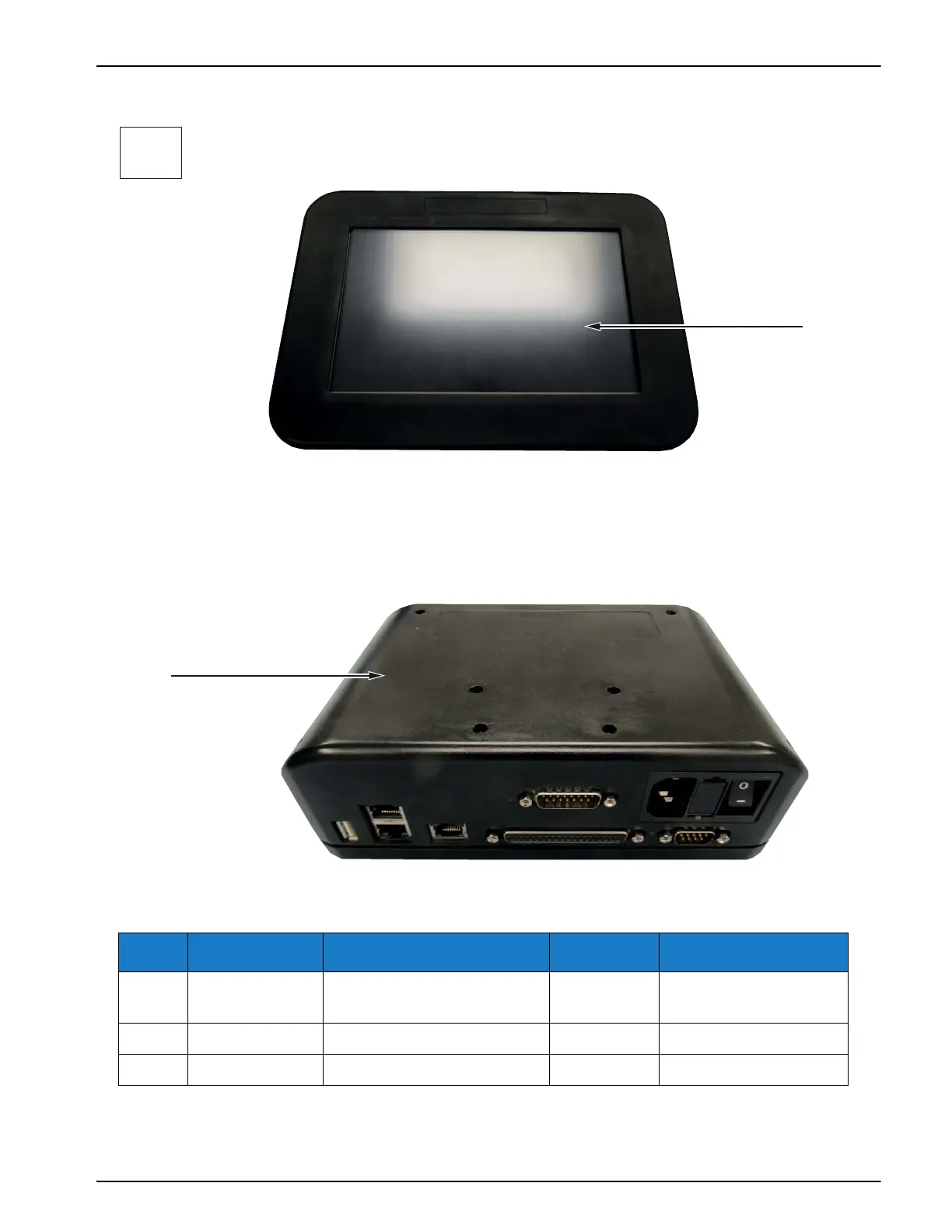

Figure 9-2: CLARiTY HMI Assembly with PSU Assembly
Item Part Number Descriptions Quantity Sub-assembly
A CLARiTY HMI Assembly
with PSU Assembly
A1 CLARiTY HMI Assembly Refer to Table 9-4
A2 PSU Assembly Refer to Table 9-5
Table 9-3: CLARiTY HMI Assembly with PSU Assembly_Parts List
A1
A2
A
