9-4 Videojet DataFlex 6530 Illustrated Parts Breakdown - Rev AA
Illustrated Parts List

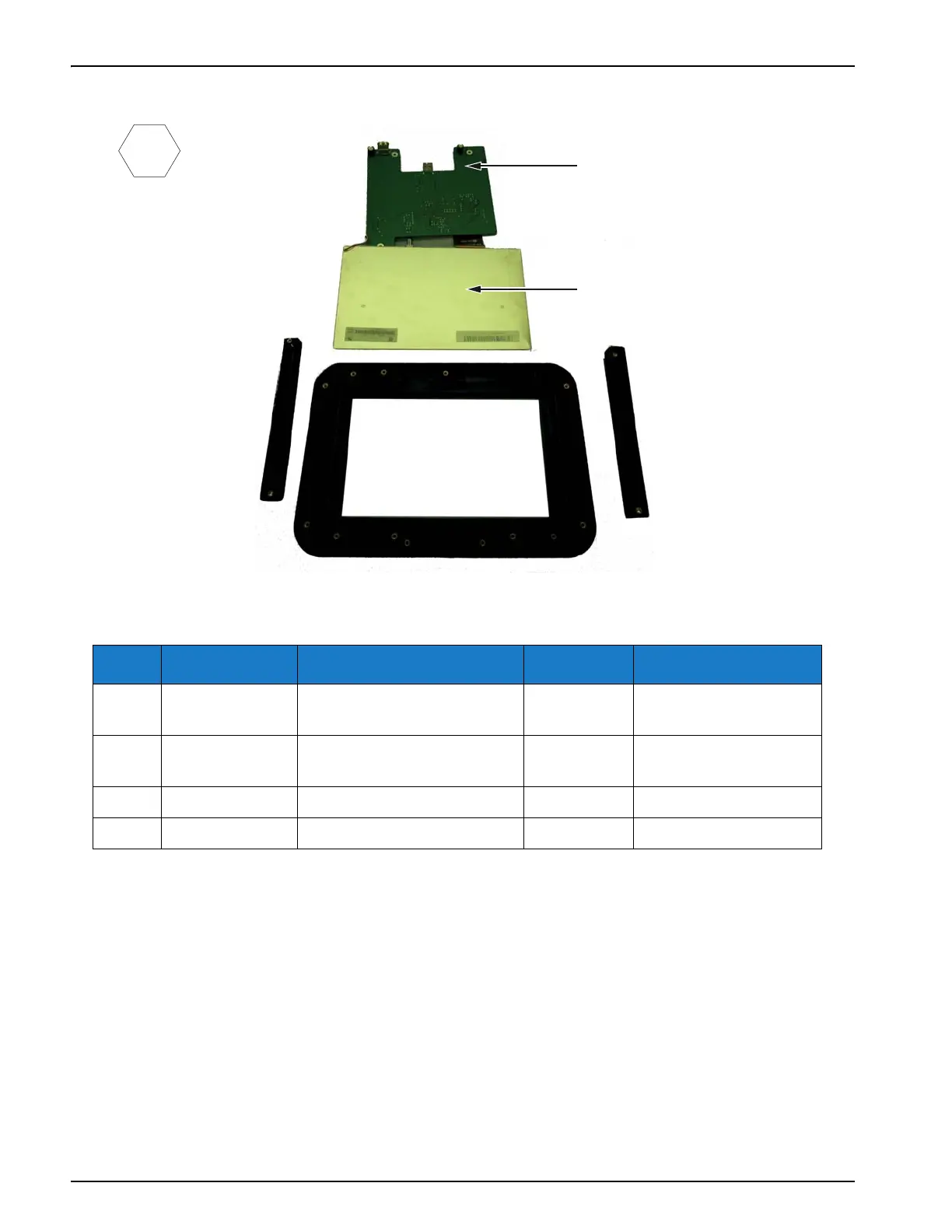

Figure 9-3: CLARiTY HMI Assembly
Item Part Number Descriptions Quantity Sub-assembly
ACLARiTY HMI Assembly
with PSU Assembly
A1 407939 Videojet DataFlex 6530
HMI Assembly
1
1 407918 CLARiTY HMI PCB 1
2 407941 LCD Touchscreen 1
Table 9-4: CLARiTY HMI Assembly_Parts List
A1
1
2
