Videojet DataFlex 6530 Service Manual - Rev AA C-3

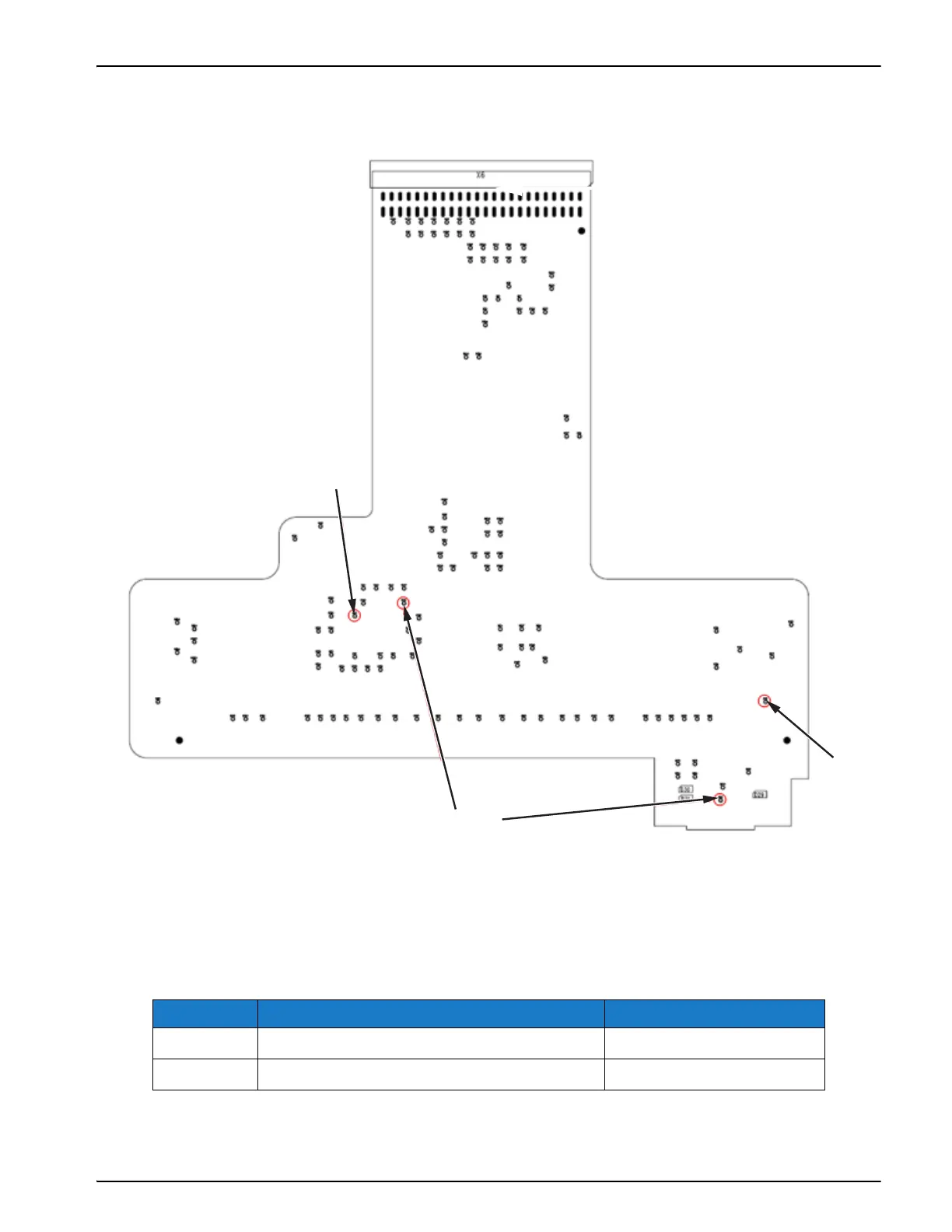

C.3 Printhead PCB Test Points (RH)
Note: ICT 54, ICT81 DGND test points can be used as DGND reference.
Test Point Voltage/PCB Label and location Acceptable Voltage Range
ICT 8 +3V3 (bottom right segment of PCB) 3.23 - 3.36 V
ICT 51 OPT_3V3 (bottom mid left segment of PCB) 3.16 - 3.28 V
Table C-2: Printhead PCB Test Points
ICT8
ICT51
DGND
Figure C-2: Printhead PCB Test Points
