A configure master printer dialog box appears (Figure E-7).
3. Enter an identification name for the printer in the name field.
These names can be viewed on the screen of the Master printer user interface and are useful
for identification purposes. Names can be edited from the default values of 'Printer 1…
Printer 4', if required e.g. 'Master…. Slave 1'
Note: The 'Check boxes' on the left hand side of the dialog box indicate how many Slaves are to be
connected.
4. Click on the check boxes to select the slave printers. The dialog box allows only the selection
of consecutively-numbered Slaves starting with Slave 1.
5. Select either Group Job Select or Group Control from the Master/Slave level drop -down box
(refer “Master/Slave Terminology” on page E-1).
When at least one Slave is enabled and a Master/Slave level has been selected, the 'OK'
button becomes available.
6. Click OK button, to program the Videojet DataFlex 6530 printer with the selected
configuration.

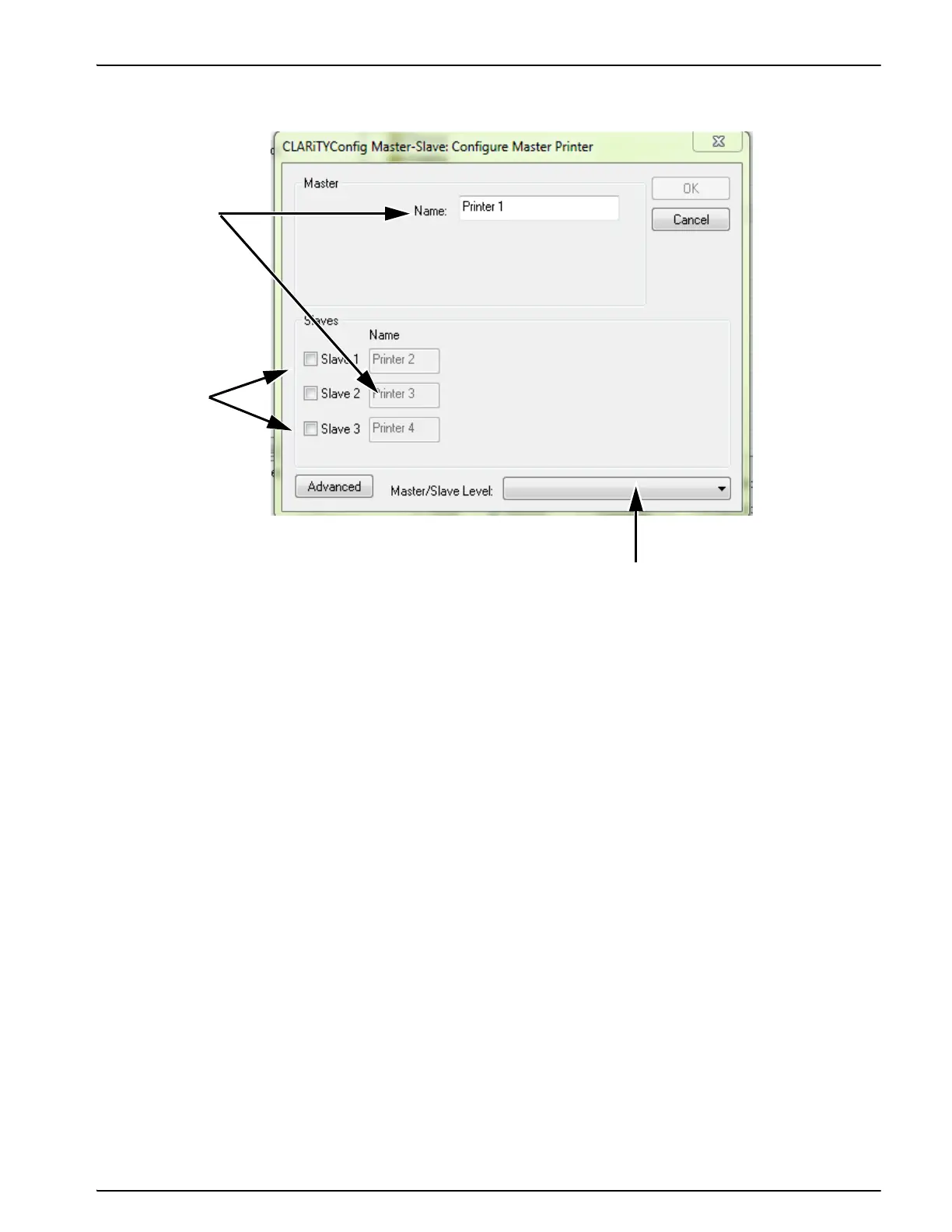

Figure E-7: Configure Master Printer Dialog Box
1
2
3
1.Names Fields
2.Check Boxes
3.Master/Slave Level Drop - Down List
