Maintenance
3326−2/A2
Winterthur Gas & Diesel Ltd.
5/ 10

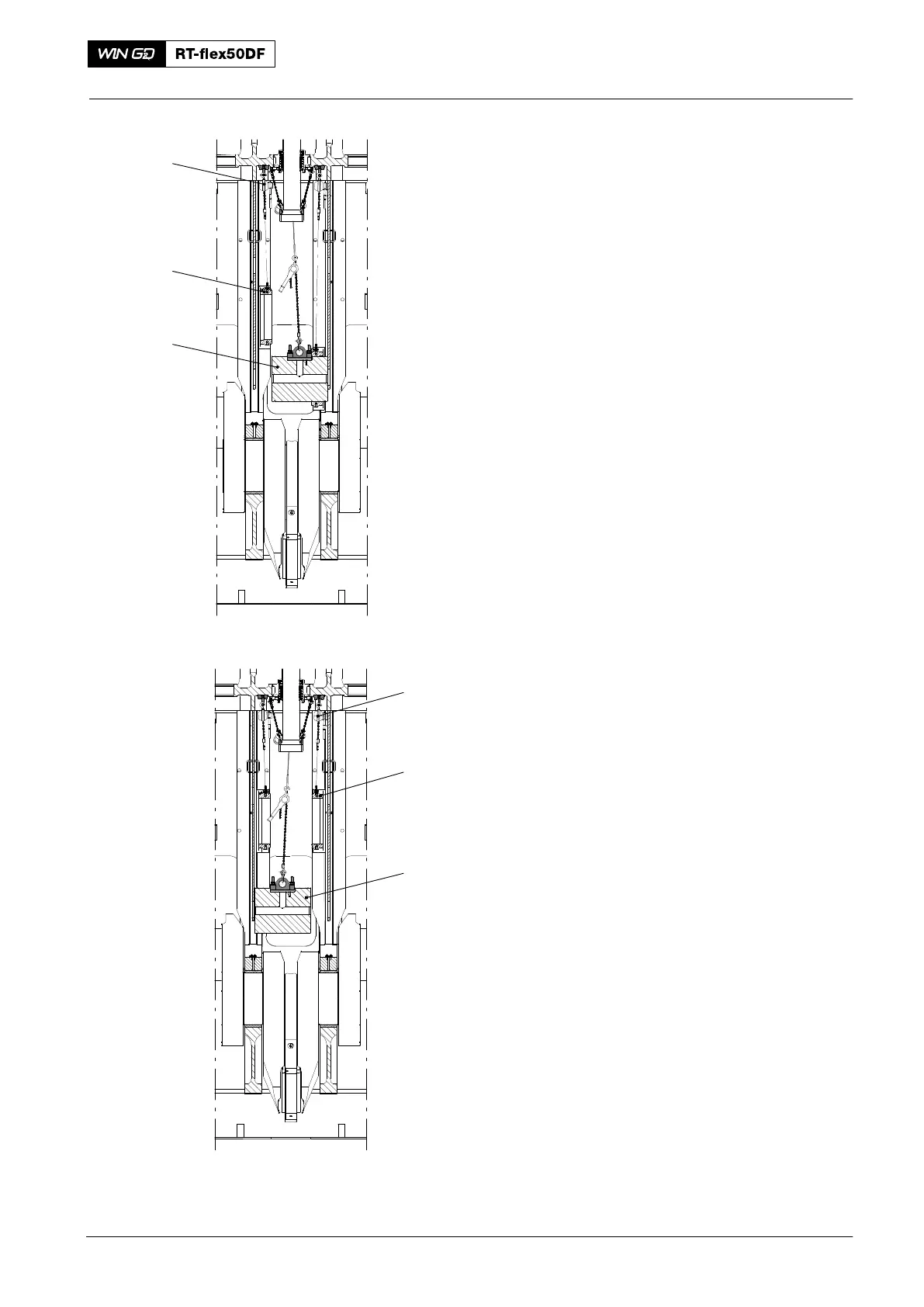

19) Move the crosshead pin (1, Fig. 7) to
the driving end as shown.
20) Operate the manual ratchet (H4) to lift
the guide shoe (2).
21) Move the crosshead pin (1) to the free
end.
22) Operate the manual ratchet (H5) to lift
the guide shoe (3).
Crosshead Pin − Removal and Installation
2016
DRIVING END
H4
013.243/05
H5
3
1
FREE END
013.244/05
Fig. 7
2
1
