Maintenance
3403−1/A1
Winterthur Gas & Diesel Ltd.
3/ 9
9) Operate the turning gear to move the
crank to BDC.

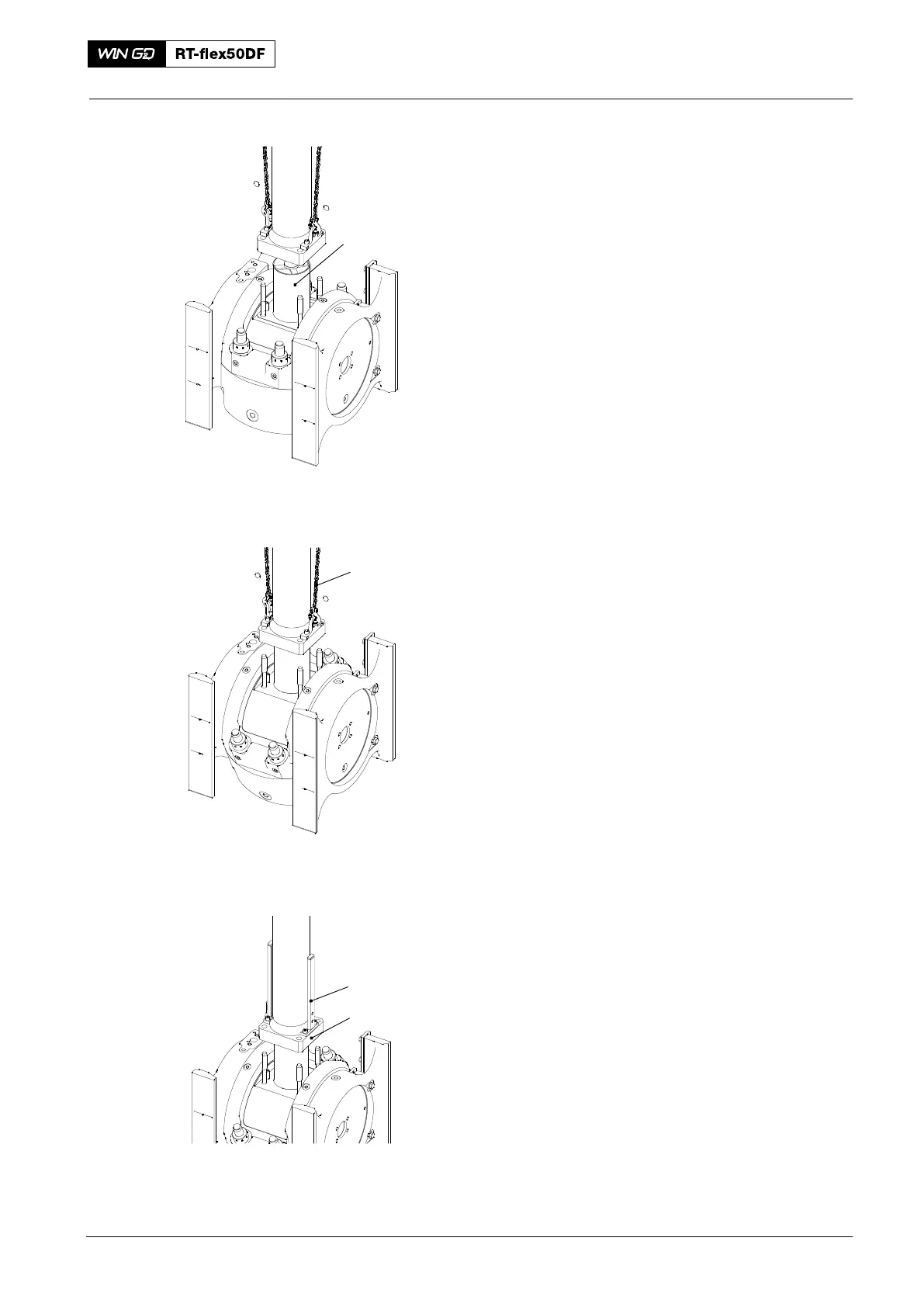

10) Put the spacer (94344A, Fig. 5) on the
crosshead pin (1).
11) Operate the turning gear to move the
crosshead up sufficiently so there is no
tension on the chains (94344B, Fig. 6).
12) Remove the chains 94344B the eye
bolts (EB) and the lifting bosses
(94333A)..
13) Attach the two distance holders (94345,
Fig. 7) to the piston rod foot (1) with the
four screws.
Piston: Removal and Installation
2016
94344A
Fig. 5
94344B
Fig. 6
WCH03082
WCH03082
1
94345
Fig. 7
