Maintenance
6606−2/A1
Winterthur Gas & Diesel Ltd.
7/ 9

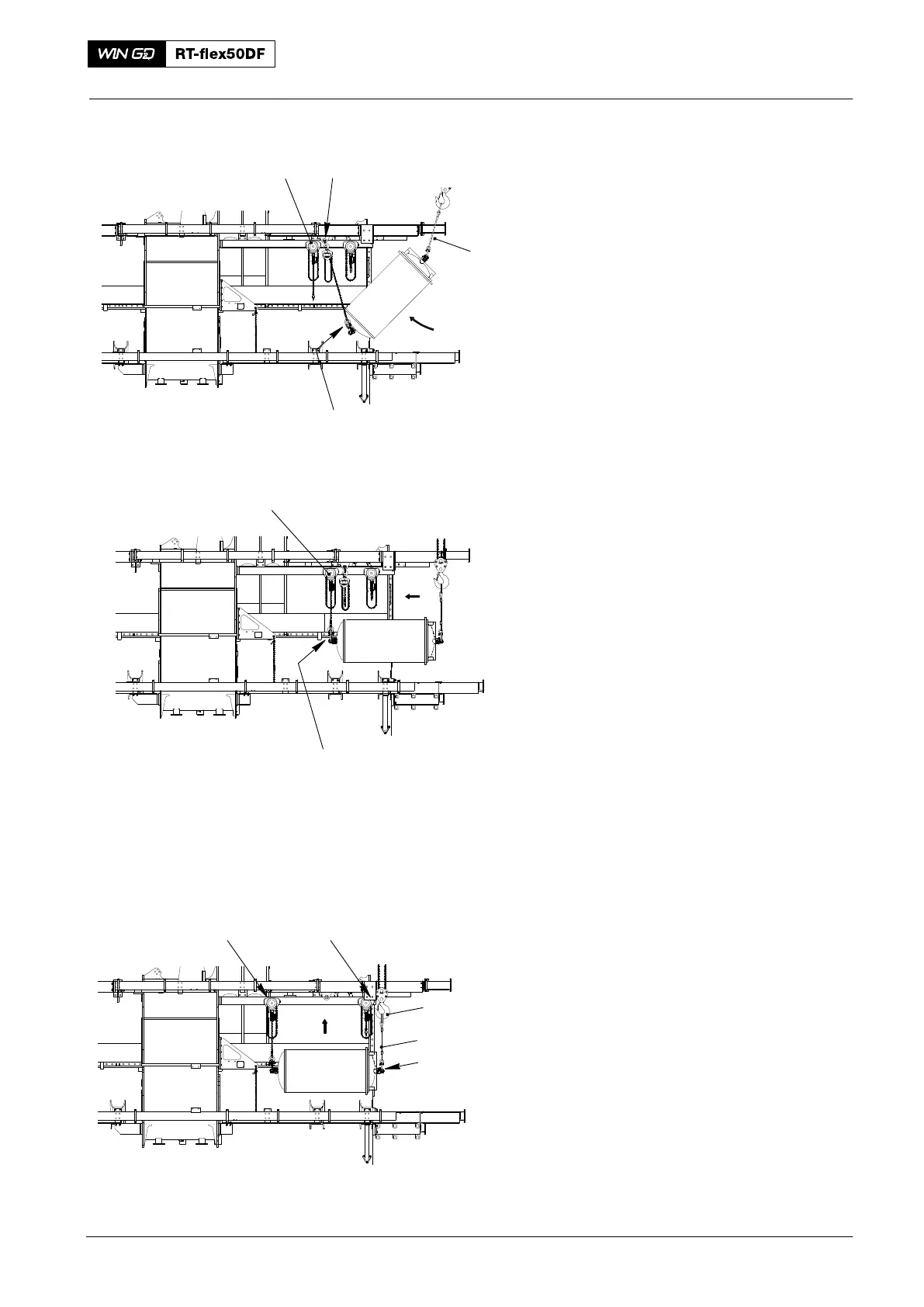

9) Attach the manual ratchet (H1, Fig. 12)
to the lifting plate (94663−IL).
10) Operate the manual ratchet (H1) to lift
the SAC as shown.
11) Attach the chain block (H2) to the eye
bolt (94040−M30).
12) Remove the manual ratchet (H1) from
the lifting plate (94663−IL).
13) Operate the engine room crane and the
chain block (H2) to move the SAC to
the horizontal position.
14) Operate the engine room crane and the
chain block (H2, Fig. 13) to move the
SAC adjacent to the opening.
15) Attach the chain block (H3) to the eye
bolt (94040−M30).
16) Operate the chain block (H3) to hold
the weight of the SAC.
17) Remove the hook (1) of the engine
room crane.
18) Operate the chain blocks (H2, H3) to lift
the SAC to the applicable height.
Scavenge Air Cooler: Removal and Installation 7 Cyl.
2016
WCH00115
H2
94666
H1
94663−IL
Fig. 12
WCH00115
94663−IL
H2
94666
94040−M3
WCH00115
H3
1
H2
Fig. 13
