ENGINE
B2420, WSM
1-S31

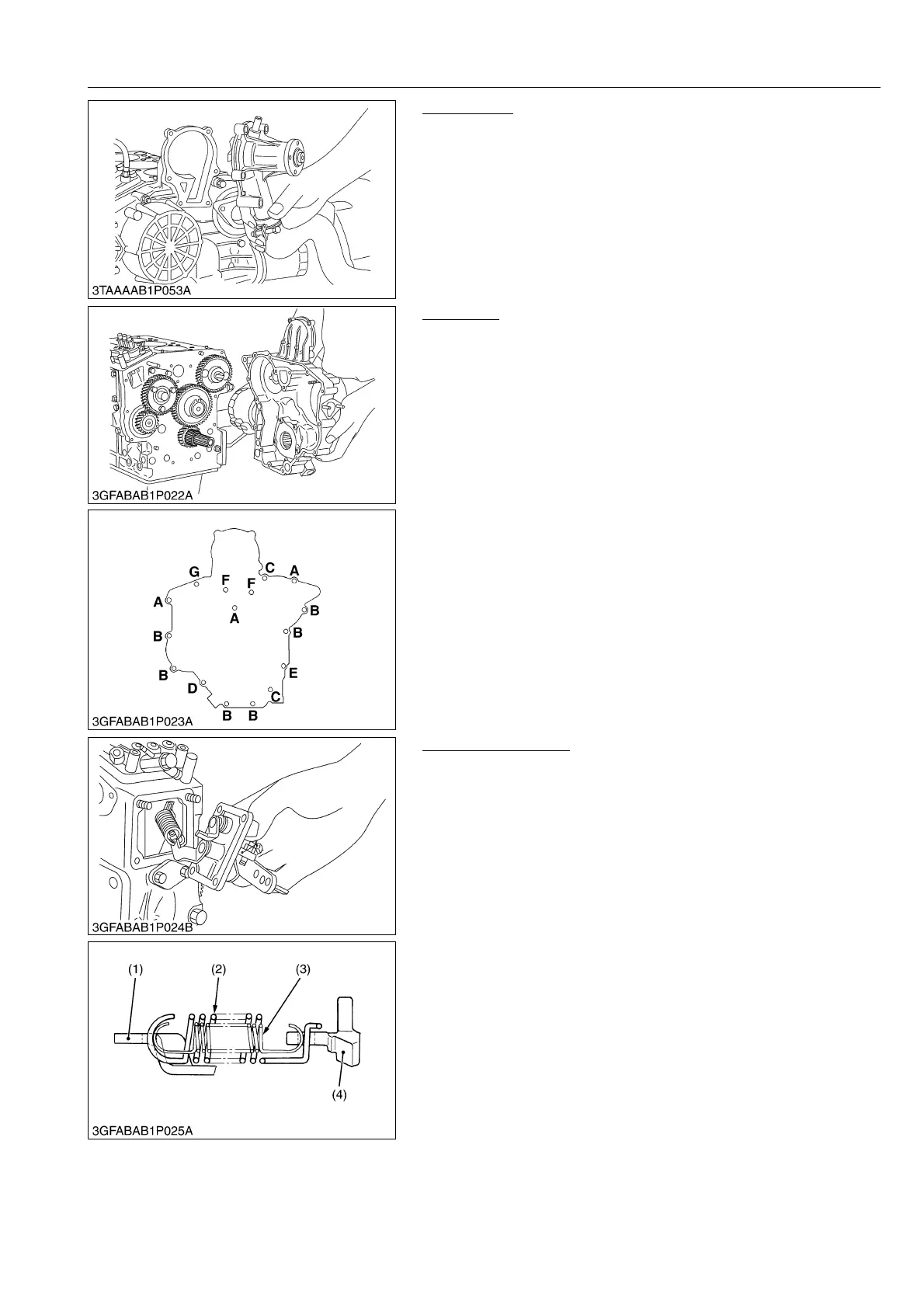

Water Pump
1. Remove the water pump flange.
(When reassembling)
• Before installing the water pump flange gasket, apply liquid
gasket (Three Bond 1215 or equivalent) to the both side.
9Y1210436ENS0041US0
Gear Case
1. Remove the gear case.
2. Remove the crankshaft collar and O-ring.
(When reassembling)
• Replace the gear case gasket with a new one.
• Be sure to set the O-ring on the crankshaft.
• Apply a thin film of engine oil to the oil seal, and install it, noting
the lip come off.
• Length of the gear case mounting screws. (Refer to the figure.)
A: 45 mm (1.8 in.)
B: 50 mm (2.0 in.)
C: 55 mm (2.2 in.)
D: 59 mm (2.3 in.)
E: 68 mm (2.7 in.)
F: 80 mm (3.1 in.)
G: Nut
9Y1210436ENS0042US0
Speed Control Plate
1. Remove the speed control plate and governor lever (1) from the
governor springs 1 (2) and 2 (3).
(When reassembling)
• Securely catch the governor springs 1 and 2 on the governor
lever as shown in the figure.
• Apply a liquid gasket (Three Bond 1215 or equivalent) to both
sides of the speed control plate gasket.
9Y1210436ENS0043US0
(1) Governor Lever
(2) Governor Spring 1
(3) Governor Spring 2
(4) Fork Lever 2
To Next Page
