3. CHARGING SYSTEM
[1] WITHOUT OPC MODEL

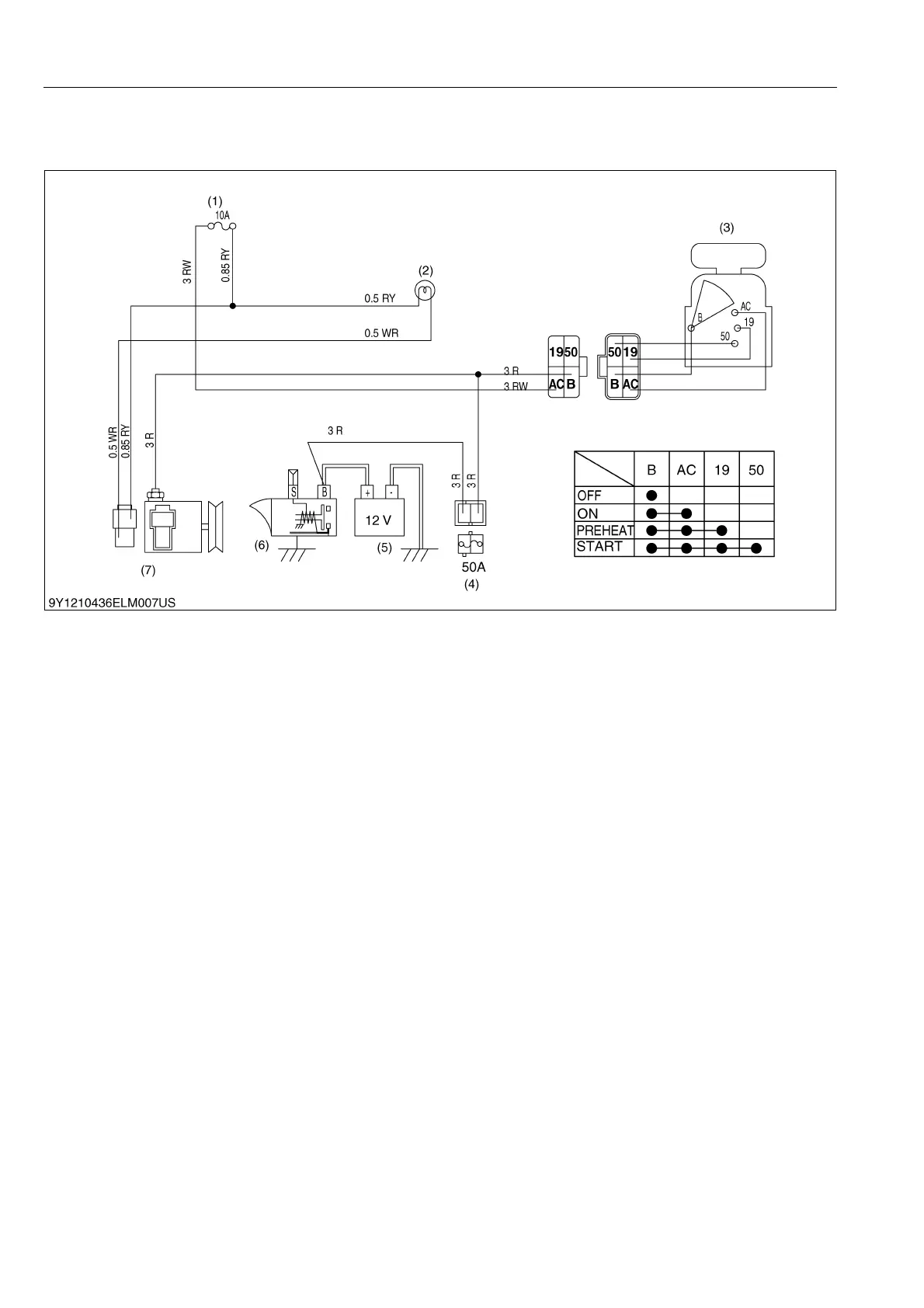

The charging system supplies electric power for various electrical devices and also charges the battery while the
engine runs. It consists of a alternator.
9Y1210436ELM0007US0
(1) Fuse
(2) Charging Lamp
(3) Main Switch
(4) Slow Blow Fuse
(5) Battery
(6) Starter
(7) Alternator
