TRANSMISSION
B2420, WSM
3-M4

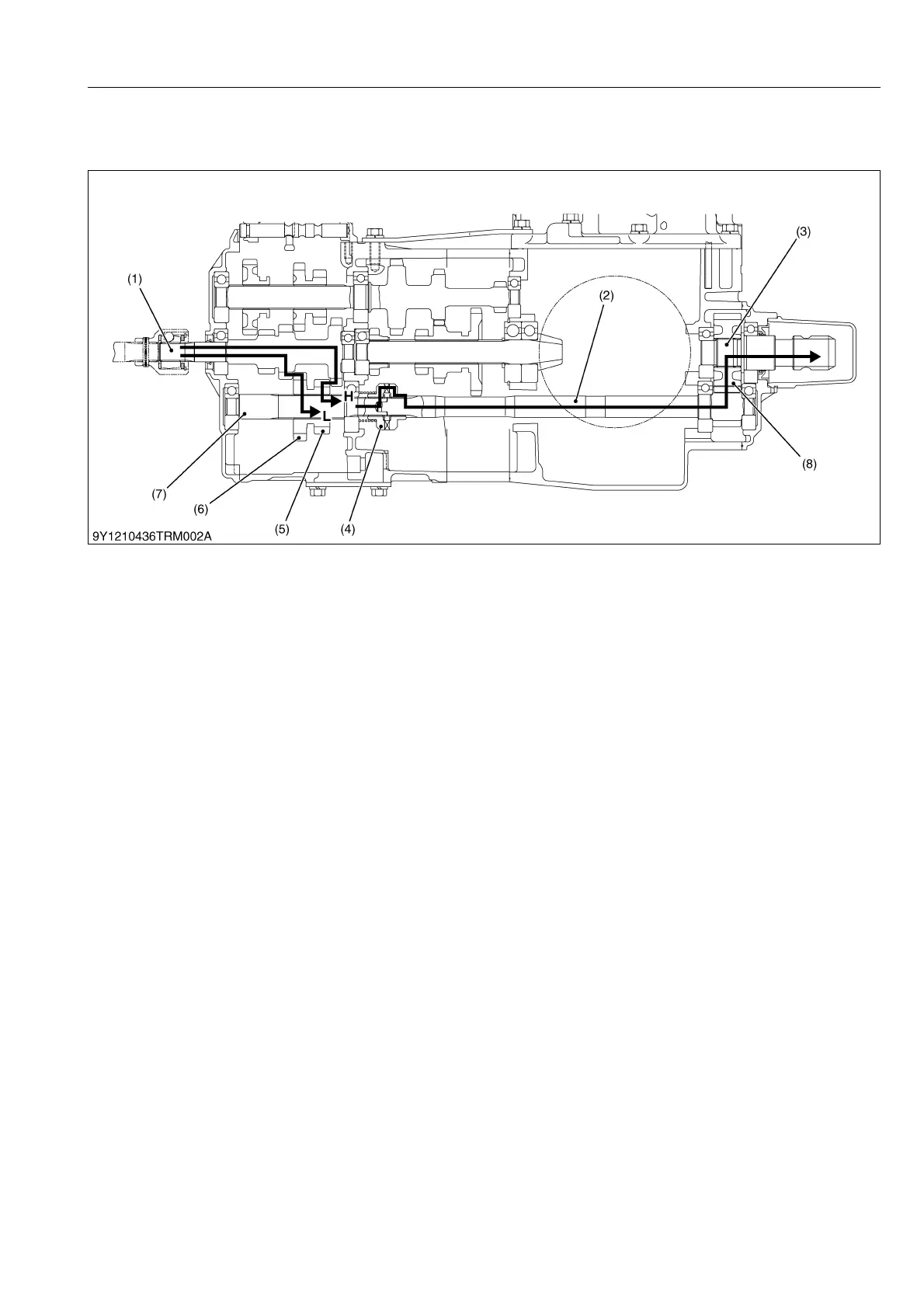

3. POWER TRAIN FOR PTO GEAR
[1] PTO SHIFT SECTION
Q Low Range
2nd Gear Shaft → 13T Gear (1) → 17T Gear (6) → Shifter → 3rd Shaft (7) → Spline Boss → One-way Clutch (4)
→ Spline Boss → 5th Gear Shaft (2) → 11T Gear (2) → 24T Gear (8) → Spline Boss → PTO Shaft (3)
Q High Range
2nd Gear Shaft → 18T Gear → 13T Gear (5) → Shifter → 3rd Shaft (7) → Spline Boss → One-way Clutch (4) →
Spline Boss → 5th Gear Shaft (2) → 11T Gear (2) → 24T Gear (8) → Spline Boss → PTO Shaft (3)
9Y1210436TRM0005US0
(1) 2nd Gear Shaft with
15T-13T-18T Gear
(2) 5th Gear Shaft with 11T Gear
(3) PTO Shaft
(4) One-way Clutch
(5) 13T Gear
(6) 17T Gear
(7) 3rd Shaft
(8) 24T Gear
