wsm B2420 - Disassembling and Assembling; Separating Front Axle

FRONT AXLE
B2420, WSM
6-S5
[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Front Axle

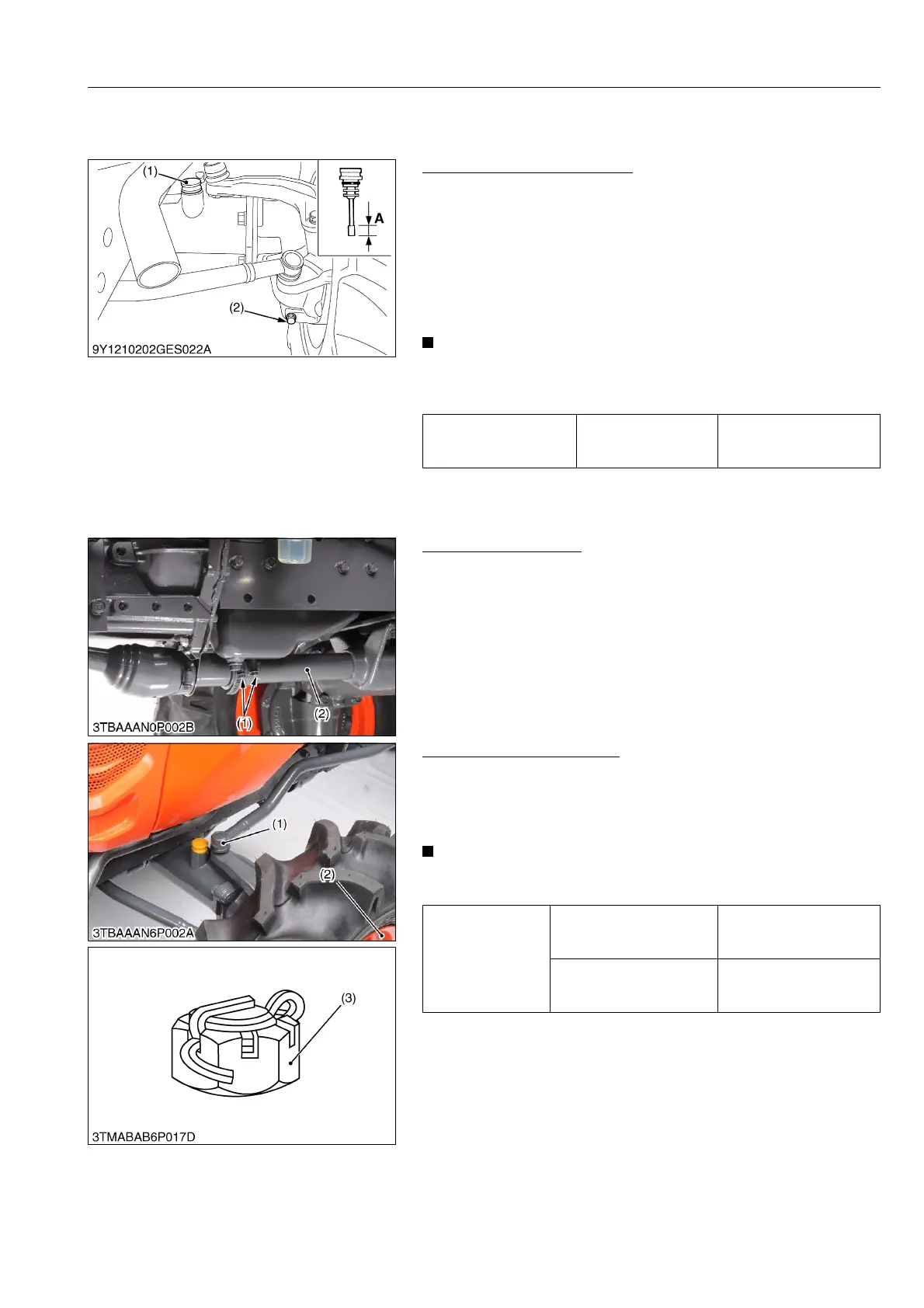

Draining Front Axle Case Oil
1. Place the oil pans underneath the front axle case.
2. Remove the both right and left hand side drain plugs (2) and
filling plug (1) to drain the oil.
3. After draining, reinstall the drain plugs (2).
(When refilling)
• Fill with new oil up to the upper notch on the dipstick.
• After ten minutes, check the oil level again, add oil to prescribed
level.
IMPORTANT
• Use KUBOTA UDT or SUPPER UDT fluid or SAE 80, 90 gear
oil. Refer to "LUBRICNATS, FUEL AND COOLANT". (See
page G-8.)
9Y1210436FAS0006US0
Propeller Shaft Cover
1. Loosen the clamps and slide the propeller shaft cover (2) to the
rear.
9Y1210436FAS0007US0
Front Wheel and Drag Link
1. Place the disassembling stand under the front axle frame.
2. Remove the front wheels (2).
3. Remove the drag link (1) with a tie-rod end lifter.
(When reassembling)
IMPORTANT
• Do not loosen the slotted nut (3) to align the hole.
• Install the cotter pin as shown in the figure.
9Y1210436FAS0008US0
Front axle case oil Capacity
3.2 L
3.4 U.S.qts.
2.8 lmp.qts.
(1) Filling Plug with Dipstick
(2) Drain Plug
A: Oil level is acceptable within this
range.
(1) Clamp (2) Propeller Shaft Cover
Tightening torque
Front wheel mounting nut
80.0 to 110 N·m
8.20 to 11.2 kgf·m
59.0 to 81.1 lbf·ft
Slotted nut
18 to 35 N·m
1.9 to 3.5 kgf·m
14 to 25 lbf·ft
(1) Drag Link
(2) Front Wheel
(3) Slotted Nut
KiSC issued 06, 2012 A
