FRONT AXLE
B2420, WSM
6-S6

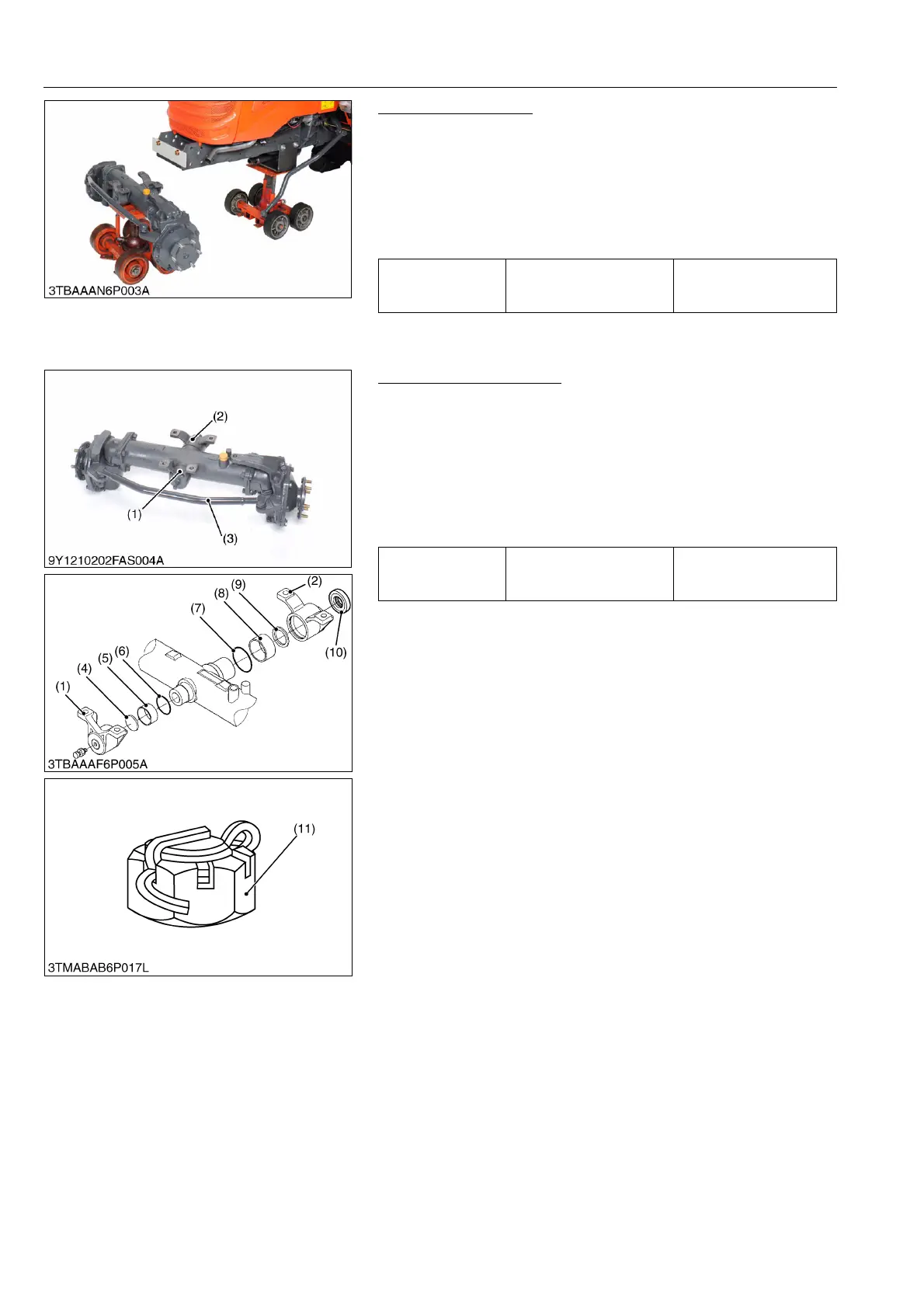

Front Axle Assembly
1. Remove the front axle brackets (Front side and rear side)
mounting screws.
2. Separating the front axle from the front axle frame.
(When reassembling)
• After mounting the front axle assembly to the front axle frame,
be sure to adjust the front axle rocking force. (See page 6-S4.)
• Apply grease to the splines of the propeller shaft and coupling.
9Y1210436FAS0009US0
(2) Disassembling Front Axle
Tie-rod and Axle Bracket
1. Remove the slotted nuts and remove the tie-rod (3) with a
tie-rod end lifter.
2. Remove the front axle brackets (1), (2).
(When reassembling)
• Apply grease to the thrust collars (4), (9), O-ring (6), (7), bushes
(5), (8) and oil seal (10).
• After tightening the slotted nut (11) to the specified torque,
install the cotter pin as shown in the figure.
9Y1210436FAS0010US0
Tightening torque
Front axle bracket
mounting screw
124 to 147 N·m
12.6 to 15.0 kgf·m
91 to 108 lbf·ft
Tightening torque Slotted nut
18 to 35 N·m
1.9 to 3.5 kgf·m
14 to 25 lbf·ft
(1) Front Axle Bracket (Front)
(2) Front Axle Bracket (Rear)
(3) Tie-rod
(4) Thrust Collar
(5) Bush
(6) O-ring
(7) O-ring
(8) Bush
(9) Thrust Collar
(10) Oil Seal
(11) Slotted Nut
KiSC issued 06, 2012 A
