wsm B2420 - Check Points of Every 200 Hours

GENERAL
B2420, WSM
G-24

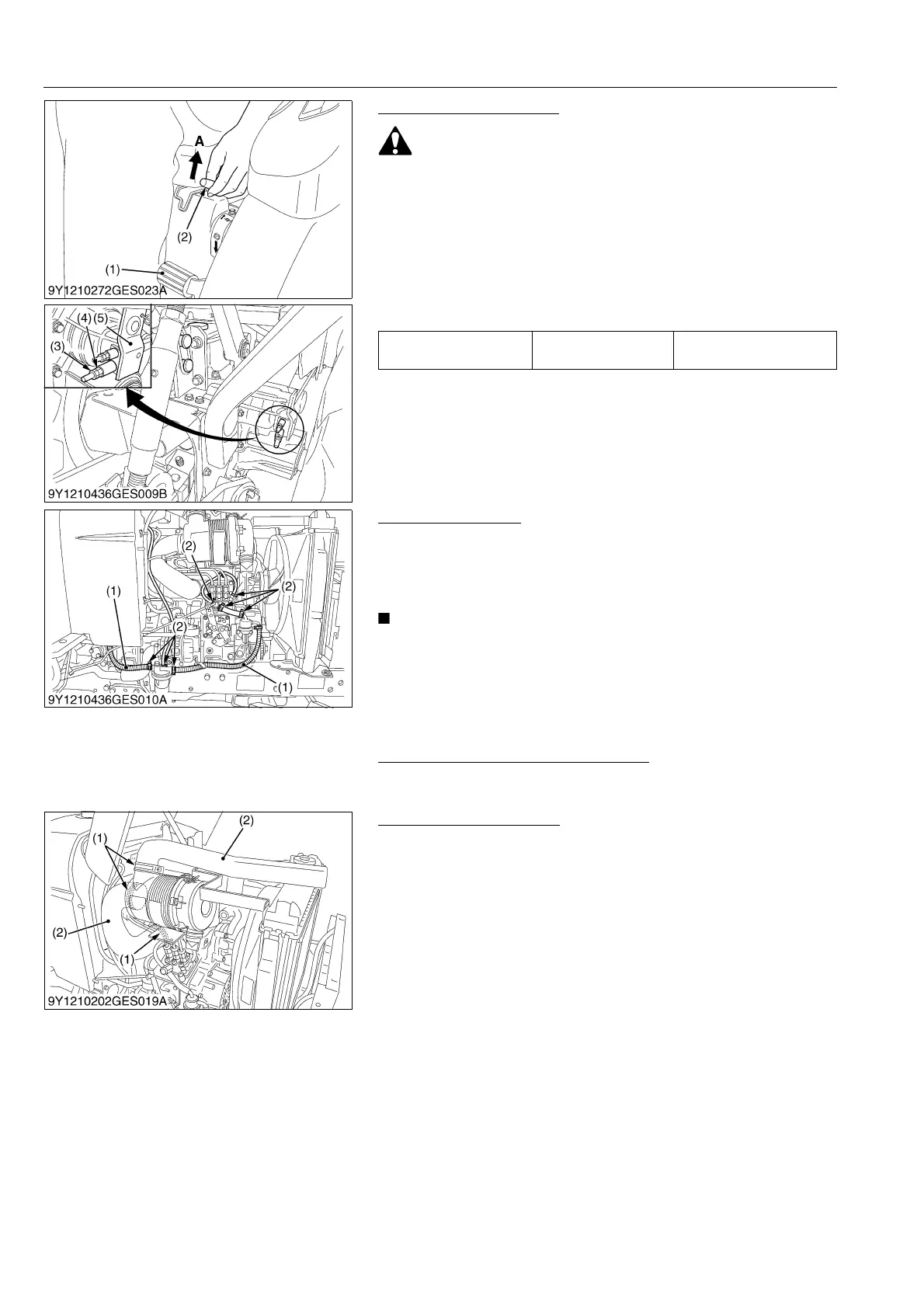

Adjusting Parking Brake
CAUTION
• Stop the engine and chock the wheels before checking
parking brake pedal.
1. Check free travel of the parking brake pedal (1).
2. If adjustment is needed, pull the parking release lever (2) to
release the parking brake, and then loosen the lock nut (3) and
the adjust nut (4).
3. Adjust the adjust nut (4) to leave no space between the collar
and the brake lever (5).
4. Retighten the lock nut (3).
9Y1210436GEG0008US0
Checking Fuel Line
1. Check to see that all fuel lines (1) and hose clamps (2) are tight
and not damaged.
2. If fuel lines (1) and hose clamps (2) are found worn or damaged,
replace or repair them at once.
NOTE
• If the fuel line is removed, be sure to properly bleed the fuel
system.
9Y1210436GEG0041US0
[5] CHECK POINTS OF EVERY 200 HOURS
Replacing Engine Oil Filter Cartridge
• See page G-15.
9Y1210436GEG0042US0
Checking Intake Air Line
1. Check to see that hoses (2) and hose clamps (1) are tight and
not damaged.
2. If hoses (2) and hose clamps (1) are found worn or damaged,
replace or repair them at once.
9Y1210436GEG0043US0
Parking brake free travel Factory specification
1 notch
(Ratchet sound 1)
(1) Parking Brake Pedal
(2) Parking Release Lever
(3) Lock Nut
(4) Adjust Nut
(5) Brake Lever
A: PULL
(1) Fuel Line (2) Hose Clamp
(1) Hose Clamp (2) Hose
KiSC issued 06, 2012 A
