wsm B2420 - Turn Signal Lamp and Hazard Lamp

ELECTRICAL SYSTEM
B2420, WSM
9-M16
[2] TURN SIGNAL LAMP AND HAZARD LAMP
Combination Switch
Combination switch consist of head lamp switch, turn
signal lamp switch and horn switch.
[Head Lamp Switch]
[Turn Signal Lamp Switch]
[Horn Switch]
9Y1210436ELM0011US0
Hazard Switch
This is a pushing type switch to turn on the hazard
lamp. The lamp (2) in the switch is lighted up by the
current from outside of the switch. The circuit in the
switch is shown below.
9Y1210436ELM0012US0

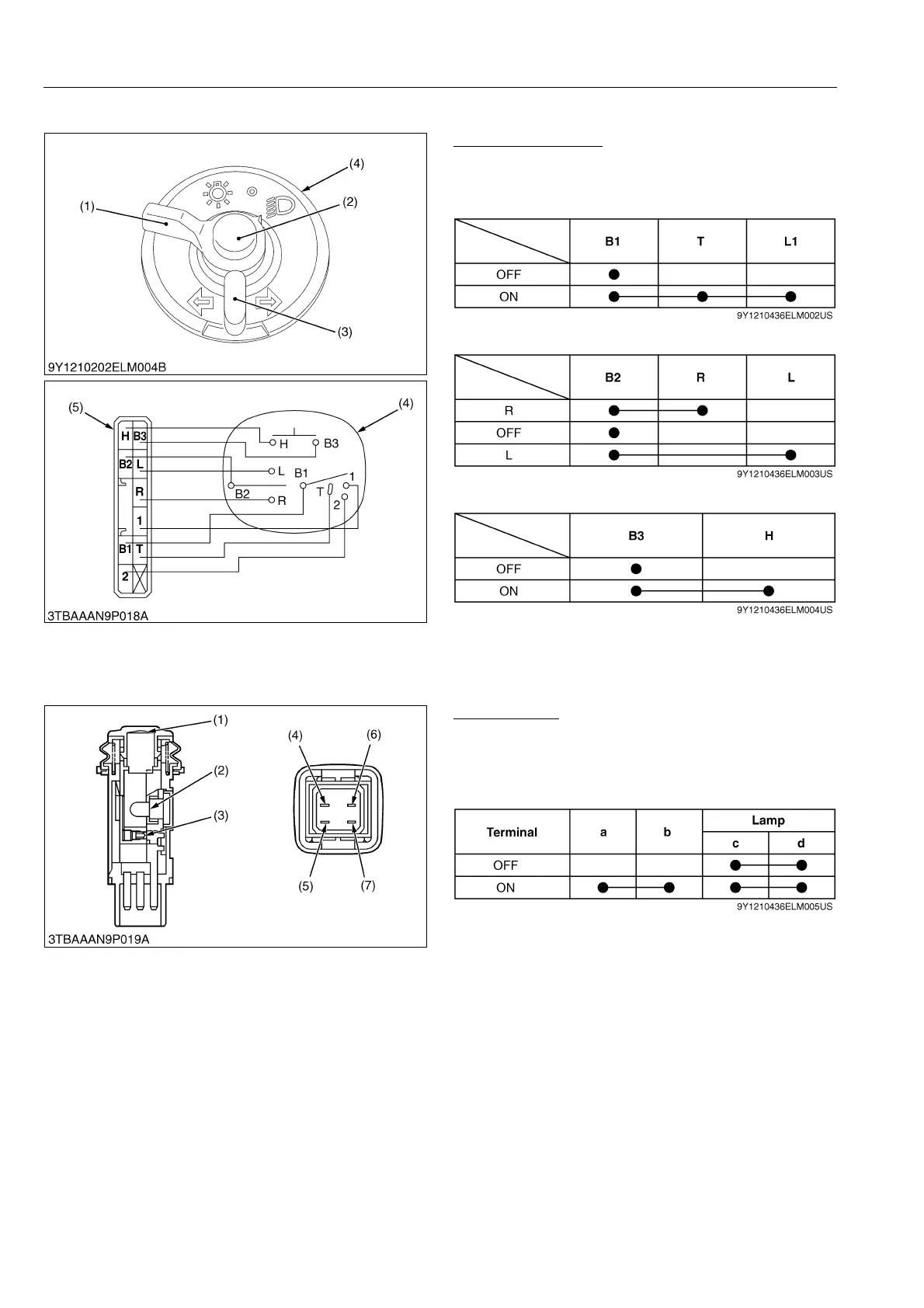

(1) Head Lamp Switch
(2) Horn Switch
(3) Turn Signal Lamp Switch
(4) Combination Switch
(5) Combination Switch
Connector
(1) Lens
(2) Lamp
(3) Contact Portion
(4) Terminal a
(5) Terminal b
(6) Terminal c
(7) Terminal d
