wsm B2420 - 2 Power Train for Travelling System; Main Gear Shift Section

TRANSMISSION
B2420, WSM
3-M2

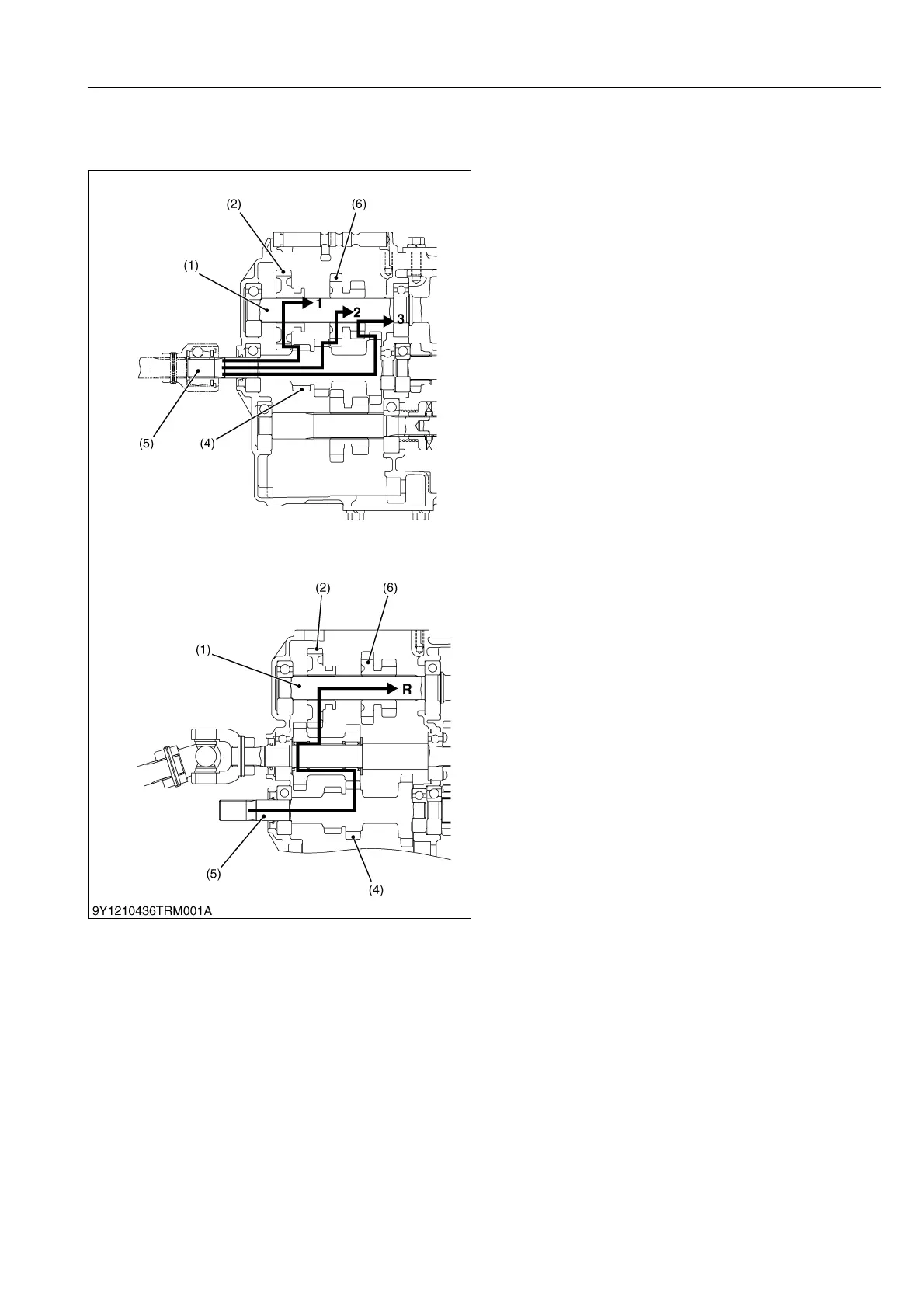

2. POWER TRAIN FOR TRAVELLING SYSTEM
[1] MAIN GEAR SHIFT SECTION
Q 1: 1st Speed
2nd Gear Shaft (5) →15T Gear (4) → 28T Gear (2)
→ Spline Boss → 4th Gear Shaft (1)
Q 2: 2nd Speed
2nd Gear Shaft (5) → 13T Gear (4) → 17T Gear (6)
→ Spline Boss → 4th Gear Shaft (1)
Q 3: 3rd Speed
2nd Gear Shaft (5) → 18T Gear (4) → 13T Gear (6)
→ Spline Boss → 4th Gear Shaft (1)
Q R: Reverse
2nd Gear Shaft (5) → 13T Gear (4) → 16T Gear (3)
→ 23T Gear (3) → 28T Shifter Gear (2) → Spline Boss
→4th Gear Shaft (1)
9Y1210436TRM0002US0
(1) 4th Gear Shaft
(2) 28T Shifter Gear
(3) 23T-16T Gear
(4) 15T-13T-18T Gear
(5) 2nd Gear Shaft
(6) 17T-13T Gear
KiSC issued 06, 2012 A
