[4] SAFETY SWITCH
Main Gear Shift Lever Switch and Rear PTO Switch
(Serial Number Below 33597)
Main gear shift lever switch and rear PTO switch are
connected with the series on the start circuit.
When both main gear shift lever and PTO gear shift
lever are on neutral position, the engine can be started.
Main gear shift lever switch is located on the main
gear shift cover. When the main gear shift lever is not in
neutral position, this switch is released in and electric
circuit is opened.
Rear PTO switch is located near the PTO gear shift
lever. When the PTO gear shift lever is not in neutral
position, the rear PTO switch is released in and electric
circuit is opened.
9Y1210436ELM0004US0

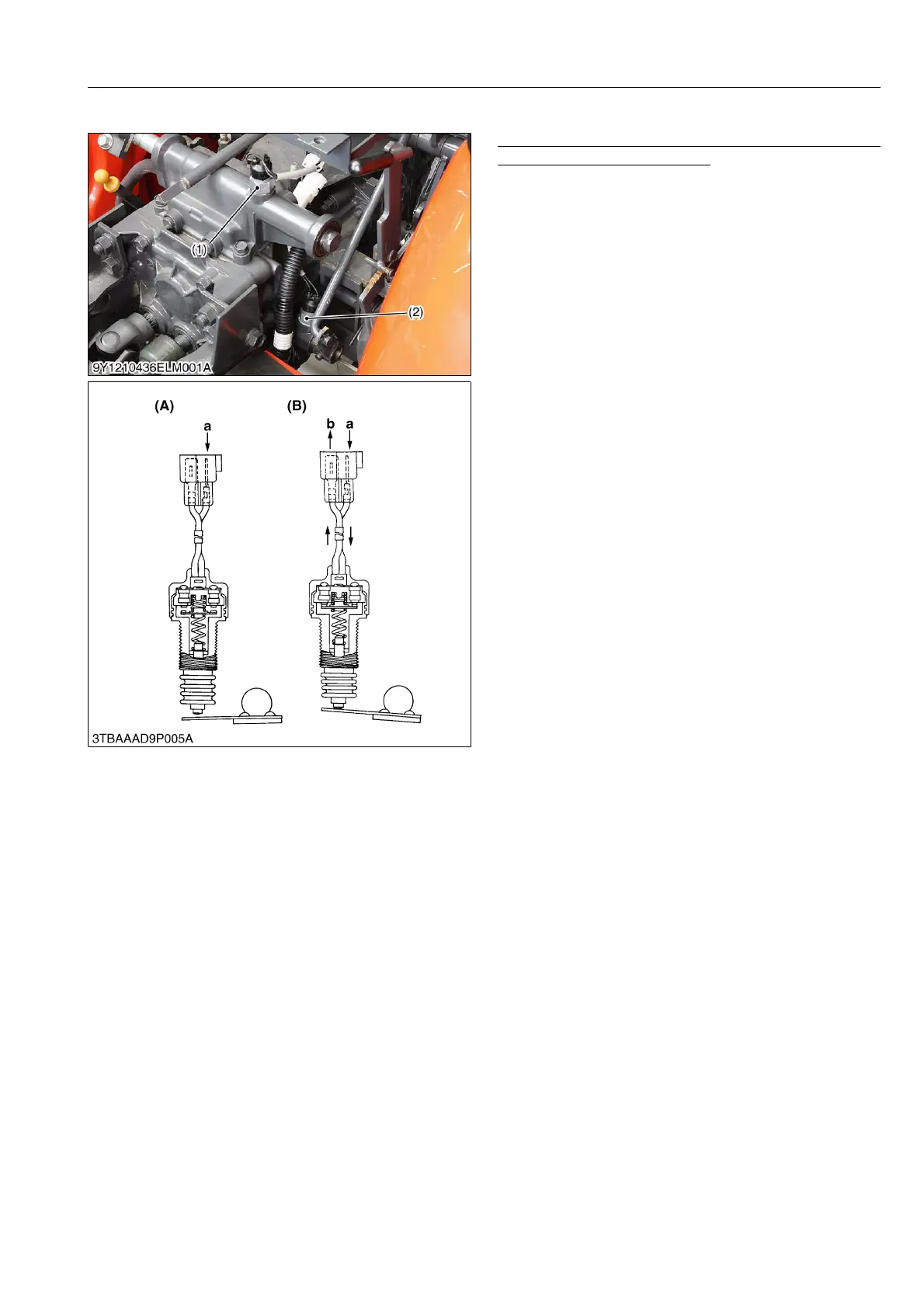

(1) Main Gear Shift Lever Switch
(2) Rear PTO Switch
(A) Released (when shifted)
(B) Depressed (when neutral)
a: From Starter Relay
b: GND (Frame Earth)
