HYDRAULIC SYSTEM
B2420, WSM
8-S7

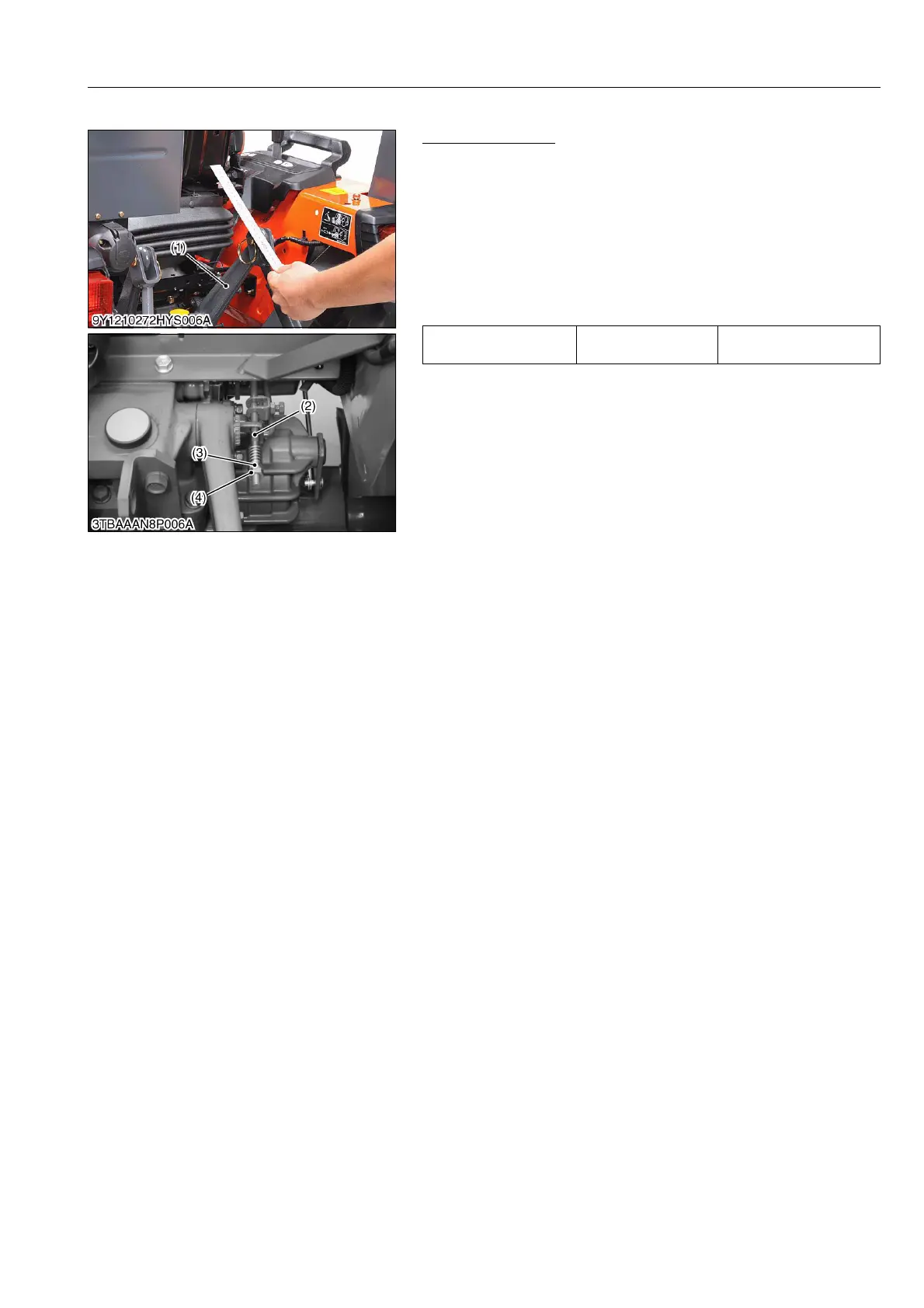

(3) Lift Arm
Lift Arm Free Play
1. Set the hydraulic control lever to the lowest position.
2. Start the engine, and set at the idling speed.
3. Move the hydraulic control lever to lift position until the lift arm
moves to the uppermost position.
4. Move the lift arm (1) to the upper end by hand and measure the
free play.
5. If the measurement is not within the factory specifications,
adjust the free play by changing the set position of lock nut (4).
6. Retighten the lock nut (4) securely.
9Y1210436HYS0007US0
Lift arm free play Factory specification
5 to 15 mm
0.20 to 0.59 in.
(1) Lift Arm
(2) Feedback Rod
(3) Adjusting Nut
(4) Lock Nut
To Next Page
